USB Audio System Recognition/Play Error: Wiring Diagram

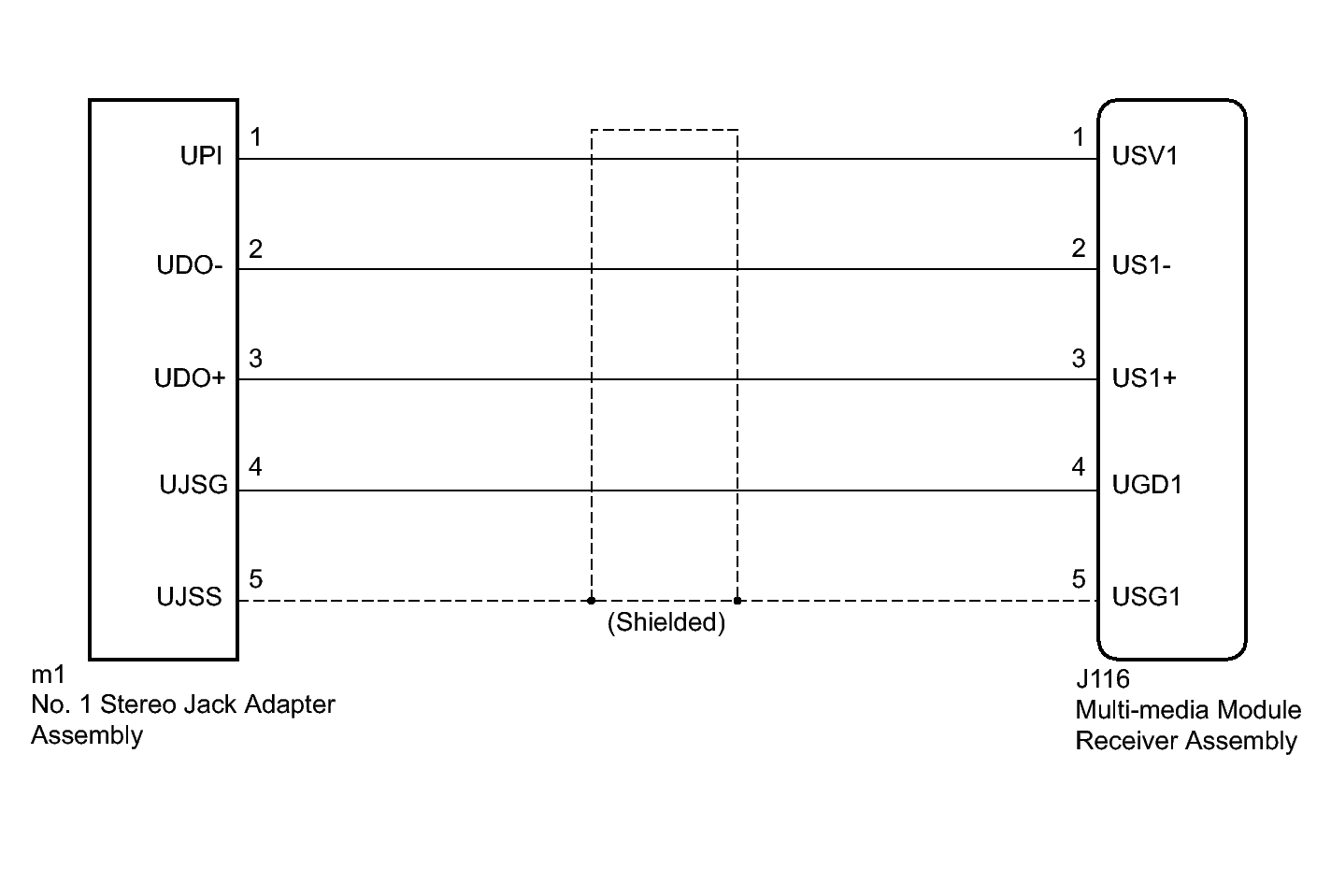

Fig 1: Identifying USB Audio System Wiring Diagram

GTY414944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
