Steering Pad Switch Circuit: Procedure

1. Disconnect the J114 multimedia module receiver assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J114-30 (SW1) - J114-32 (SWG)	No switch pushed	95 to 105 kΩ
   	Seek+ switch pushed	Below 2.5 Ω
   	Seek- switch pushed	312 to 345 Ω
   	Volume+ switch pushed	950 to 1050 Ω
   	Volume- switch pushed	2954 to 3265 Ω
   J114-31 (SW2) - J114-32 (SWG)	No switch pushed	95 to 105 kΩ
   	MODE switch pushed	Below 2.5 Ω
   	On hook switch pushed	312 to 345 Ω
   	Off hook switch pushed	950 to 1050 Ω
   	Voice switch pushed	2954 to 3265 Ω

NG → See step   2

OK → See step   4

1. Remove the steering pad switch assembly.
2. Measure the resistance according to the values in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   10 (AU1) - 8 (EAU)	No switch pushed	95 to 105 kΩ
   	Seek+ switch pushed	Below 2.5 Ω
   	Seek- switch pushed	312 to 345 Ω
   	Volume+ switch pushed	950 to 1050 Ω
   	Volume- switch pushed	2954 to 3265 Ω
   9 (AU2) - 8 (EAU)	No switch pushed	95 to 105 kΩ
   	MODE switch pushed	Below 2.5 Ω
   	On hook switch pushed	312 to 345 Ω
   	Off hook switch pushed	950 to 1050 Ω
   	Voice switch pushed	2954 to 3265 Ω

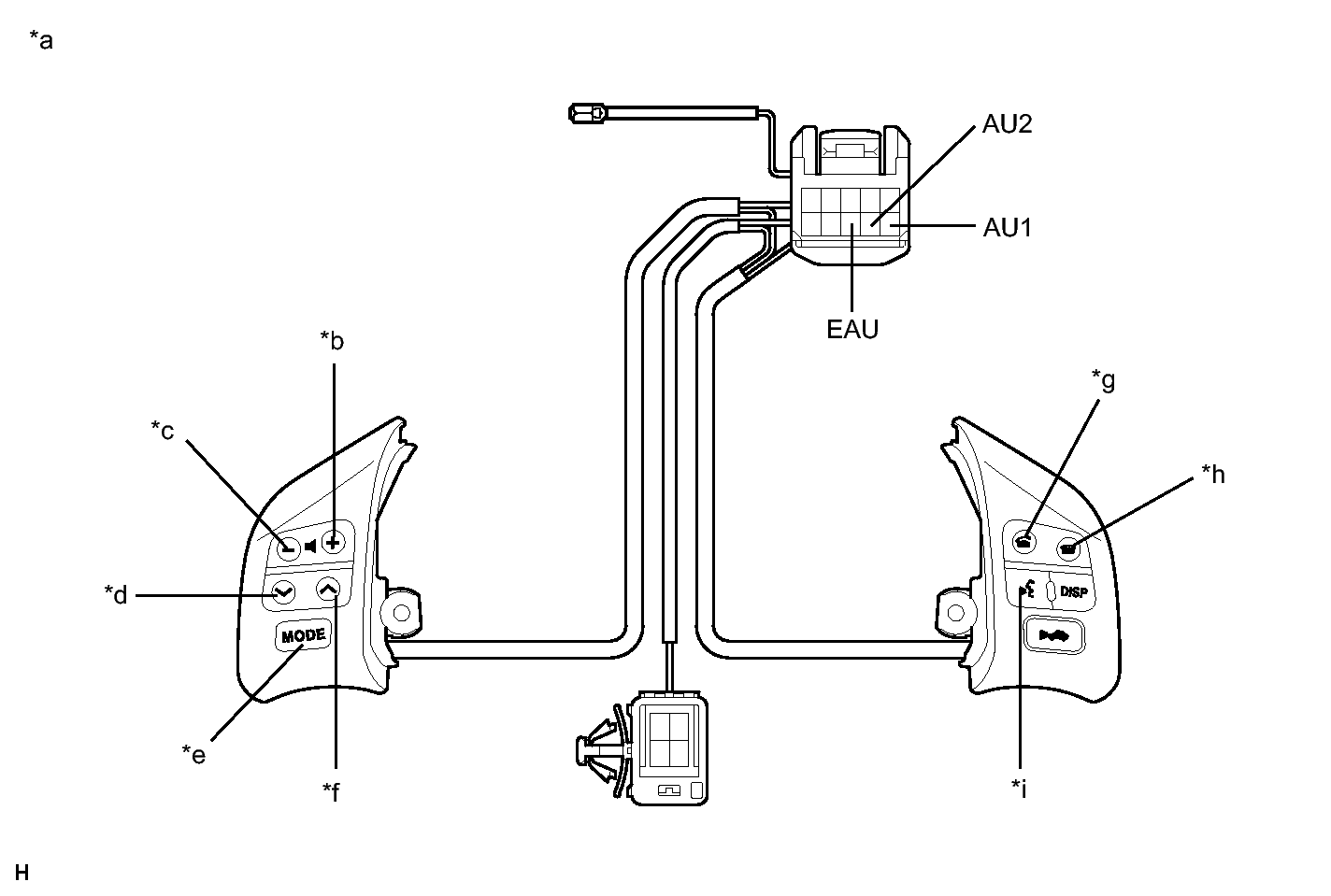

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Steering Pad Switch Assembly)	*b	Volume+
   *c	Volume-	*d	Seek-
   *e	MODE	*f	Seek+
   *g	Off hook	*h	On hook
   *i	Voice	-	-

NG → See step   6

OK: Go to next step

1. Remove the spiral cable sub-assembly.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z2-8 (EAU) - J24-4 (EAU)	Center	Below 1 Ω
   	2.5 rotations to the left
   	2.5 rotations to the right
   z2-10 (AU1) - J24-6 (AU1)	Center	Below 1 Ω
   	2.5 rotations to the left
   	2.5 rotations to the right
   z2-9 (AU2) - J24-5 (AU2)	Center	Below 1 Ω
   	2.5 rotations to the left
   	2.5 rotations to the right

3. After setting the spiral cable sub-assembly to the center position, rotate the spiral cable sub-assembly 2.5 times clockwise. Then while rotating the spiral cable sub-assembly 5 times counterclockwise, measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z2-8 (EAU) - J24-4 (EAU)	Always	Below 1 Ω
   z2-10 (AU1) - J24-6 (AU1)	Always	Below 1 Ω
   z2-9 (AU2) - J24-5 (AU2)	Always	Below 1 Ω

   NOTE:

   • The spiral cable sub-assembly is an important part of the SRS airbag system. Incorrect removal or installation of the spiral cable sub-assembly may prevent the airbag from deploying. Refer to the references shown in the brackets.
   • As the spiral cable sub-assembly may break, do not rotate the spiral cable sub-assembly more than the specified amount.

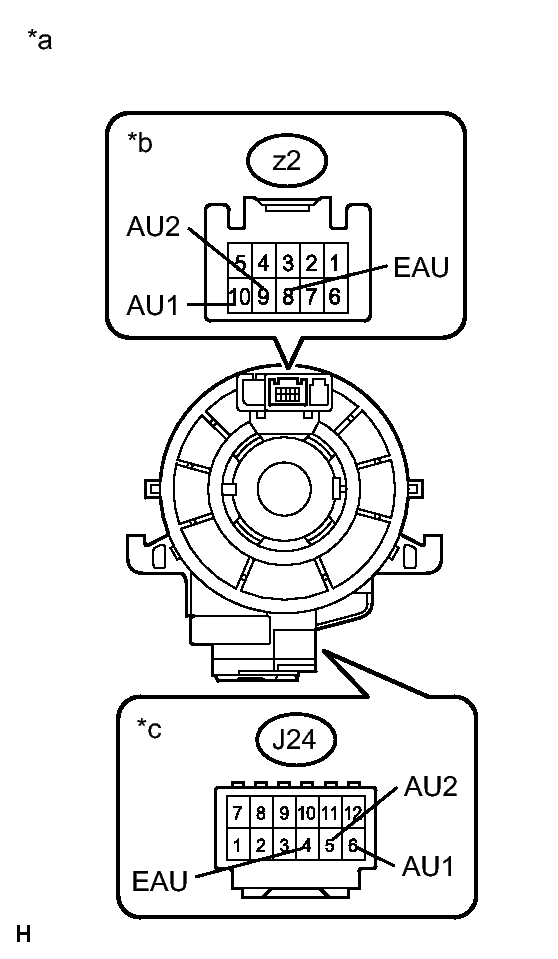

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Spiral Cable Sub-assembly)
   *b	Steering Pad Switch Assembly Side
   *c	Vehicle Side

NG → See step   5

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - MULTIMEDIA MODULE RECEIVER ASSEMBLY)
