Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Wiring Diagram

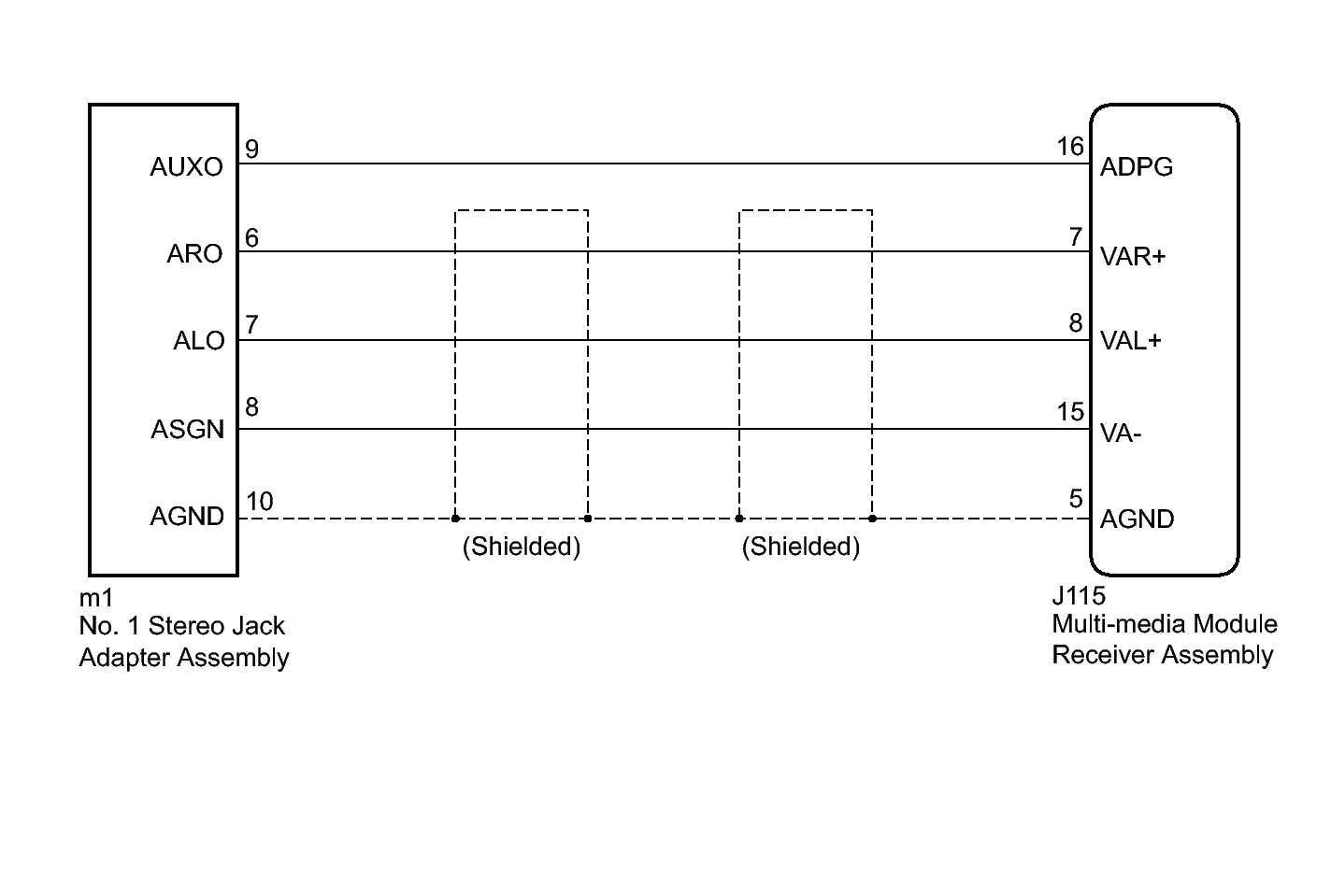

Fig 1: Identifying Sound Signal Circuit Wiring Diagram

GTY399402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
