Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Procedure

1. Disconnect the J115 multimedia module receiver assembly connector.
2. Disconnect the m1 No. 1 stereo jack adapter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J115-16 (ADPG) - m1-9 (AUXO)	Always	Below 1 Ω
   J115-7 (VAR+) - m1-6 (ARO)	Always	Below 1 Ω
   J115-8 (VAL+) - m1-7 (ALO)	Always	Below 1 Ω
   J115-15 (VA-) - m1-8 (ASGN)	Always	Below 1 Ω
   J115-5 (AGND) - m1-10 (AGND)	Always	Below 1 Ω
   J115-16 (ADPG) - Body ground	Always	10 kΩ or higher
   J115-7 (VAR+) - Body ground	Always	10 kΩ or higher
   J115-8 (VAL+) - Body ground	Always	10 kΩ or higher
   J115-15 (VA-) - Body ground	Always	10 kΩ or higher
   J115-5 (AGND) - Body ground	Always	10 kΩ or higher

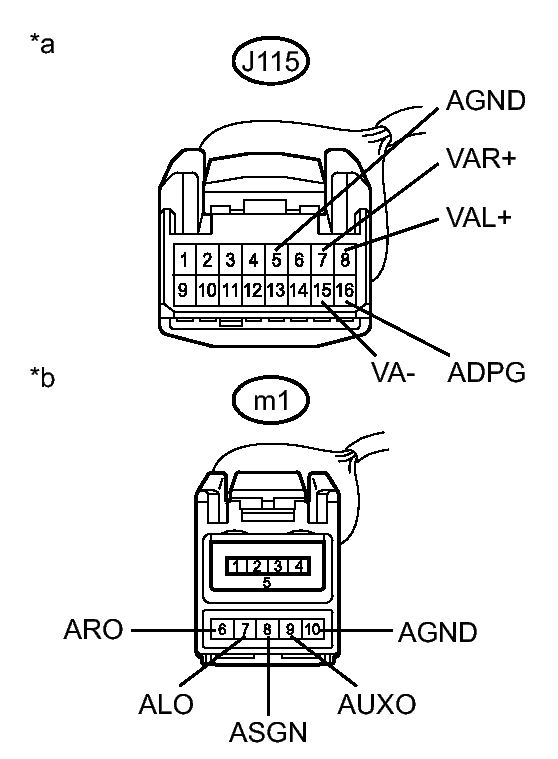

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multimedia Module Receiver Assembly)
   *b	Front view of wire harness connector (to No. 1 Stereo Jack Adapter Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
