Portable Player cannot be Connected Manually/Automatically: Procedure

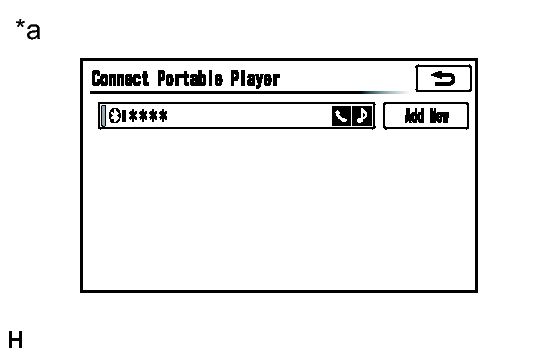

1. Display the "Connect Portable Player" screen.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Check if the portable player is registered as a connected device.
   NOTE: If a cellular phone is used as a portable player, it must be registered independently from the registration that is performed for the hands-free system.

   HINT:

   Only 5 portable players can be registered.

   Result

   Result	Proceed to
   The portable player is registered as a connected device.	A
   The portable player is not registered as a connected device.	B

   TEXT IN ILLUSTRATION



   *a

   Example

B → REGISTER PORTABLE PLAYER AS CONNECTED DEVICE

A: Go to next step

1. Check the connection condition between the portable player and multimedia module receiver assembly.

   HINT:

   The portable player cannot be connected under any of the following conditions:

   • The portable player is connected to another device.
   • The multimedia module receiver assembly has cleared the portable player registration.
   • The portable player is off.

   Result

   Result	Proceed to
   The portable player cannot be connected automatically.	A
   The portable player cannot connect manually.	B

B → See step   4

A: Go to next step

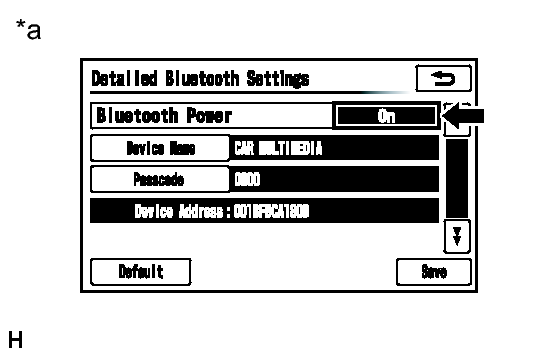

1. Display the "Detailed Bluetooth Settings" screen.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Check automatic connection settings of the "Bluetooth" audio.
   1. Check if "On" is displayed for "Bluetooth Power" on the "Detailed Bluetooth Settings" screen.

      OK

      "On" is displayed for "Bluetooth Power".

      TEXT IN ILLUSTRATION



      *a

      Example

NG → CHANGE "Bluetooth" POWER TO "On"

OK: Go to next step

1. Check the status of the portable player.
   1. Check that the portable player is not in standby mode.
   2. Check that the portable player is not connected to another device (headphones etc.).

      OK

      The portable player is not in standby mode and not connected to another device (headphones etc.).

NG → TAKE PORTABLE PLAYER OUT OF STANDBY MODE AND DISCONNECT OTHER DEVICES (HEADPHONES etc.)

OK: Go to next step

1. Check if the portable player can be connected manually/automatically on another "Bluetooth" audio compatible vehicle of the same model.

   OK

   The portable player can be connected manually/automatically.

NG → PORTABLE PLAYER IS NOT COMPATIBLE

OK: Go to next step

1. Remove additional devices which use radio waves.
2. Check if the portable player can be connected manually/automatically.

   OK

   The portable player can be connected manually/automatically.

NG → See step   7

OK → END
