Microphone Circuit between Microphone and Navigation Receiver Assembly: Wiring Diagram

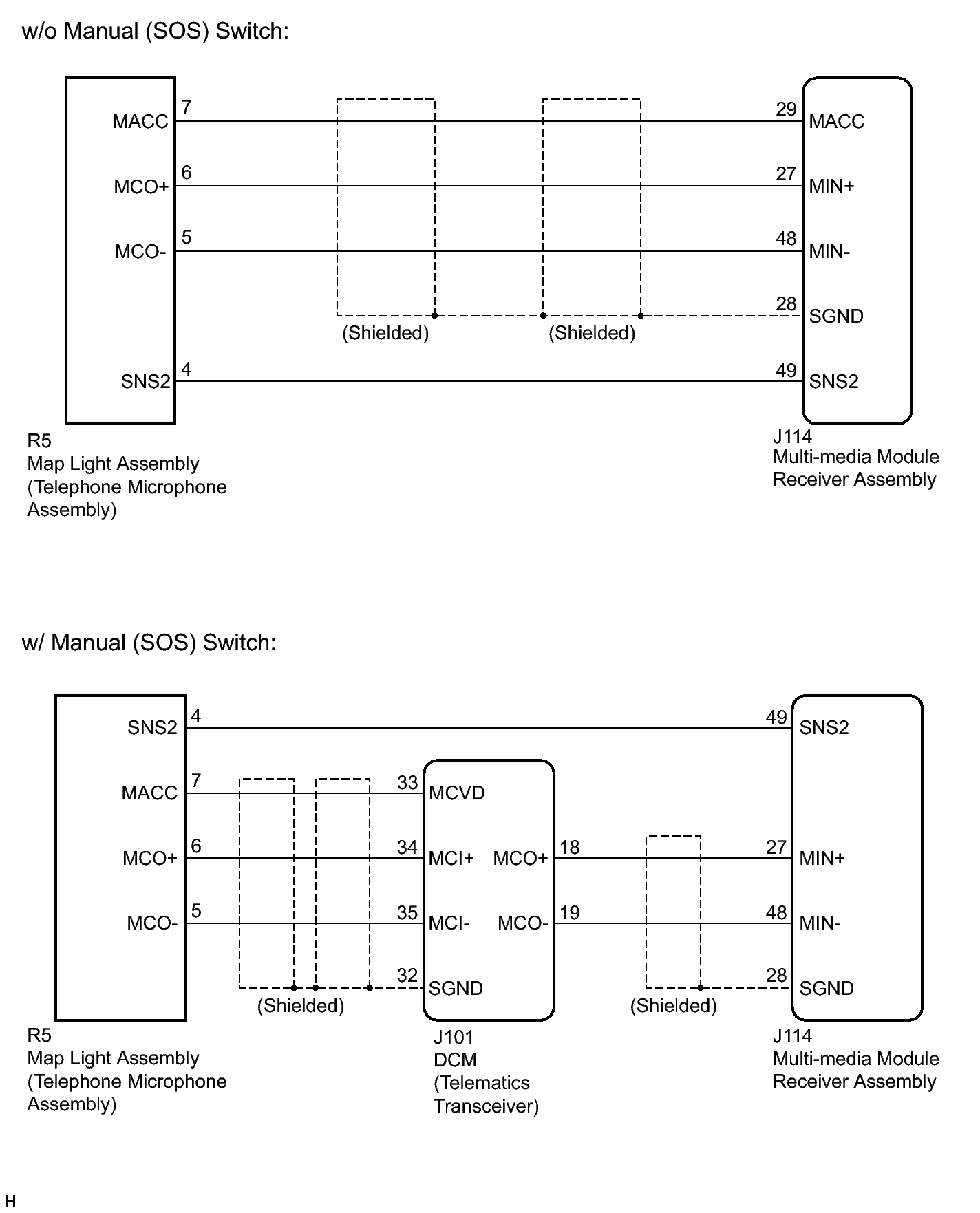

Fig 1: Identifying Microphone Circuit Wiring Diagram

GTY408629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
