Microphone Circuit between Microphone and Navigation Receiver Assembly: Procedure

  1. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      w/o Manual (SOS) switch A
      w/ Manual (SOS) switch B

    B → See step   4

    A: Go to next step

  2. CHECK HARNESS AND CONNECTOR (MULTIMEDIA MODULE RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))
    1. Disconnect the J114 multimedia module receiver assembly connector.
    2. Disconnect the R5 map light assembly (telephone microphone assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J114-29 (MACC) - R5-7 (MACC) Always Below 1 Ω
      J114-27 (MIN+) - R5-6 (MCO+) Always Below 1 Ω
      J114-48 (MIN-) - R5-5 (MCO-) Always Below 1 Ω
      J114-49 (SNS2) - R5-4 (SNS2) Always Below 1 Ω
      J114-29 (MACC) - Body ground Always 10 kΩ or higher
      J114-27 (MIN+) - Body ground Always 10 kΩ or higher
      J114-48 (MIN-) - Body ground Always 10 kΩ or higher
      J114-28 (SGND) - Body ground Always 10 kΩ or higher
      J114-49 (SNS2) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT MULTIMEDIA MODULE RECEIVER ASSEMBLY
    1. Reconnect the J114 multimedia module receiver assembly connector.
    2. Reconnect the R5 map light assembly (telephone microphone assembly) connector.
    3. Measure the voltage according to the value(s) in the table below.

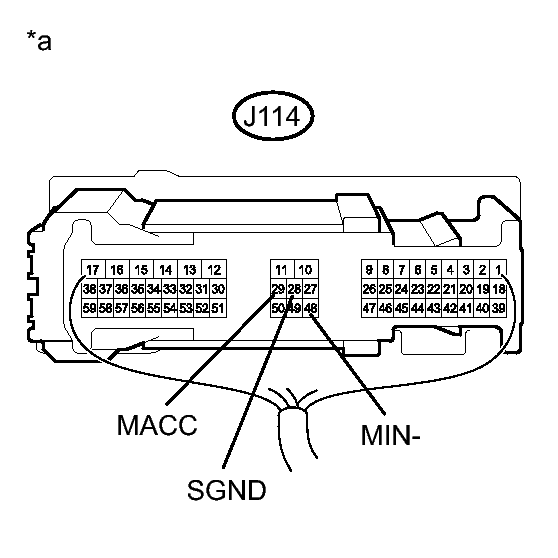

      GTY416588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Condition Specified Condition
      J114-29 (MACC) - Body ground Engine switch on (ACC) 4 to 6 V
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J114-28 (SGND) - Body ground Always Below 1 Ω
      J114-48 (MIN-) - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Multimedia Module Receiver Assembly)
    5. Proceed to the next step based on the inspection result.

      Result

      Result Proceed to
      NG A
      OK B

    B → See step   9

    A → See step   14

  4. CHECK HARNESS AND CONNECTOR (MULTIMEDIA MODULE RECEIVER ASSEMBLY - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))
    1. Disconnect the J114 multimedia module receiver assembly connector.
    2. Disconnect the R5 map light assembly (telephone microphone assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J114-49 (SNS2) - R5-4 (SNS2) Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (MULTIMEDIA MODULE RECEIVER ASSEMBLY - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the J114 multimedia module receiver assembly connector.
    2. Disconnect the J101 DCM (telematics transceiver) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J114-27 (MIN+) - J101-18 (MCO+) Always Below 1 Ω
      J114-48 (MIN-) - J101-19 (MCO-) Always Below 1 Ω
      J114-27 (MIN+) - Body ground Always 10 kΩ or higher
      J114-48 (MIN-) - Body ground Always 10 kΩ or higher
      J114-28 (SGND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))
    1. Disconnect the J101 DCM (telematics transceiver) connector.
    2. Disconnect the R5 map light assembly (telephone microphone assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J101-33 (MCVD) - R5-7 (MACC) Always Below 1 Ω
      J101-34 (MCI+) - R5-6 (MCO+) Always Below 1 Ω
      J101-35 (MCI-) - R5-5 (MCO-) Always Below 1 Ω
      J101-33 (MCVD) - Body ground Always 10 kΩ or higher
      J101-34 (MCI+) - Body ground Always 10 kΩ or higher
      J101-35 (MCI-) - Body ground Always 10 kΩ or higher
      J101-32 (SGND) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  7. INSPECT MULTIMEDIA MODULE RECEIVER ASSEMBLY
    1. Disconnect the J101 DCM (telematics transceiver) connector.
    2. Reconnect the J114 multimedia module receiver assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

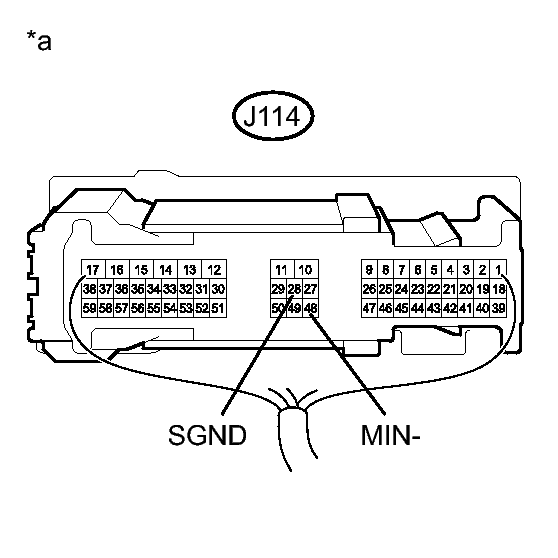

      GTY417836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      J114-28 (SGND) - Body ground Always Below 1 Ω
      J114-48 (MIN-) - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Multimedia Module Receiver Assembly)

    NG → See step   12

    OK: Go to next step

  8. INSPECT DCM (TELEMATICS TRANSCEIVER)
    1. Reconnect the J101 DCM (telematics transceiver) connector.
    2. Measure the voltage according to the value(s) in the table below.

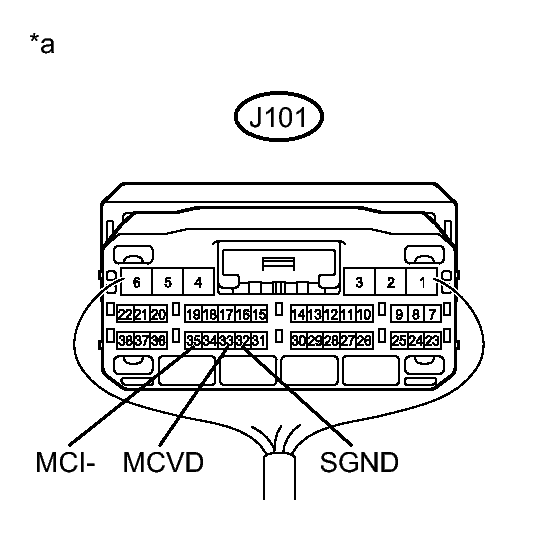

      GTY401502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Condition Specified Condition
      J101-33 (MCVD) - Body ground Engine switch on (ACC) 4 to 6 V
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J101-35 (MCI-) - Body ground Always Below 1 Ω
      J101-32 (SGND) - Body ground Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (DCM (Telematics Transceiver))

    NG → See step   15

    OK: Go to next step

  9. INSPECT MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)
    1. Remove the map light assembly (telephone microphone assembly).
    2. Measure the resistance according to the value(s) in the table below.

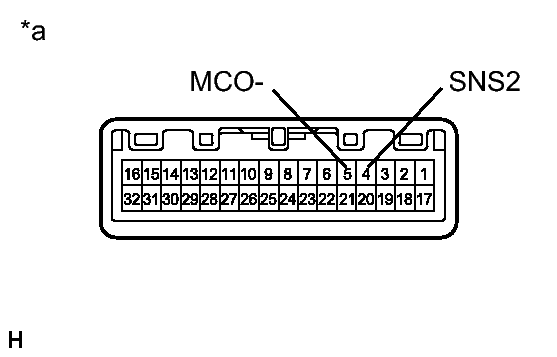

      GTY410109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      5 (MCO-) - 4 (SNS2) Always Below 1 Ω
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Map Light Assembly (Telephone Microphone Assembly))

    NG → See step   11

    OK: Go to next step

  10. INSPECT MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY)
    1. Reconnect the J114 multimedia module receiver assembly connector.
    2. Reconnect the J101 DCM (telematics transceiver) connector (w/ Manual (SOS) Switch).
    3. Reconnect the R5 map light assembly (telephone microphone assembly) connector.
    4. Turn the engine switch on (ACC).
    5. Connect an oscilloscope to terminals 6 (MCO+) and 5 (MCO-) of the R5 map light assembly (telephone microphone assembly) connector.

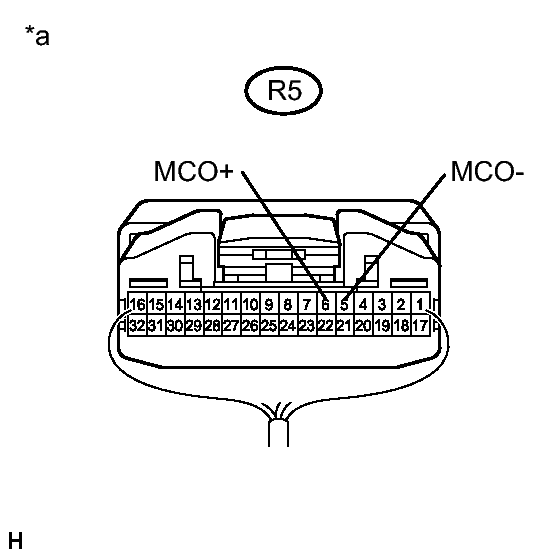

      GTY409387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Check the waveform of the telephone microphone assembly using the oscilloscope.

      Result

      Result Proceed to
      A waveform synchronized with the voice input to the map light assembly (telephone microphone assembly) is output A
      A waveform synchronized with the voice input to the map light assembly (telephone microphone assembly) is not output B
      TEXT IN ILLUSTRATION

      *a Component with harness connected
      (Map Light Assembly (Telephone Microphone Assembly))

    B → See step   11

    A → See step   13

  11. REPLACE TELEPHONE MICROPHONE ASSEMBLY
    1. Replace the telephone microphone assembly. Refer to REMOVAL [08/2012 - ] .
    2. Check if the same malfunction recurs.

      Result

      Result Proceed to
      Malfunction does not recur
      (returns to normal)      		 A
      Malfunction recurs B

    B → See step   16

    A → END

  12. REPLACE MULTIMEDIA MODULE RECEIVER ASSEMBLY. Refer to  REMOVAL [08/2012 - ]
  13. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2012 - ]
  14. REPLACE MULTIMEDIA MODULE RECEIVER ASSEMBLY. Refer to  REMOVAL [08/2012 - ]
  15. REPLACE DCM (TELEMATICS TRANSCEIVER). Refer to  REMOVAL [08/2012 - ]
  16. REPLACE MAP LIGHT ASSEMBLY. Refer to  REMOVAL [08/2012 - ]
