Infotainment
>>
Navigation System (Diagnostic Codes & Circuit Tests)
>>
Navigation System
>>
Circuit Tests
>>
Display does not Dim when Light Control Switch is Turned ON
>>
Wiring Diagram

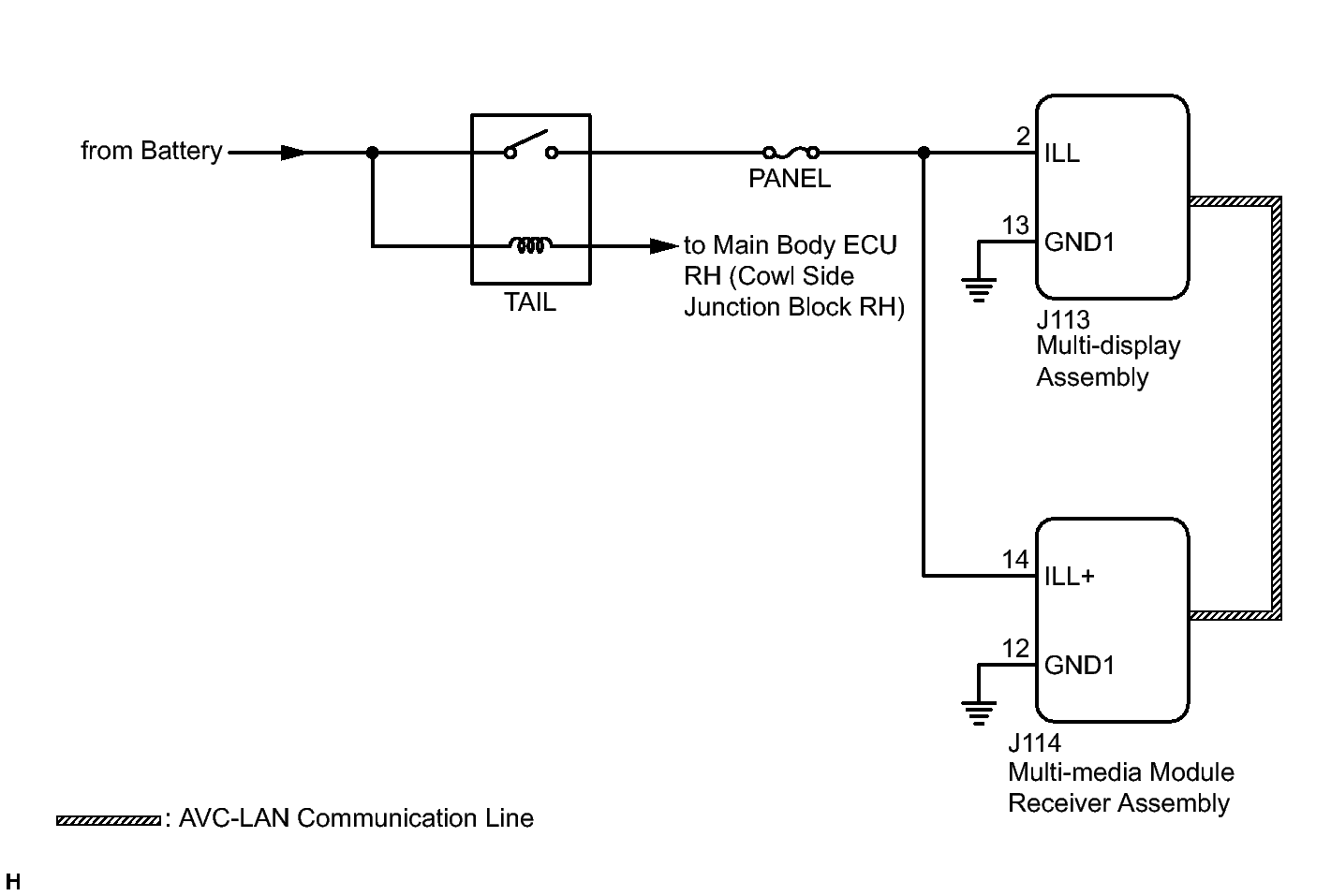

Display does not Dim when Light Control Switch is Turned ON: Wiring Diagram
Fig 1: Identifying Light Control Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
