Display does not Dim when Light Control Switch is Turned ON: Procedure
- CONFIRM SYMPTOMS
- Check the symptoms that occur by viewing the display.
Result
Result Proceed to There is a delay until the display dims after the navigation system is activated with the light control switch in the tail or head position. A The display dims for a moment and then becomes bright after the navigation system is activated with the light control switch in the tail or head position. B When the light control switch is set to the tail or head position, the display dims but does not switch to the night screen. B When the light control switch is set to the tail or head position, the display neither dims nor switches to the night screen. C HINT:
- When the navigation system is activated with the light control switch in the tail or head position, before AVC-LAN communication is established, the multi-display assembly dims the display according to the illumination signal received via a direct line.
- After AVC-LAN communication is established, the multi-display assembly dims the display according to a dimmer signal sent via AVC-LAN communication.
- The multimedia module receiver assembly switches between the daytime screen and night screen on the multi-display assembly according to the illumination signal input.
B → See step 3
C → See step 9
A: Go to next step
- Check the symptoms that occur by viewing the display.
- CHECK HARNESS AND CONNECTOR (ILLUMINATION SIGNAL)
- Disconnect the J113 multi-display assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J113-13 (GND1) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition J113-2 (ILL) - J113-13 (GND1) Light control switch in tail or head position 11 to 14 V
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 8
- CHECK IMAGE QUALITY SETTING
- Display the "Display" screen.
- Turn the light control switch to the tail or head position.

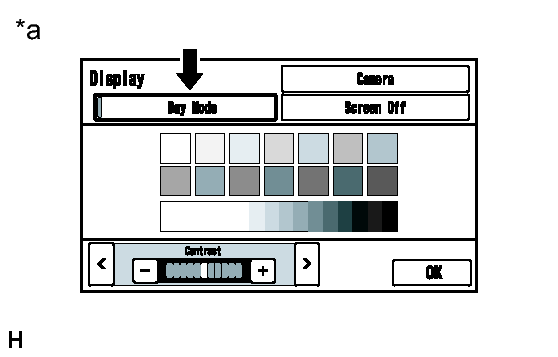

- Check if "Day Mode" setting on the display adjustment screen is on.
Result
Result Proceed to "Day Mode" setting is on A "Day Mode" setting is off B TEXT IN ILLUSTRATION*a Example
B → See step 4
A → TURN "Day Mode" SETTING OFF
- Display the "Display" screen.
- CHECK VEHICLE SIGNAL (OPERATION CHECK)

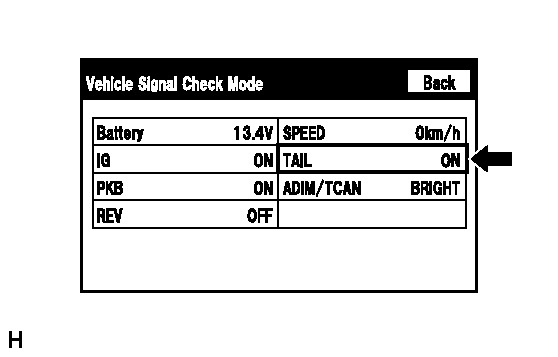

- Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal in Operation Check. Refer to OPERATION CHECK [08/2012 - ]
.
- Check that the display changes between ON and OFF according to the light control switch operation.
OK
Light Control Switch Display Tail or head ON Off OFF HINT:
The display is updated once per second. It is normal for the display to lag behind the actual switch operation.
NG → See step 5
OK → See step 6
- Enter the "Vehicle Signal Check Mode" screen. Refer to Check Vehicle Signal in Operation Check. Refer to OPERATION CHECK [08/2012 - ]
.
- CHECK HARNESS AND CONNECTOR (ILLUMINATION SIGNAL)
- Disconnect the J114 multimedia module receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J114-12 (GND1) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition J114-14 (ILL+) - J114-12 (GND1) Light control switch in tail or head position 11 to 14 V
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 7
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [08/2012 - ]
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [08/2012 - ]
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [08/2012 - ]
- GO TO LIGHTING SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2012 - ]
