DTC B1278: Combination Switch ECU Communication Stop: Procedure
- CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER SWITCH ASSEMBLY - BATTERY AND BODY GROUND)
- Disconnect the J26 connector.
- Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition J26-1 (B) - Body ground Always 11 to 14 V J26-2 (IG) - Body ground Engine switch on (IG) 11 to 14 V Standard Resistance

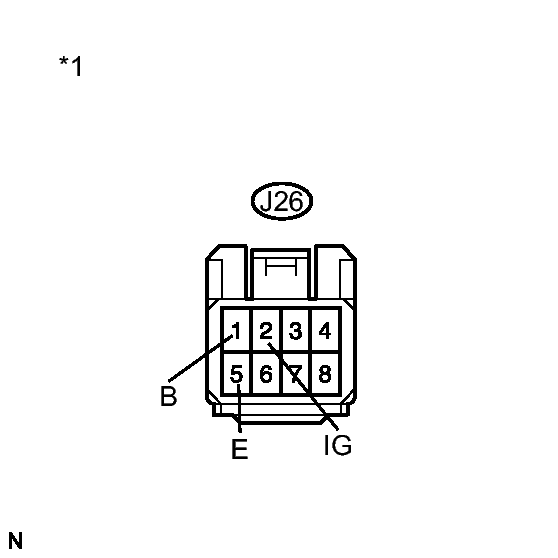

Tester Connection Condition Specified Condition J26-5 (E) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Windshield Wiper Switch Assembly)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the J26 connector.
- CHECK HARNESS AND CONNECTOR (COMMUNICATION LINE)
- Disconnect the J76 and J55 connectors.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

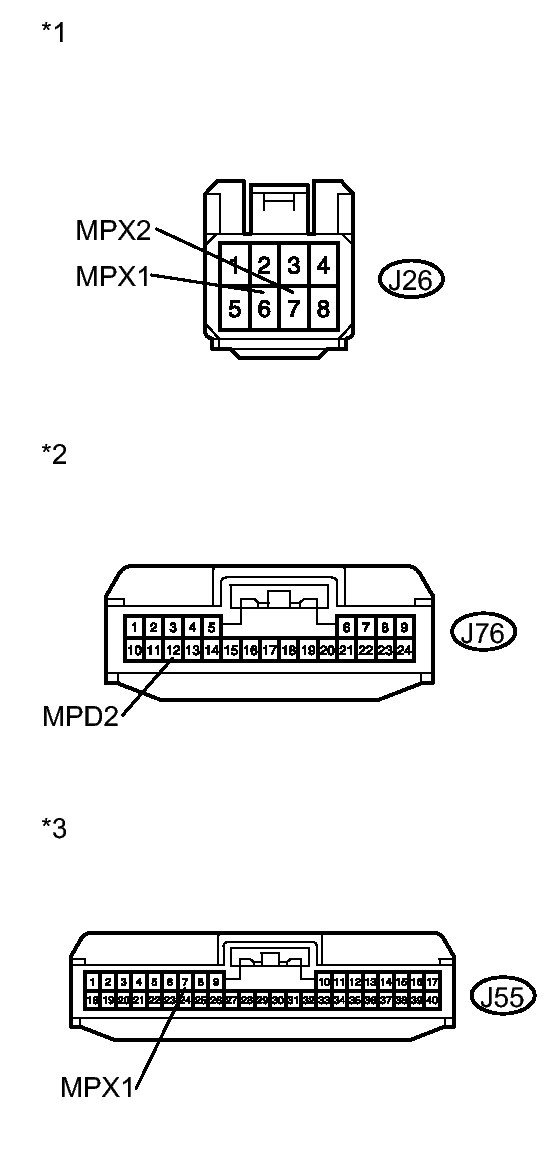

Tester Connection Condition Specified Condition J26-6 (MPX1) - J76-12 (MPD2) Always Below 1 Ω J26-7 (MPX2) - J55-7 (MPX1) Always Below 1 Ω TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Windshield Wiper Switch Assembly)*2 Front view of wire harness connector
(to Gateway ECU)*3 Front view of wire harness connector
(to Power Source Control ECU)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the J76 and J55 connectors.
- REPLACE WINDSHIELD WIPER SWITCH ASSEMBLY
- Replace the windshield wiper switch assembly. Refer to REMOVAL [08/2012 - ] .
NEXT: Go to next step
- CHECK DTC OUTPUT
- Clear the DTC. Refer to DTC CHECK / CLEAR [08/2012 - ] .
- Recheck for DTCs.
OK
DTC B1278 is not output.
NG → See step 5
OK → END (WINDSHIELD WIPER SWITCH ASSEMBLY WAS DEFECTIVE)
- REPLACE GATEWAY ECU. Refer to REMOVAL [08/2012 - ]
