Front Passenger Side Door Entry Unlock Function does not Operate: Wiring Diagram

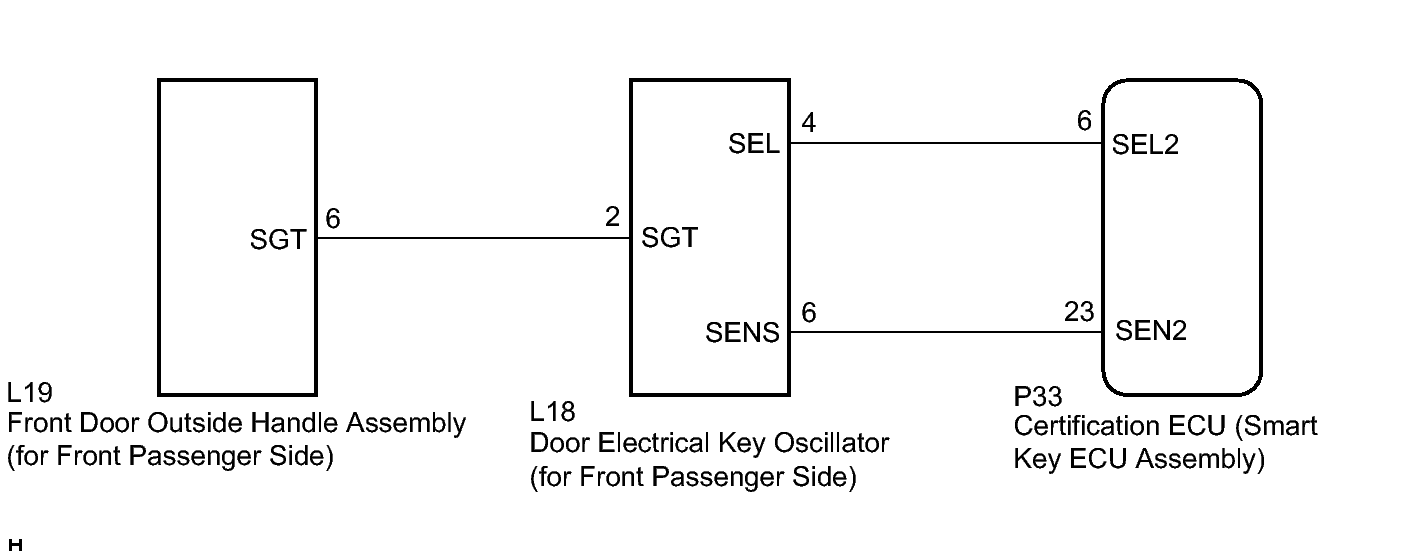

Fig 1: Identifying Front Passenger Side Door Entry Unlock Wiring Diagram
GTY407972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
