Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

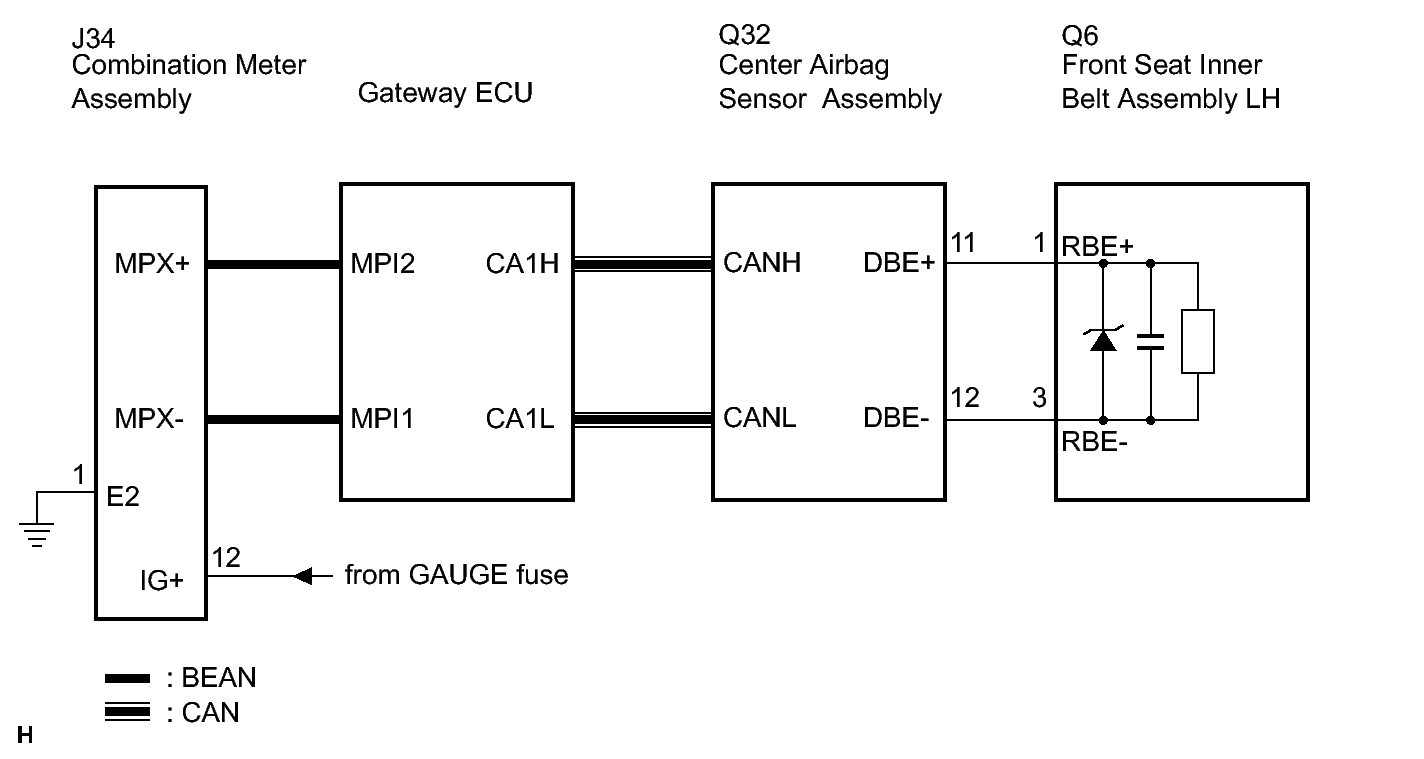

Fig 1: Seat Belt Warning System Wiring Diagram

GTY265008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
