DTC P0111: Intake Air Temperature Sensor Gradient Too High: Wiring Diagram

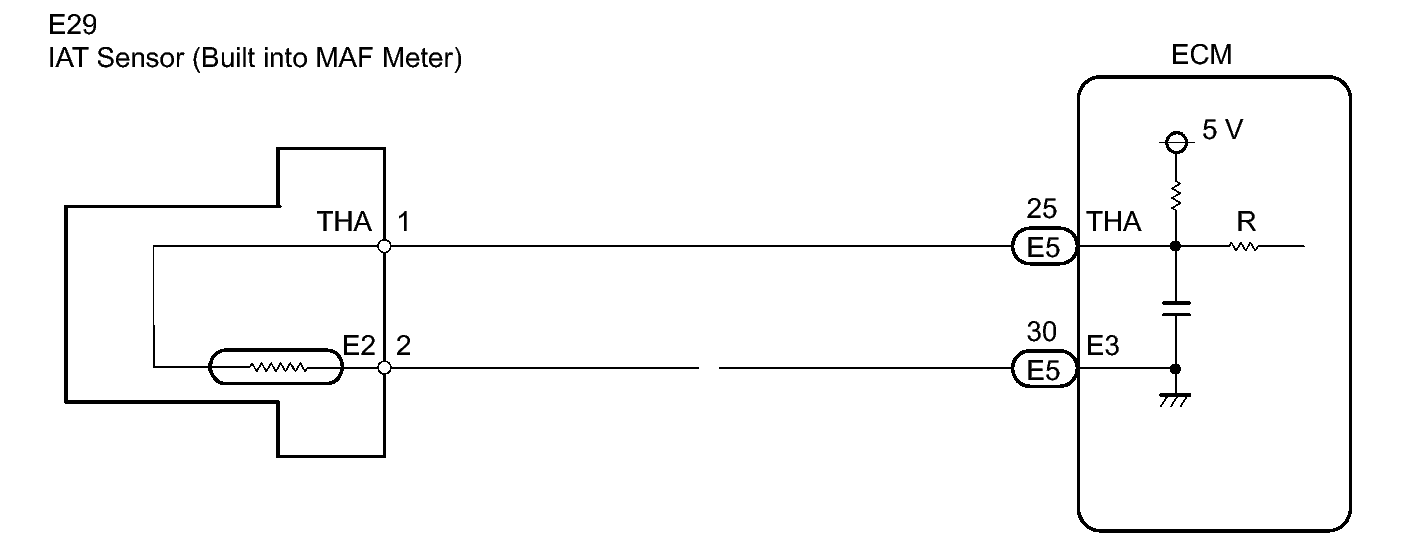

Fig 1: Identifying IAT Sensor And ECM Wiring Diagram

GTY393946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
