System Diagram [08/2012 - ]

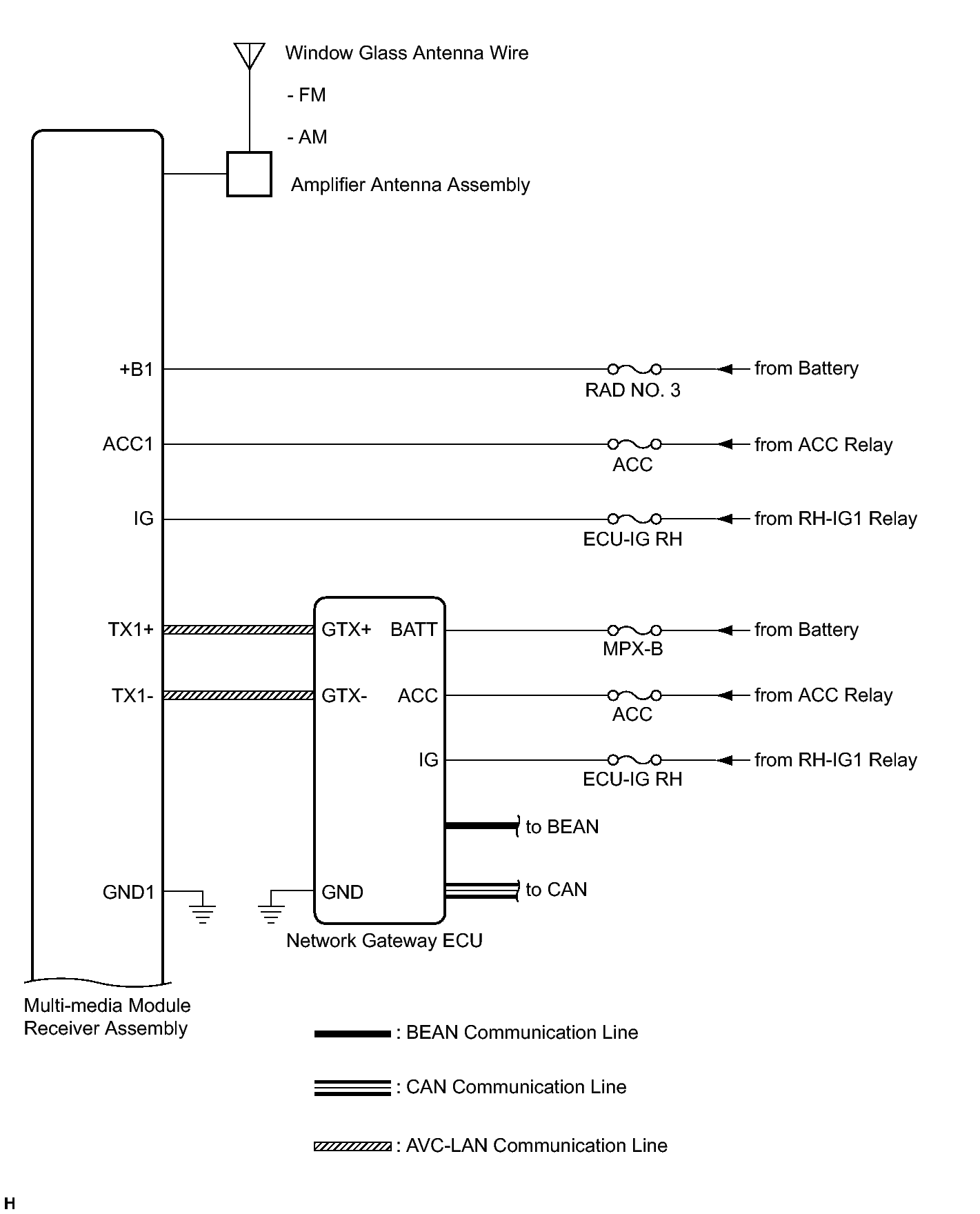

Fig 1: Audio / Video System Wiring Diagram (W/ Multi-Display) (1 Of 4)
GTY409761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

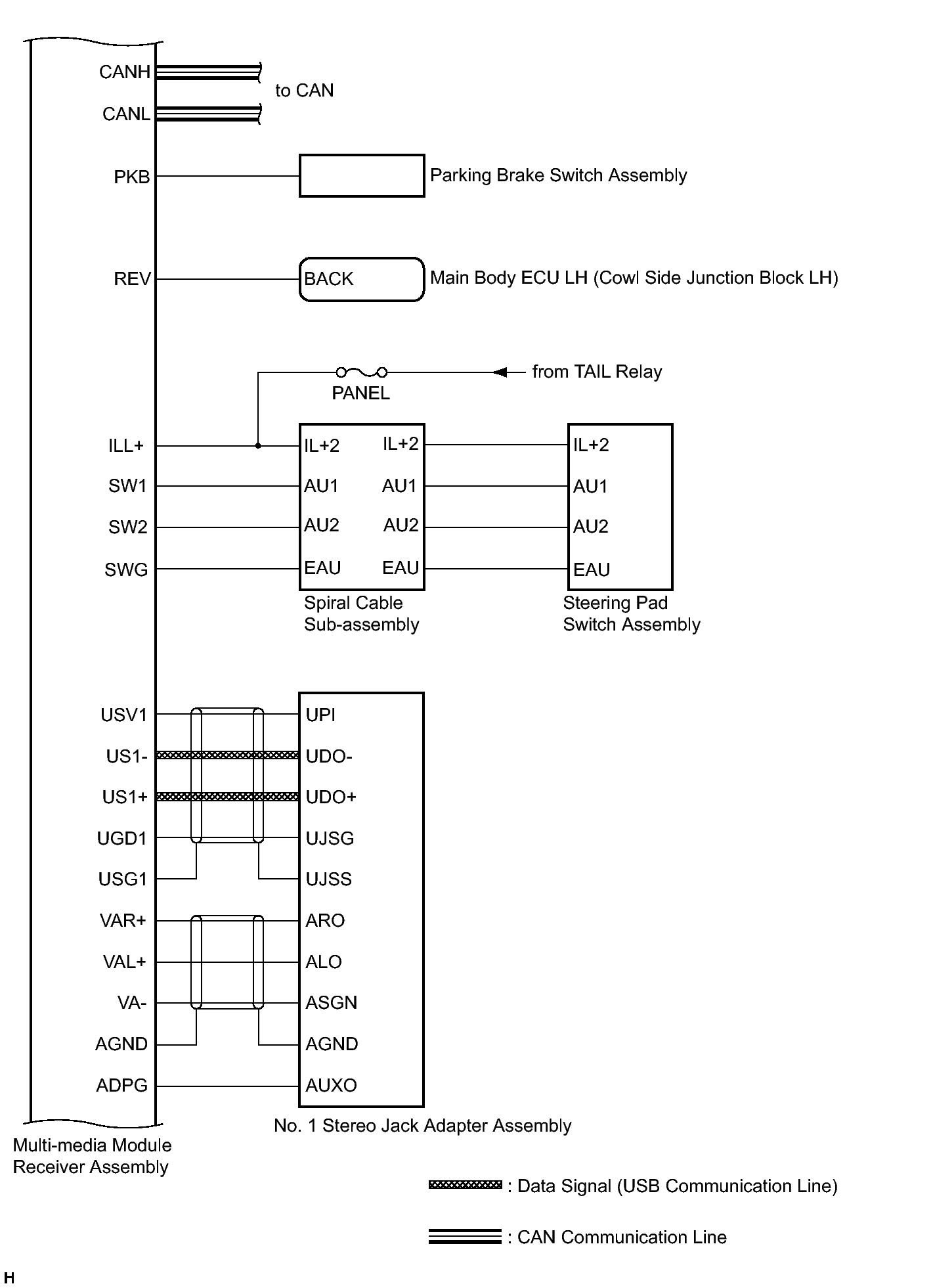

Fig 2: Audio / Video System Wiring Diagram (W/ Multi-Display) (2 Of 4)
GTY406116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

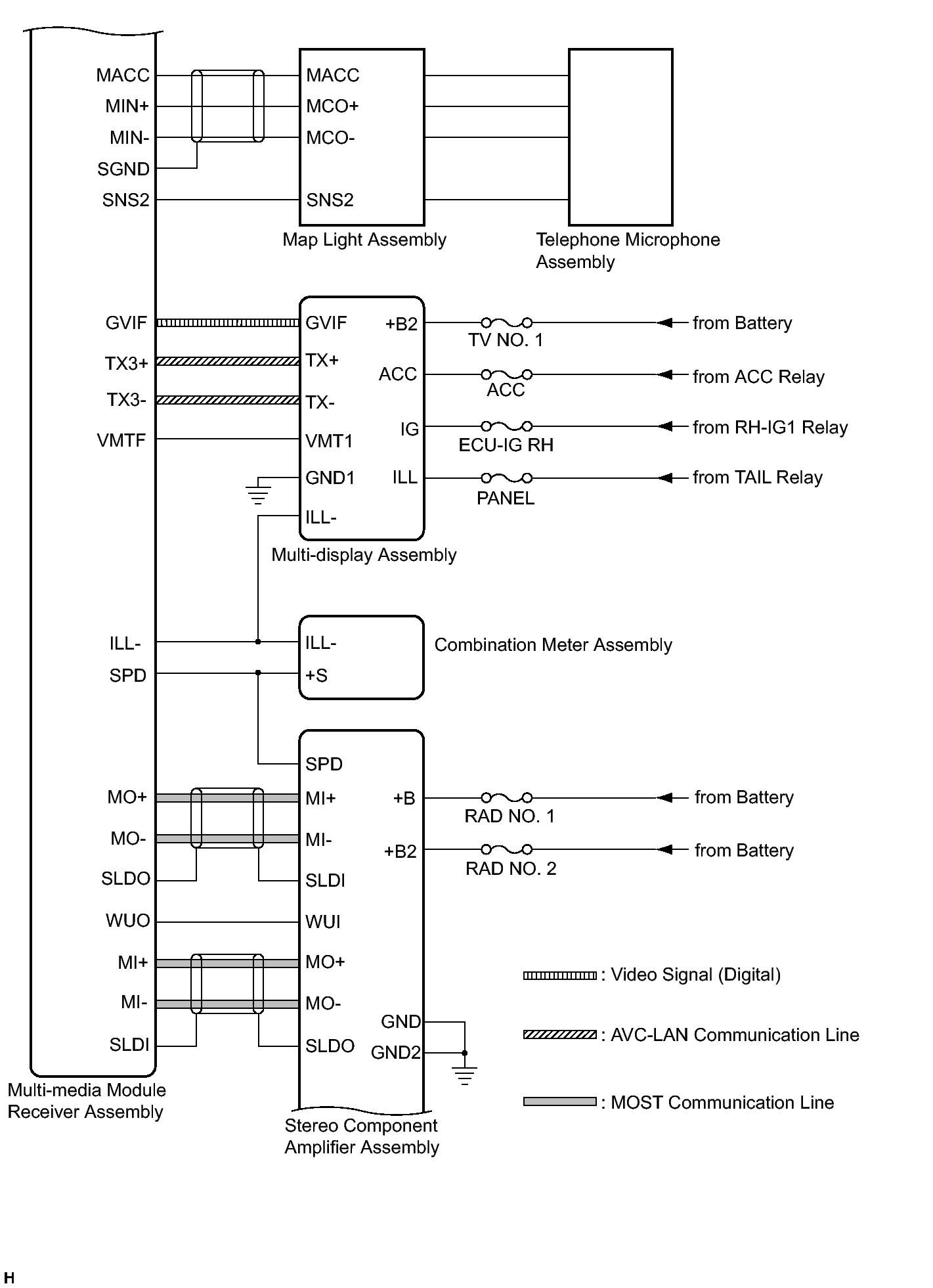

Fig 3: Audio / Video System Wiring Diagram (W/ Multi-Display) (3 Of 4)
GTY404610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

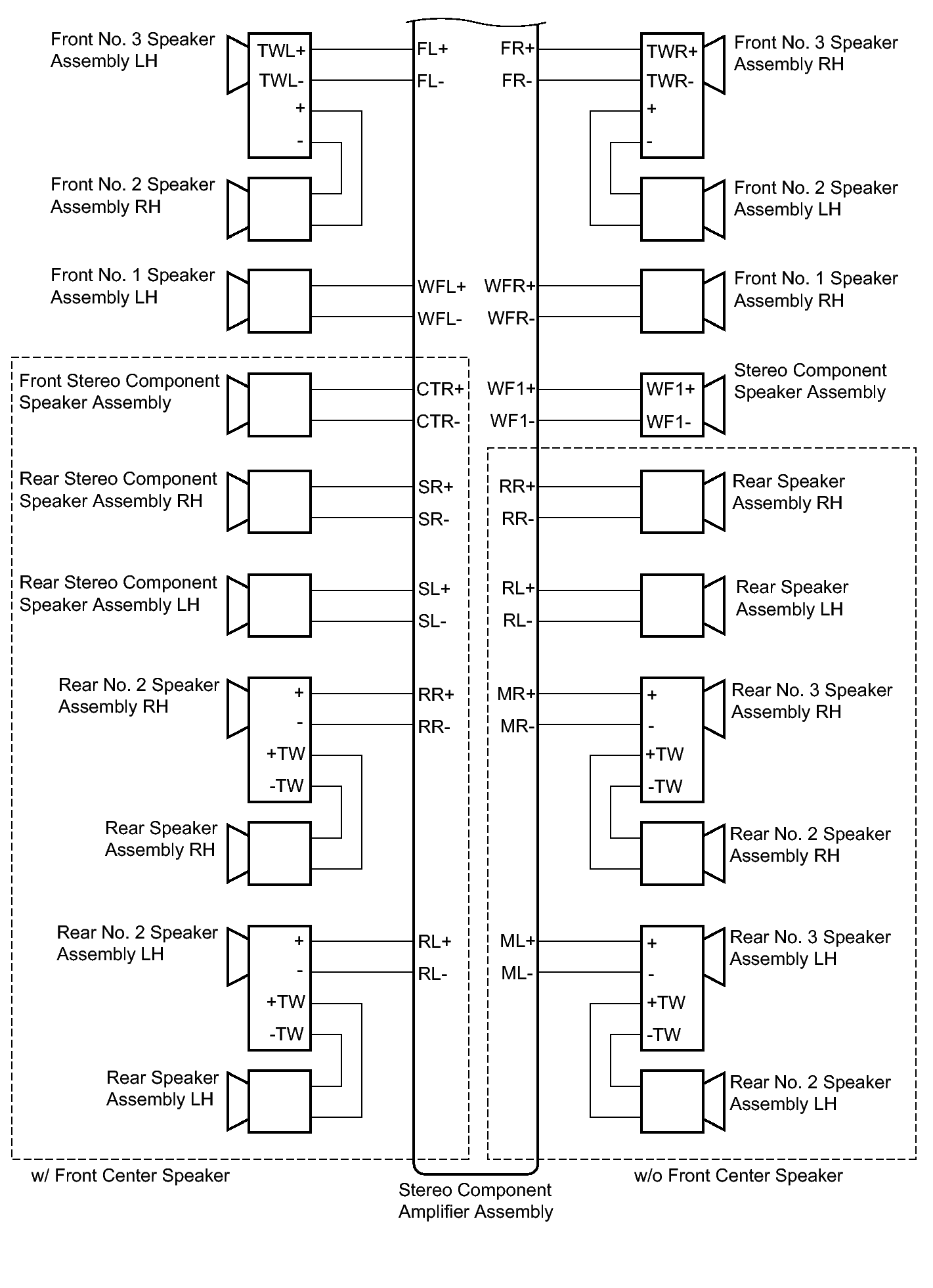

Fig 4: Audio / Video System Wiring Diagram (W/ Multi-Display) (4 Of 4)
GTY400379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
