Pattern Select Switch Power Mode Circuit: Procedure

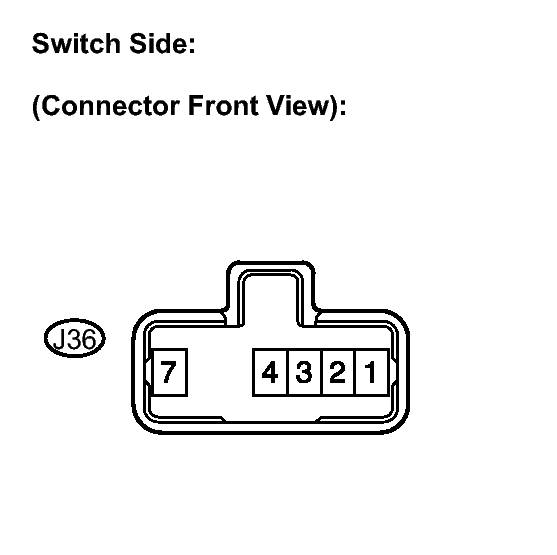

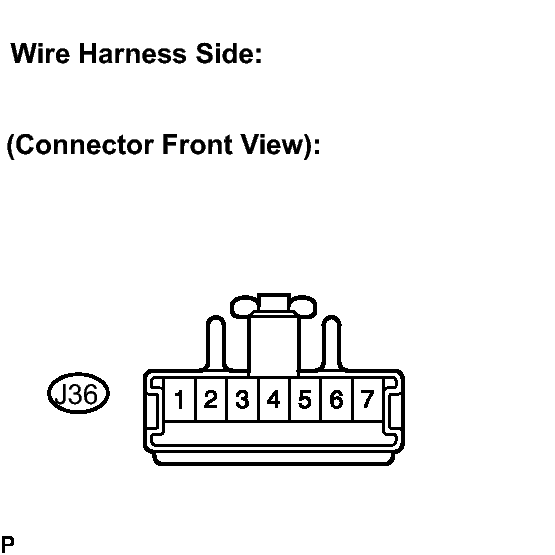

1. Disconnect the connector of pattern select switch.
2. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Specified Condition
   3 - Body ground	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	3 - 7	Below 1 Ω
   Pattern select switch (NORM)	↑	10 kΩ or higher

NG → REPLACE PATTERN SELECT SWITCH ASSEMBLY

OK: Go to next step

1. Connect the connector of pattern select switch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the cowl side junction block (main body ECU RH) connector.

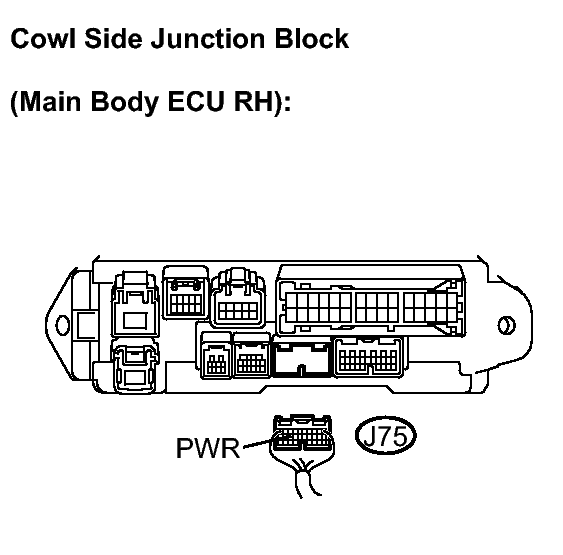

3. Measure the resistance between terminal PWR of the cowl side junction block (main body ECU RH) and body ground.

   Standard resistance

   Switch Condition	Tester Connection	Specified Condition
   Pattern select switch (PWR)	J75-18 (PWR) - Body ground	Below 1 Ω
   Pattern select switch (NORM)	↑	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
