DTC B2782: Power Source Control ECU Malfunction: Wiring Diagram

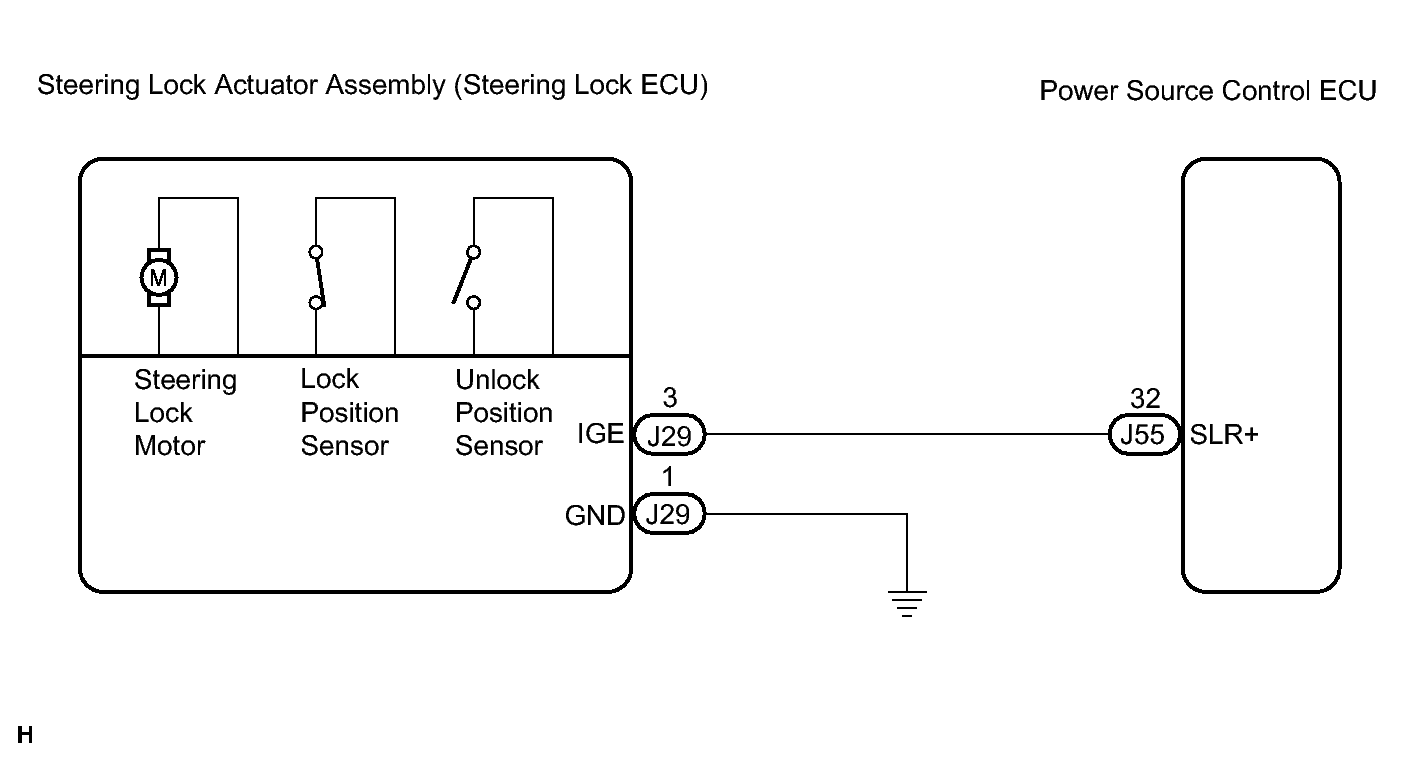

Fig 1: Identifying Power Source Control ECU Wiring Diagram

GTY128428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
