DTC P2014: Intake Manifold Runner Position Sensor / Switch Circuit (Bank 1); DTC P2016: Intake Manifold Runner Position Sensor / Switch Circuit Low (Bank 1); DTC P2017: Intake Manifold Runner Position Sensor / Switch Circuit High (Bank 1): Wiring Diagram

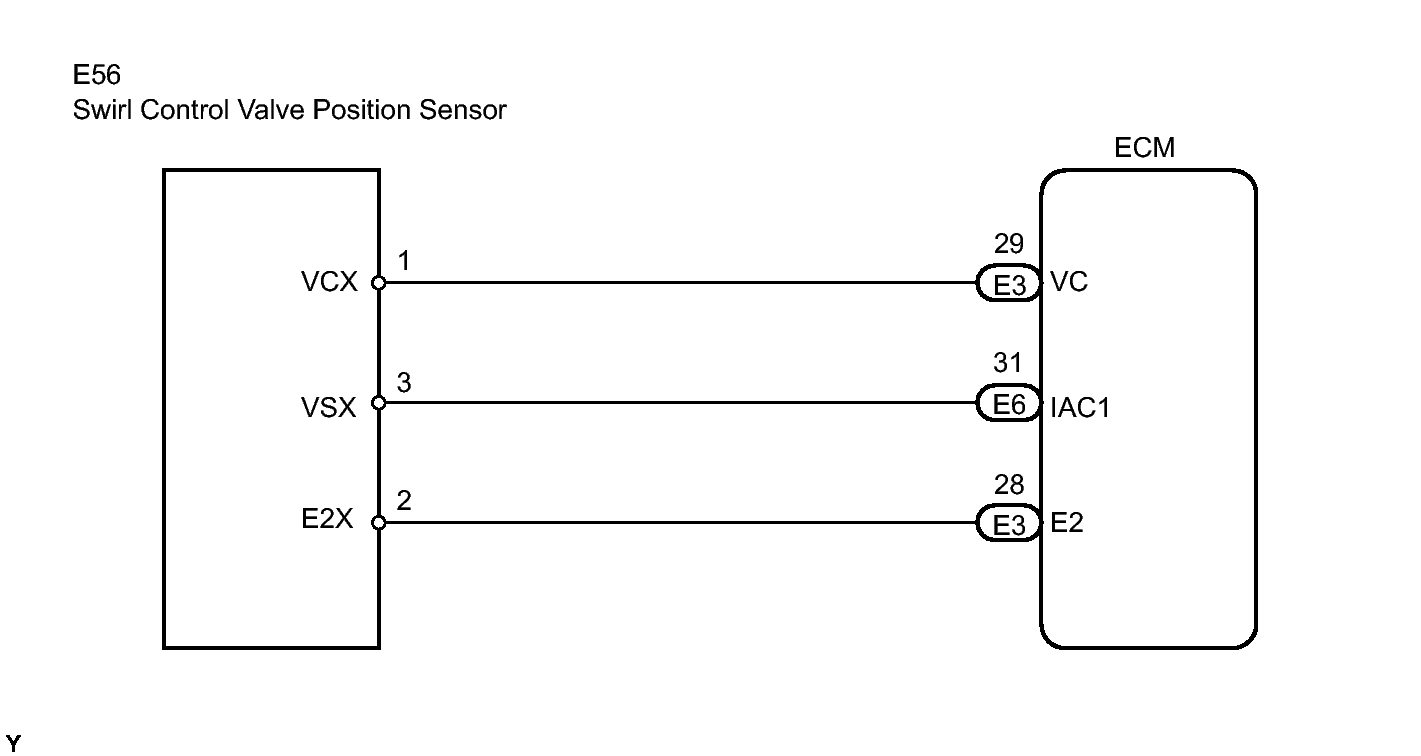

Fig 1: Swirl Control Valve Position Sensor Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
