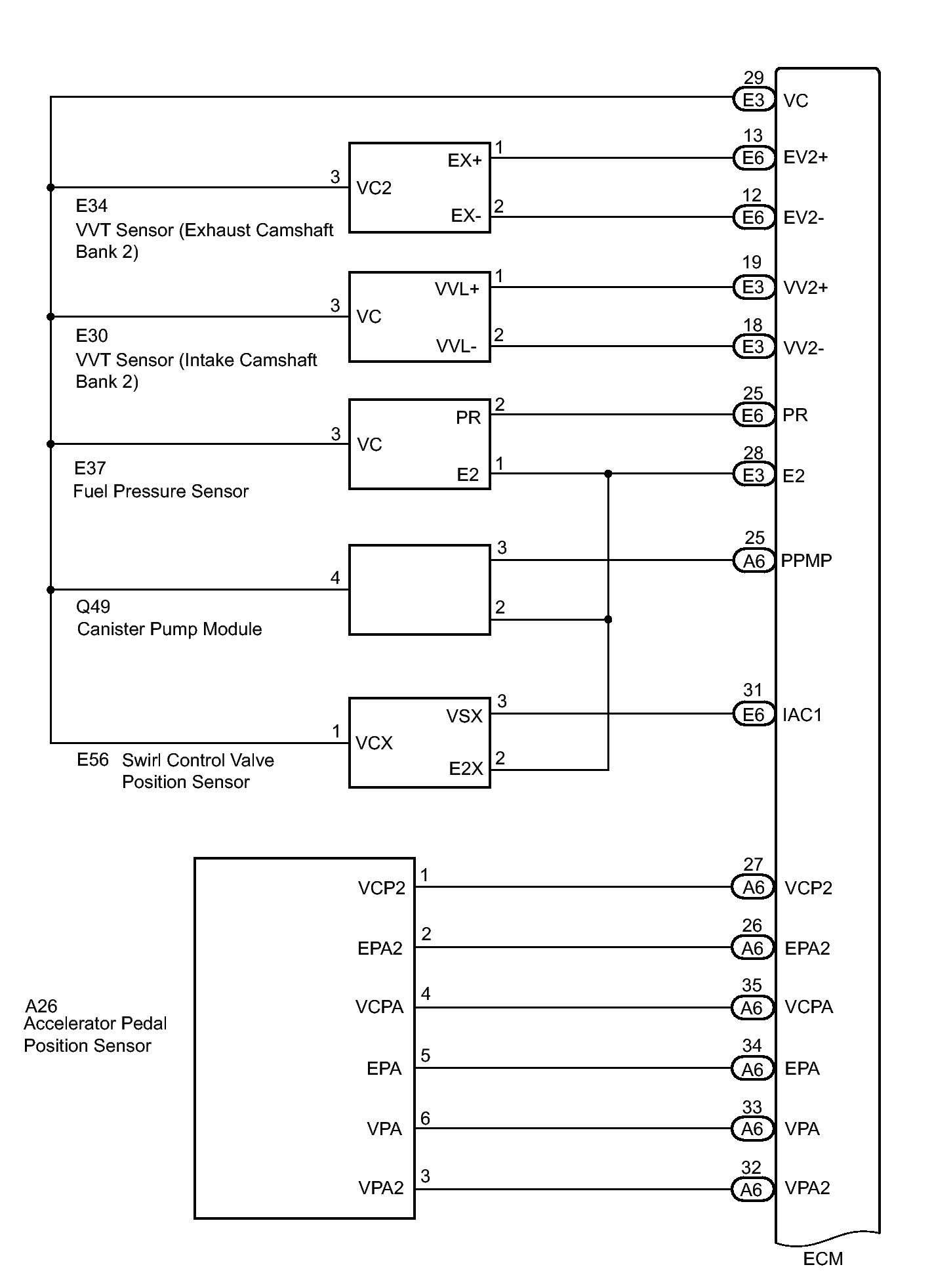

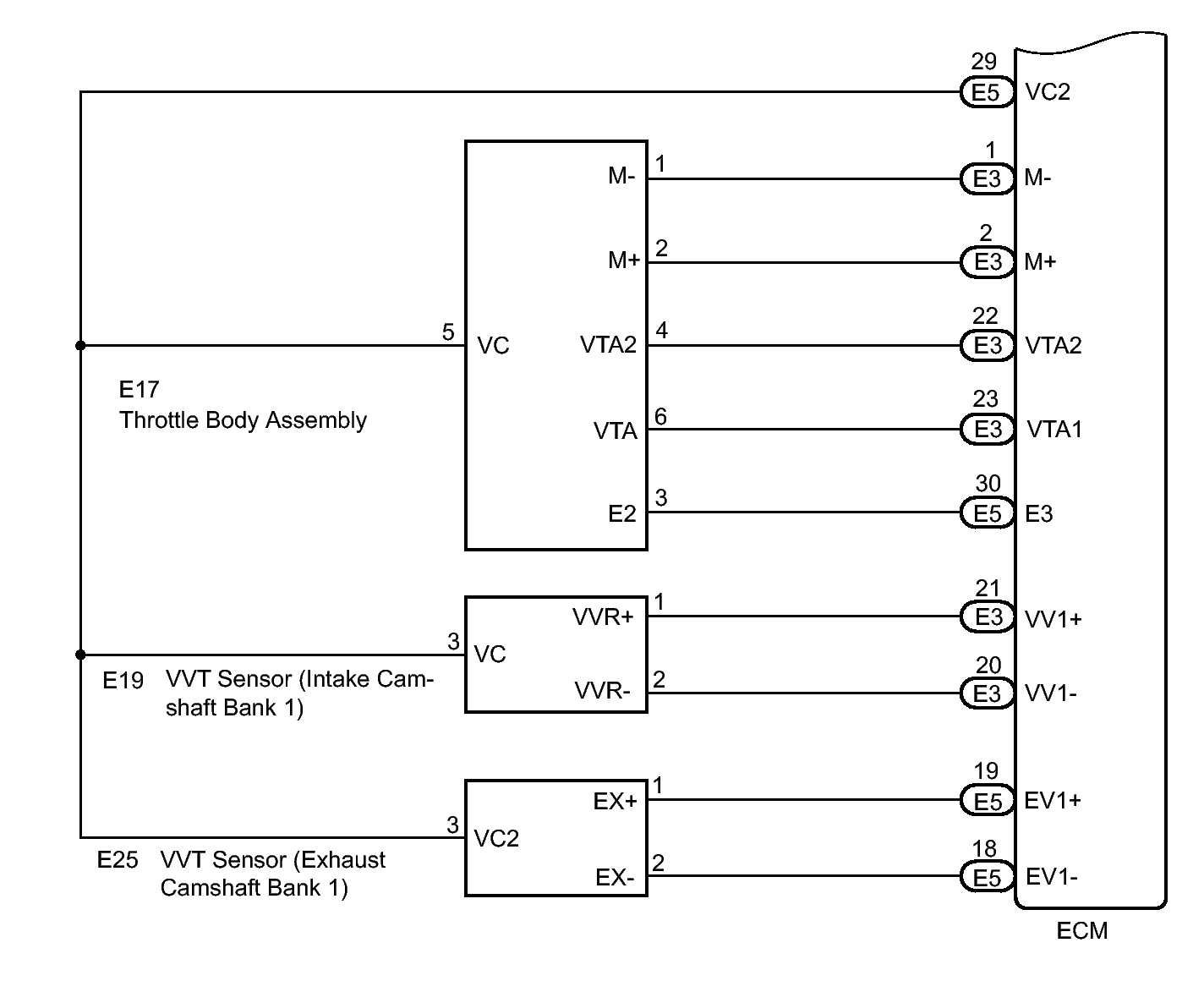

Home >> Lexus >> 2013 >> IS 250 Base, AWD >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System (Diagnostic Codes (P062F - U0101) & Circuit Tests)) >> SFI System >> Circuit Tests >> VC Output Circuit >> Wiring Diagram
