Power Source Mode does not Change to ON (IG): Wiring Diagram

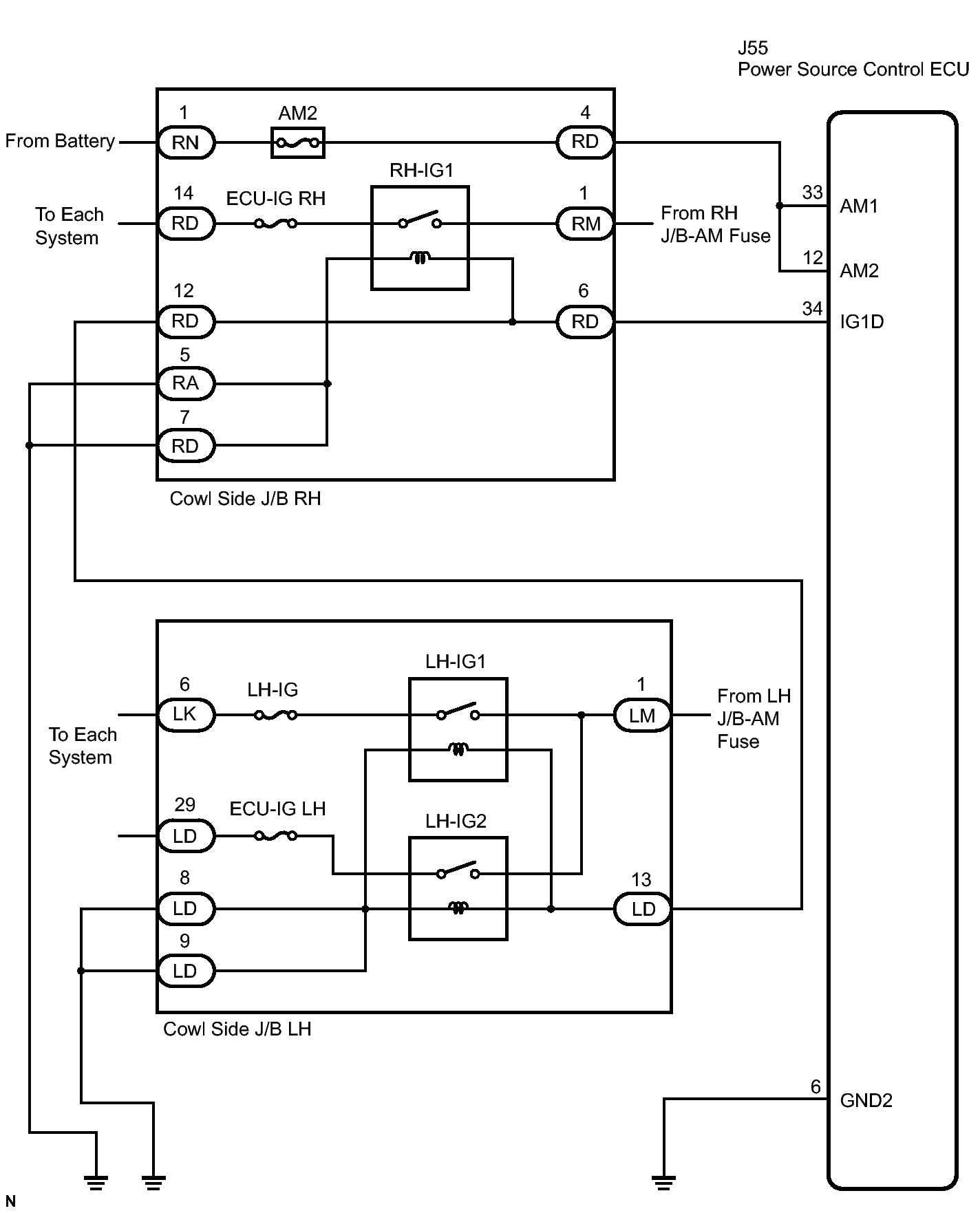

Fig 1: Power Source Mode Circuit - Wiring Diagram (1 Of 2)
GTY123309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Source Mode Circuit - Wiring Diagram (2 Of 2)
GTY348441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
