Power Source Mode does not Change to ON (ACC): Wiring Diagram

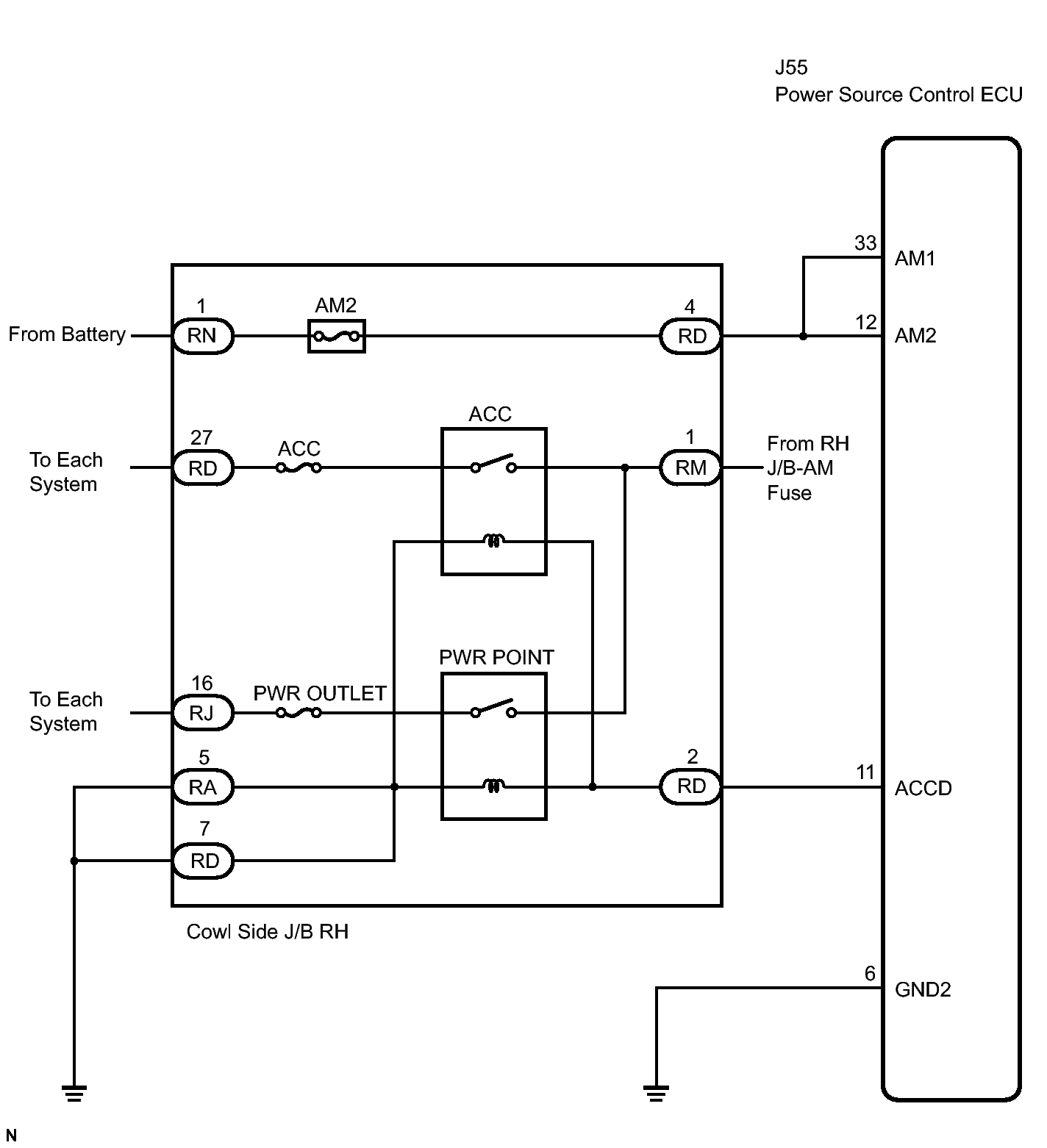

Fig 1: Power Source Circuit - Wiring Diagram

GTY137211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
