Engine does not Start: Description
- ENGINE START SYSTEM OPERATION
- If the engine switch is pressed with the shift lever in P or N and the brake pedal depressed, the power source control ECU determines that it is an engine start request.
- The certification ECU and other ECUs perform key verification via the LIN communication line.
- The power source control ECU activates the ACC relay.
- The power source control ECU activates the IG1 and IG2 relays. The engine switch indicator light turns green.
- The certification ECU outputs a steering UNLOCK signal. The signal is sent to the steering lock ECU via the power source control ECU.
- The power source control ECU sends an engine start request signal to the ECM.
- The ECM sends an ACC cut request signal to the power source control ECU.
- The ECM and power source control ECU activate the ST relay.
- The power source control ECU deactivates the ACC relay until the ECU detects an engine start.
- When engine revolution speed reaches 200 rpm, the power source control ECU determines that the engine has been started.
The ECU reactivates the ACC relay and turns off the engine switch indicator light.

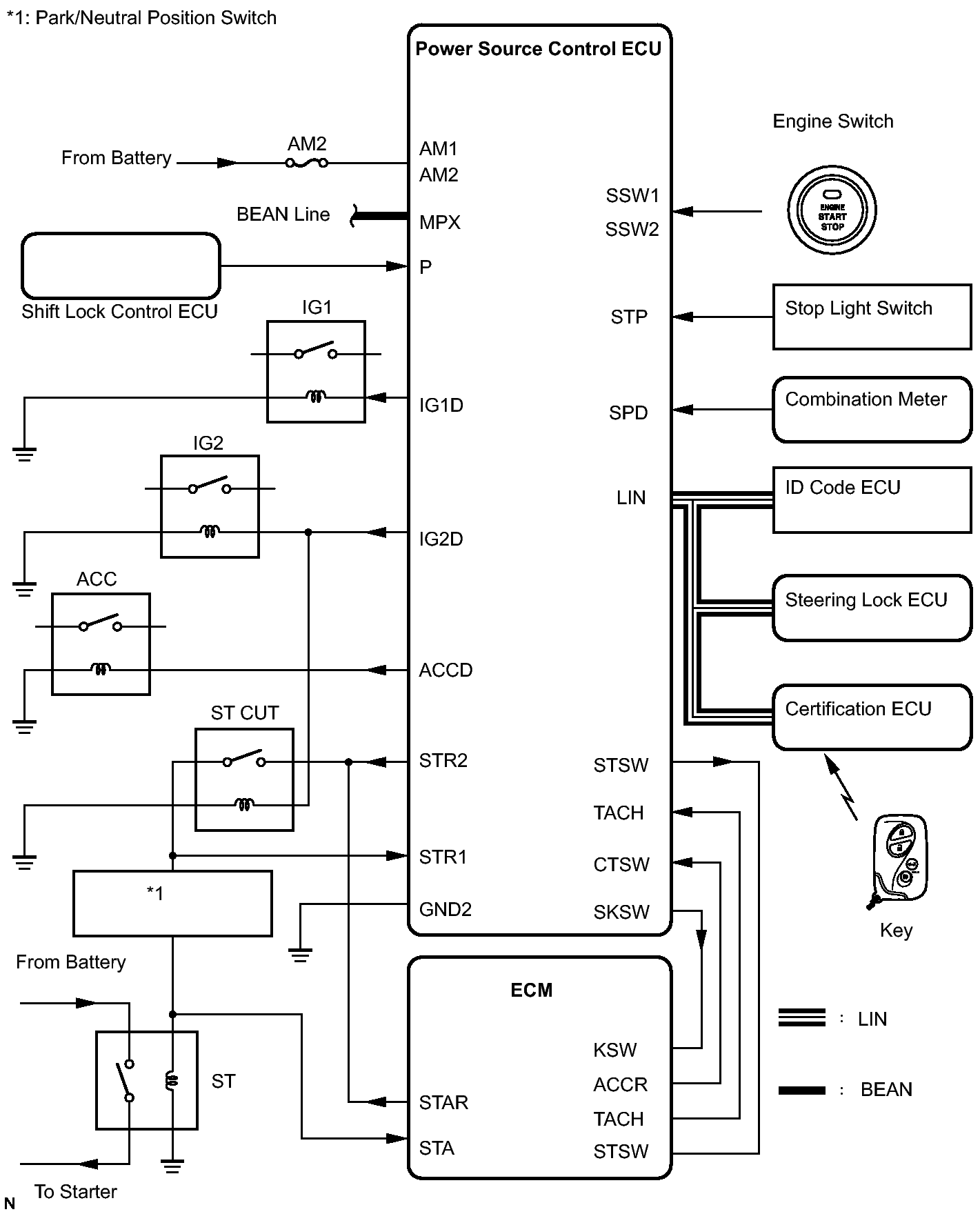

Symbols of power source control ECU Signals STP Stop light switch ON signal SSW1/SSW2 Engine switch ON signal ACCD ACC relay operation signal IG2D IG2 relay operation signal STR2 ST relay operation signal STR1 Park/neutral position switch signal TACH Engine start detection signal STSW Starter activation request signal CTSW ACC cut request signal
