DTC B2289: Key Collation Waiting Time Over: Description

This DTC is output when there is a LIN communication problem between the power source control ECU and certification ECU or when there is a problem in the engine immobiliser system.

DTC No. DTC Detection Condition Trouble Area
B2289 Either condition below is met:
  • Cable and BEAN are abnormal between the power source control ECU and the engine immobiliser system
  • The engine immobiliser system is malfunctioning
  • Power source control ECU
  • Engine immobiliser system
  • Wire harness or connector
  • Certification ECU

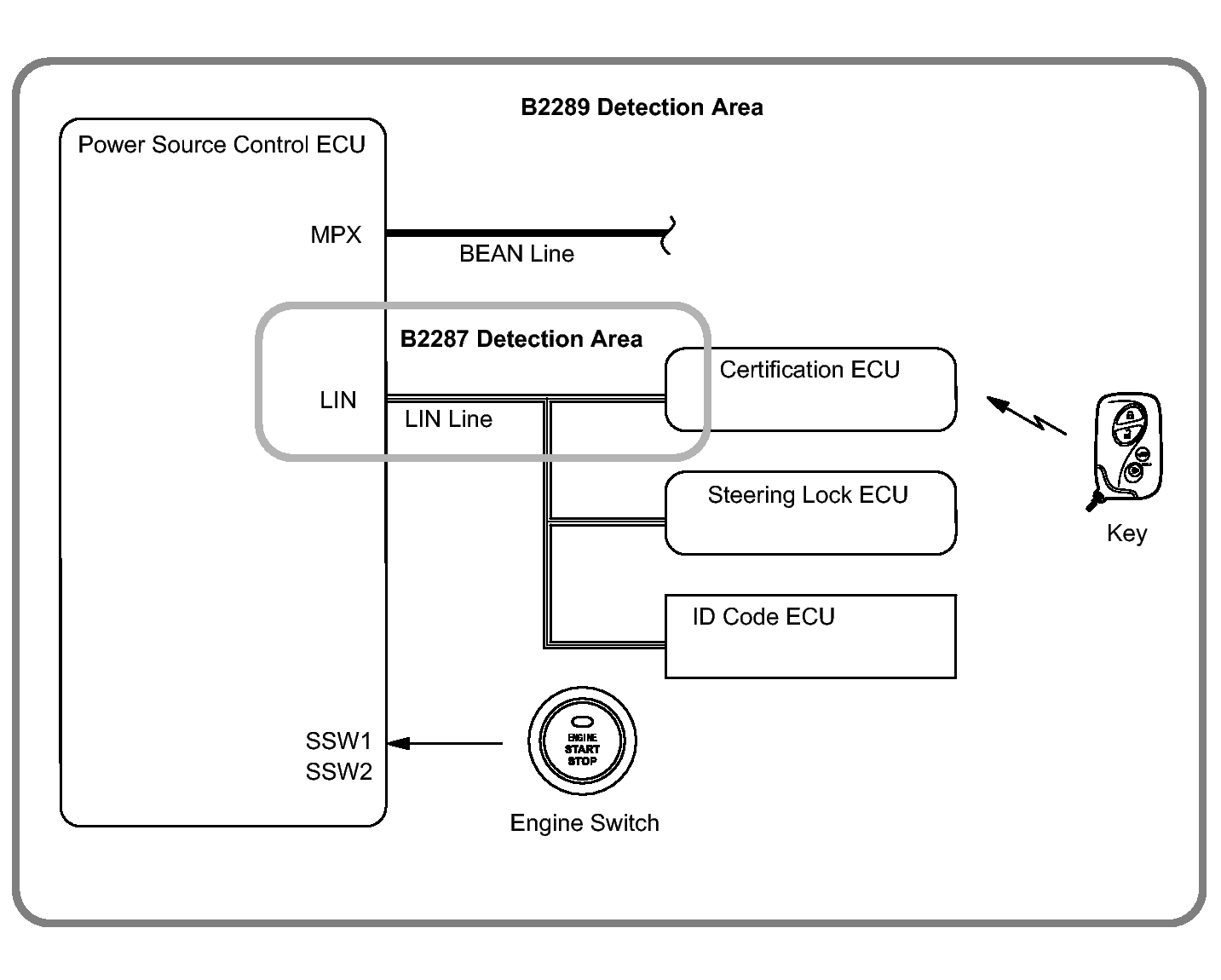

Fig 1: Identifying LIN Communication Master System Diagram
GTY145609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
