Remote Control Mirror (w/o Seat Position Memory): Notes

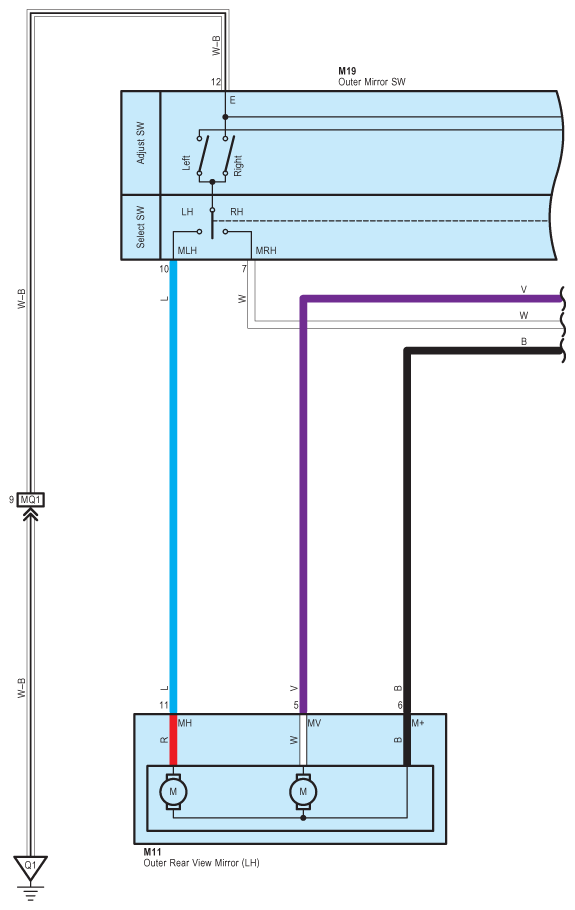

Fig 1: Remote Control Mirror (Without Seat Position Memory) System Wiring Diagram (1 Of 2)
G09119220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

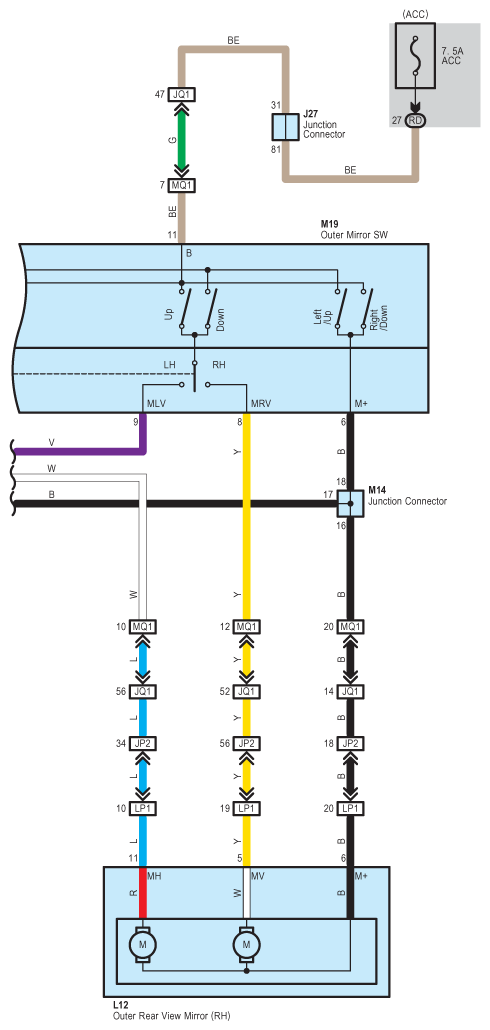

Fig 2: Remote Control Mirror (Without Seat Position Memory) System Wiring Diagram (2 Of 2)
G09119221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
