Rear Power Window RH does not Operate with Rear Power Window Switch RH: Procedure

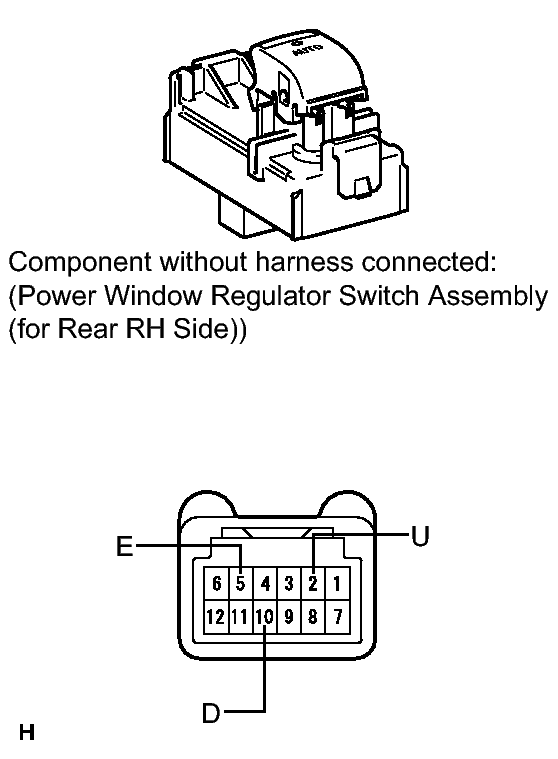

- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH Side)
- Remove the power window regulator switch assembly (for rear RH side). Refer to REMOVAL [08/2012 - ]
.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Switch Condition Specified Condition 2 (U) - 5 (E) Auto up or up position Below 1 Ω 10 (D) - 5 (E) Auto down or down position Below 1 Ω
NG → See step 6
OK: Go to next step
- Remove the power window regulator switch assembly (for rear RH side). Refer to REMOVAL [08/2012 - ]
.

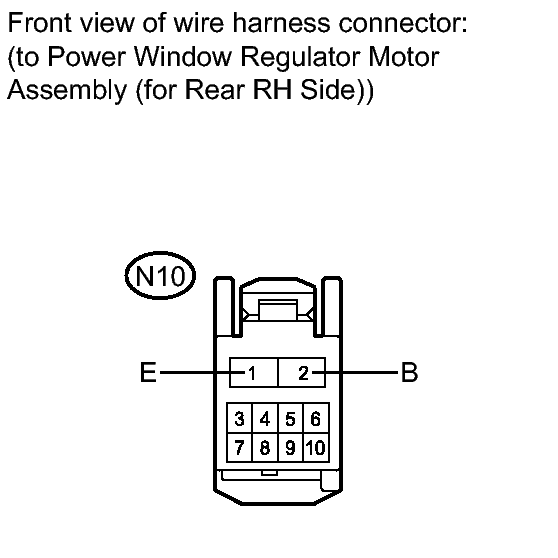

- CHECK HARNESS AND CONNECTOR (REGULATOR MOTOR - BATTERY AND BODY GROUND)
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition N10-2 (B) - Body ground Always 11 to 14 V - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N10-1 (E) - Body ground Always Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Measure the voltage according to the value(s) in the table below.

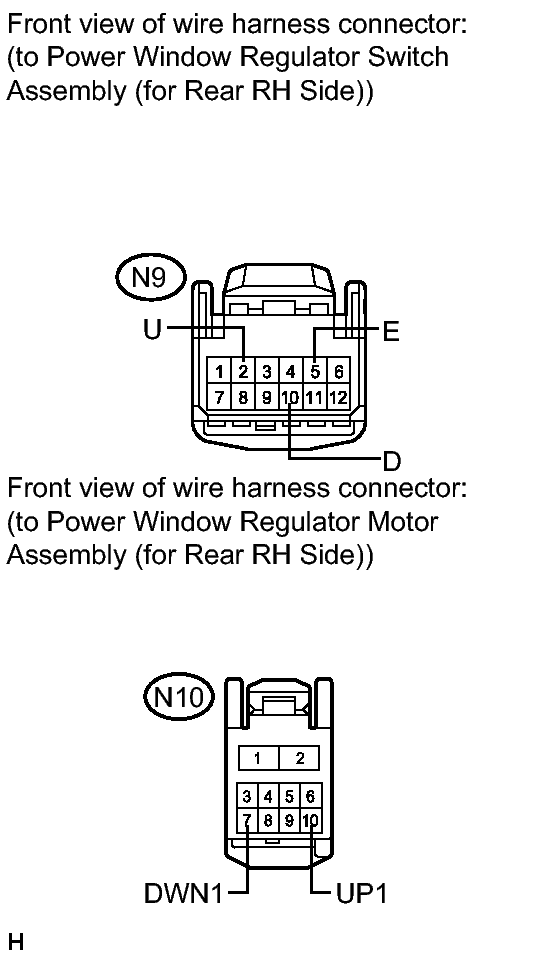

- CHECK HARNESS AND CONNECTOR (REAR RH SIDE SWITCH - REAR RH SIDE MOTOR AND BODY GROUND)
- Disconnect the power window regulator motor assembly (for rear RH side) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N9-2 (U) - N10-10 (UP1) Always Below 1 Ω N9-10 (D) - N10-7 (DWN1) Always Below 1 Ω N9-5 (E) - Body ground Always Below 1 Ω N9-2 (U) - Body ground Always 10 kΩ or higher N9-10 (D) - Body ground Always 10 kΩ or higher N10-10 (UP1) - Body ground Always 10 kΩ or higher N10-7 (DWN1) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the power window regulator motor assembly (for rear RH side) connector.
- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Side)
- Replace the power window regulator motor assembly (for rear RH side). Refer to REMOVAL [08/2012 - ] .
NEXT: Go to next step
- CHECK MANUAL UP / DOWN FUNCTION
- Check that the rear RH side door power window moves when the manual up/down function of the power window regulator assembly (for rear RH side) is operated. Refer to OPERATION CHECK [08/2012 - ] .
OK
Rear RH side manual up/down function is normal.
NG → See step 7
OK → END (POWER WINDOW REGULATOR MOTOR ASSEMBLY IS DEFECTIVE)
- Check that the rear RH side door power window moves when the manual up/down function of the power window regulator assembly (for rear RH side) is operated. Refer to OPERATION CHECK [08/2012 - ] .
- REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH side). Refer to REMOVAL [08/2012 - ]
- REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to DISASSEMBLY [08/2012 - ] - Step 2
