Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH: Wiring Diagram

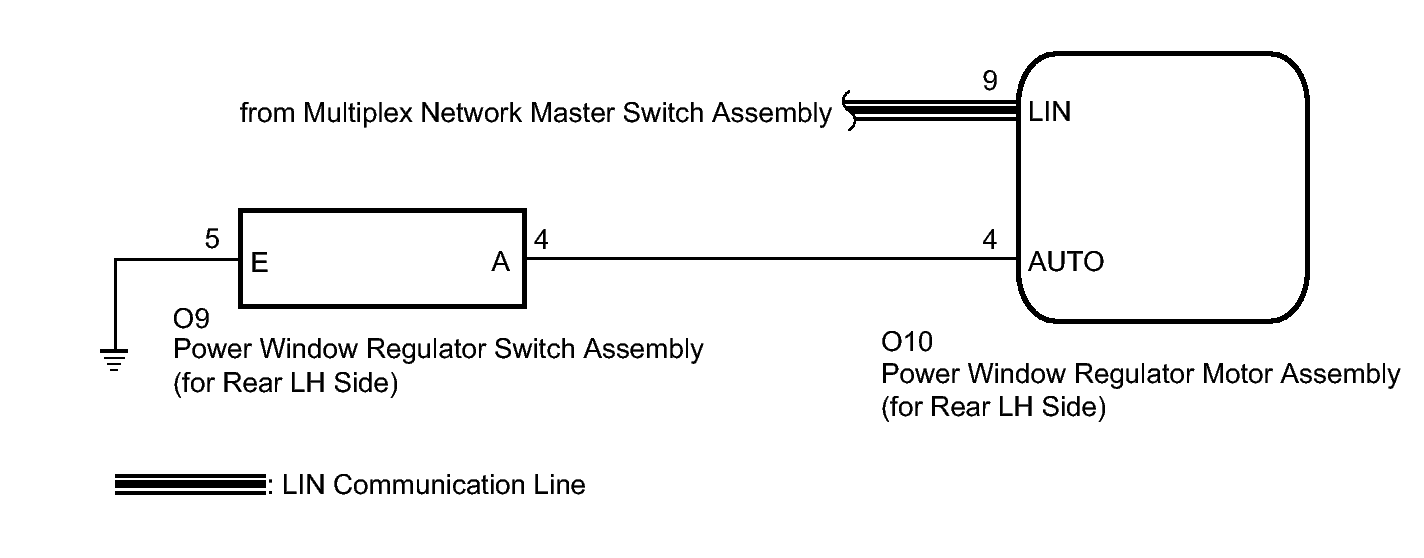

Fig 1: Rear LH Side Power Window Regulator Motor & Rear LH Side Power Window Switch - Wiring Diagram
GTY128610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
