Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

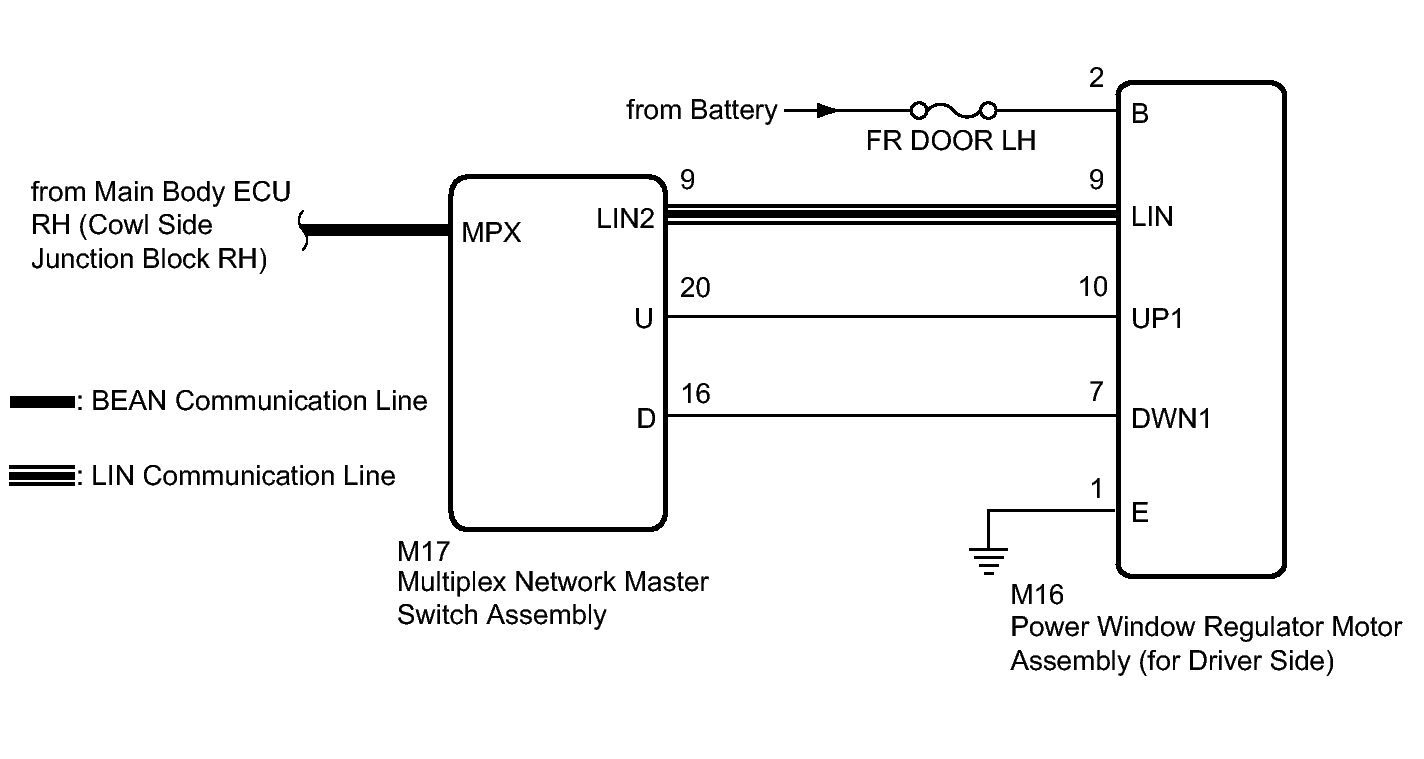

Fig 1: Power Window Master Wiring Diagram

GTY128578

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
