Rain Sensor Circuit: Procedure
- CHECK RAIN SENSOR
- Disconnect the R7 rain sensor connector.

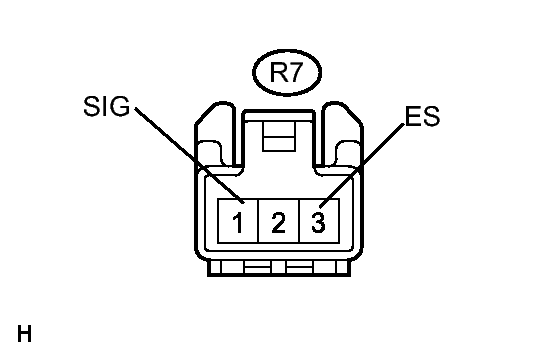

- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Condition Specified Condition R7-1 (SIG) - R7-3 (ES) Engine switch on (IG) 10 to 14 V Engine switch off Below 1 V
NG → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
OK → See step 2
- Disconnect the R7 rain sensor connector.
- CHECK HARNESS AND CONNECTOR (RAIN SENSOR - OVERHEAD J/B)
- Disconnect the R5 overhead J/B connector.

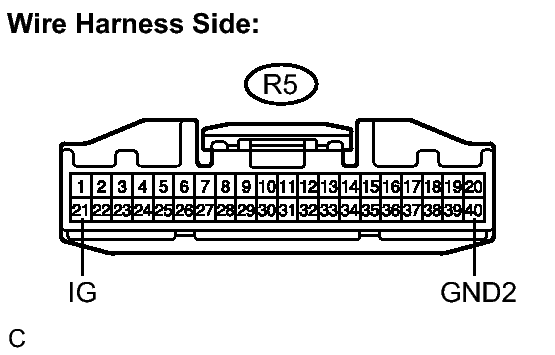

- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Condition Specified Condition R5-21 (IG) - R5-40 (GND2) Engine switch on (IG) 10 to 14 V Engine switch off Below 1 V
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (OVERHEAD J/B - BATTERY)
OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (RAIN SENSOR - OVERHEAD J/B)
- Disconnect the R5 overhead J/B connector.
