Display does not Dim when Light Control Switch is Turned ON: Wiring Diagram

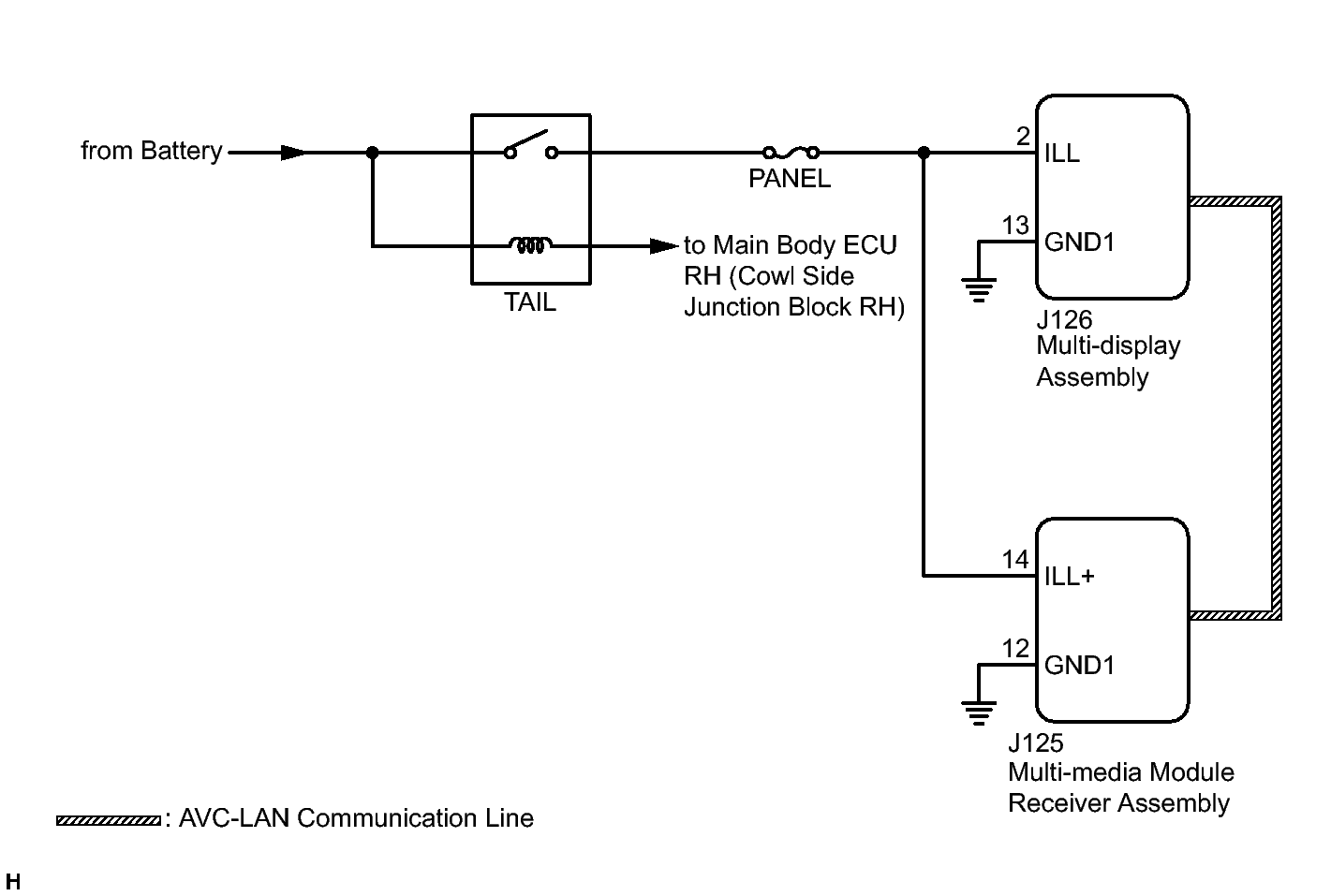

Fig 1: Display Illumination Signal Input Wiring Diagram

GTY409458

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
