Microphone Circuit between Microphone and Navigation Receiver Assembly: Wiring Diagram

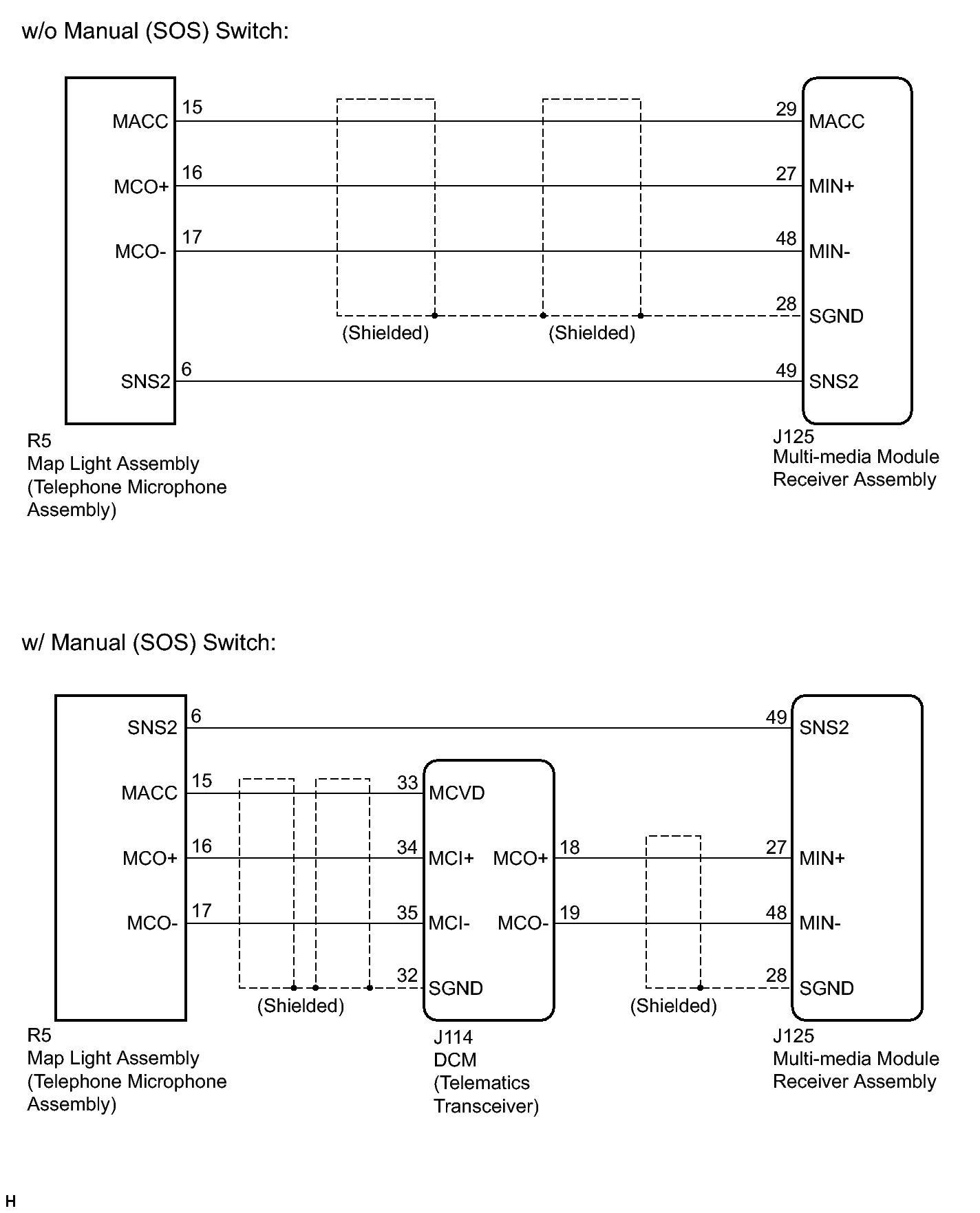

Fig 1: Microphone Circuit Between Microphone And Navigation Receiver Assembly Wiring Diagram
GTY408631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
