DTC B1279: Rain Sensor Communication Stop: Wiring Diagram

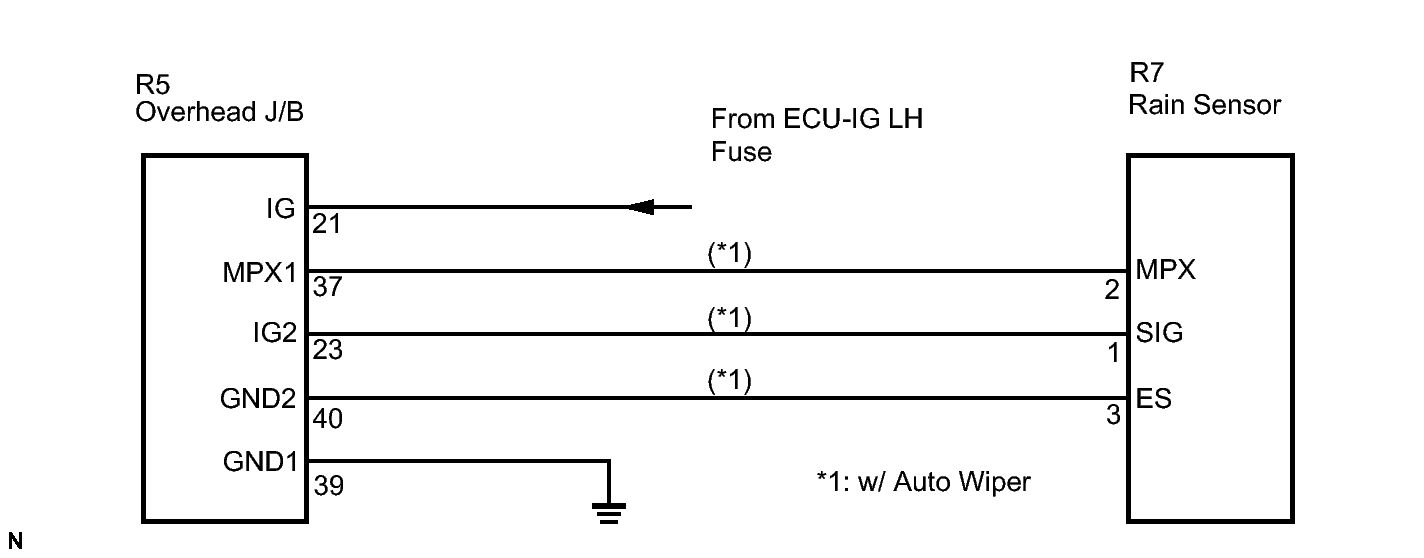

Fig 1: View Of Rain Sensor Communication Wiring Diagram

GTY265101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
