DTC B1207: Smart ECU Stop: Procedure
- INSPECT FUSE (SECURITY)
- Remove the SECURITY fuse from the cowl side J/B LH.
- Measure the resistance of the fuse.
Standard resistance
Below 1 Ω
NG → REPLACE FUSE
OK: Go to next step
- CHECK WIRE HARNESS (CERTIFICATION ECU - BATTERY AND BODY GROUND)
- Disconnect the P33 ECU connector.
- Measure the voltage and resistance of the wire harness side connector.
Standard voltage
Tester Connection Condition Specified Condition +B1 (P33-1) - Body ground Always 10 to 14 V Standard resistance
Tester Connection Specified Condition E (P33-17) - Body ground Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the P33 ECU connector.
- CHECK RESISTANCE OF COMMUNICATION LINE

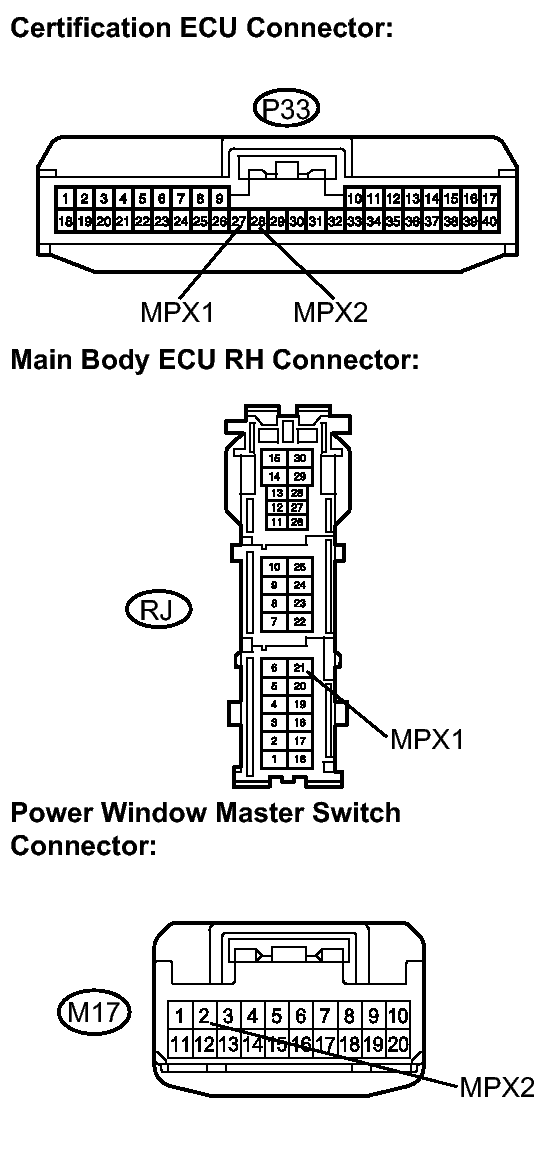

- Disconnect the P33, RJ and M17 ECU connectors.
- Measure the resistance between the specified terminals on the wire harness side connectors.
Standard resistance
Tester Connection Specified Condition MPX1 (P33-27) - MPX1 (RJ-21) Below 1 Ω MPX2 (P33-28) - MPX2 (M17-2) Below 1 Ω Result
Result Proceed to Both are OK A One is OK B Both are NG C
B → REPAIR OR REPLACE HARNESS OR CONNECTOR AND REPLACE CERTIFICATION ECU
C → REPAIR OR REPLACE HARNESS OR CONNECTOR
A → REPLACE CERTIFICATION ECU
- Disconnect the P33, RJ and M17 ECU connectors.
