Open in CAN Main Bus Line: Procedure

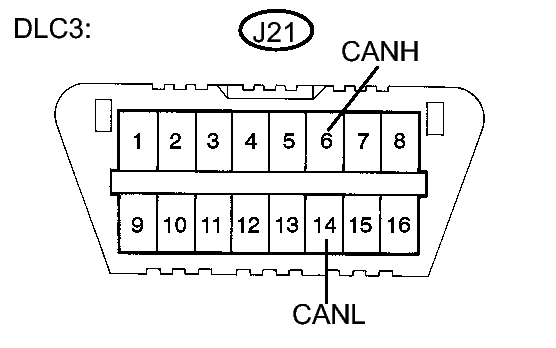

- CHECK DLC3
- Turn the engine switch off.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Value Result J21-6 (CANH) -J21-14 (CANL) Engine switch off 108 to 132 Ω A J21-6 (CANH) - J21-14 (CANL) Engine switch off 133 Ω or higher B NOTE:When the measured value is 133 Ω or more and a CAN communication system DTC is output, there may be a fault besides disconnection of the DLC3 branch line. For that reason, troubleshooting should be performed again from "HOW TO PROCEED WITH TROUBLESHOOTING". Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2012 - ] after repairing the trouble area.
B → REPAIR OR REPLACE DLC3 BRANCH LINE OR CONNECTOR (CANH, CANL)
A: Go to next step
- CHECK FOR OPEN IN CAN BUS MAIN LINE (CAN BUS CHECK)
- Perform "CAN Bus Check" using the Techstream. Refer to DIAGNOSIS SYSTEM [08/2012 - ] .
Result
Specified Condition Proceed to "Engine" and "ECT" only are not displayed A "Body/Gateway" only is not displayed B Others C
B → See step 4
C → See step 7
A: Go to next step
- Perform "CAN Bus Check" using the Techstream. Refer to DIAGNOSIS SYSTEM [08/2012 - ] .
- CHECK FOR OPEN IN CAN BUS MAIN LINE (ECM - CAN LH J/C)
- Turn the engine switch off.

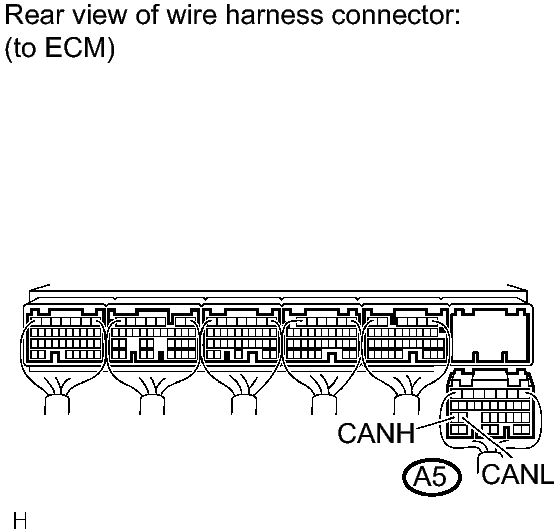

- Disconnect the ECM connector (A5).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A5-25 (CANH) - A5-24 (CANL) Engine switch off 108 to 132 Ω
NG → REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (ECM - CAN LH J/C)
OK → REPLACE ECM
- Turn the engine switch off.
- CHECK FOR OPEN IN CAN BUS MAIN LINE (GATEWAY ECU - CAN LH J/C)
- Turn the engine switch off.

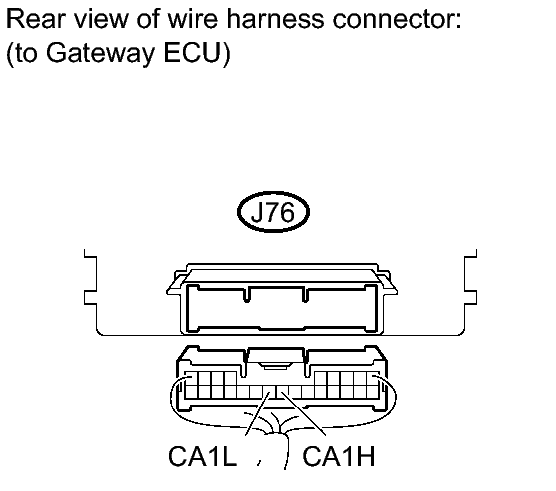

- Disconnect the gateway ECU connector (J76).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J76-17 (CA1H) - J76-18 (CA1L) Engine switch off 108 to 132 Ω
OK → REPLACE GATEWAY ECU
NG: Go to next step
- Turn the engine switch off.
- RECONNECT CONNECTOR
- Reconnect the gateway ECU connector (J76).
NEXT: Go to next step
- CHECK FOR OPEN IN CAN BUS MAIN LINE (CAN RH J/C - GATEWAY ECU)

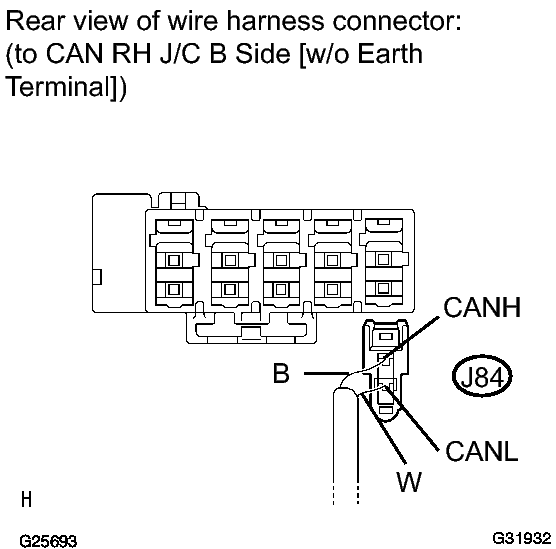

- Disconnect the CAN main bus line connector (J84) from the CAN RH J/C B side (w/o earth terminal).NOTE:
- Before disconnecting the connector, make a note of where it is connected.
- Reconnect the connector to its original position.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J84-1 (CANH) - J84-2 (CANL) Engine switch off 108 to 132 Ω
NG → REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (CAN RH J/C - GATEWAY ECU)
OK → REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (CAN LH J/C - CAN RH J/C)
- Disconnect the CAN main bus line connector (J84) from the CAN RH J/C B side (w/o earth terminal).
- CHECK FOR OPEN IN CAN BUS MAIN LINE (ECM - CAN LH J/C)
- Turn the engine switch off.
- Disconnect the ECM connector (A5).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition A5-25 (CANH) - A5-24 (CANL) Engine switch off 108 to 132 Ω
OK → REPLACE ECM
NG: Go to next step
- Turn the engine switch off.
- RECONNECT CONNECTOR
- Reconnect the ECM connector (A5).
NEXT: Go to next step
- CHECK FOR OPEN IN CAN BUS MAIN LINE (GATEWAY ECU - CAN LH J/C)
- Disconnect the gateway ECU connector (J76).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J76-17 (CA1H) - J76-18 (CA1L) Engine switch off 108 to 132 Ω
OK → REPLACE GATEWAY ECU
NG: Go to next step
- Disconnect the gateway ECU connector (J76).
- RECONNECT CONNECTOR
- Reconnect the gateway ECU connector (J76).
NEXT: Go to next step
- CHECK FOR OPEN IN CAN BUS MAIN LINE (CAN RH J/C - GATEWAY ECU)
- Disconnect the CAN main bus line connector (J84) from the CAN RH J/C B side (w/o earth terminal).NOTE:
- Before disconnecting the connector, make a note of where it is connected.
- Reconnect the connector to its original position.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Value J84-1 (CANH) - J84-2 (CANL) Engine switch off 108 to 132 Ω
NG → REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (CAN RH J/C - GATEWAY ECU)
OK: Go to next step
- Disconnect the CAN main bus line connector (J84) from the CAN RH J/C B side (w/o earth terminal).
- RECONNECT CONNECTOR
- Reconnect the CAN main bus line connector (J84) to the CAN RH J/C B side (w/o earth terminal).
NEXT: Go to next step
- CHECK FOR OPEN IN CAN BUS MAIN LINE (ECM - CAN LH J/C)

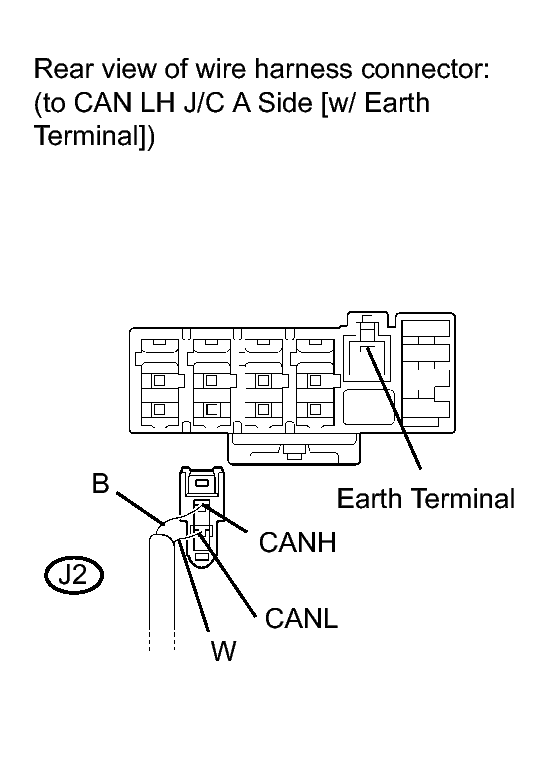

- Disconnect the CAN main bus line connector (J2) from the CAN LH J/C A side (w/ earth terminal).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition J2-1 (CANH) - J2-2 (CANL) Engine switch off 108 to 132 Ω
NG → REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (ECM - CAN LH J/C)
OK → REPAIR OR REPLACE CAN BUS MAIN LINE OR CONNECTOR (CAN LH J/C - CAN RH J/C)
- Disconnect the CAN main bus line connector (J2) from the CAN LH J/C A side (w/ earth terminal).
