4WD Control ECU Communication Stop Mode: Wiring Diagram

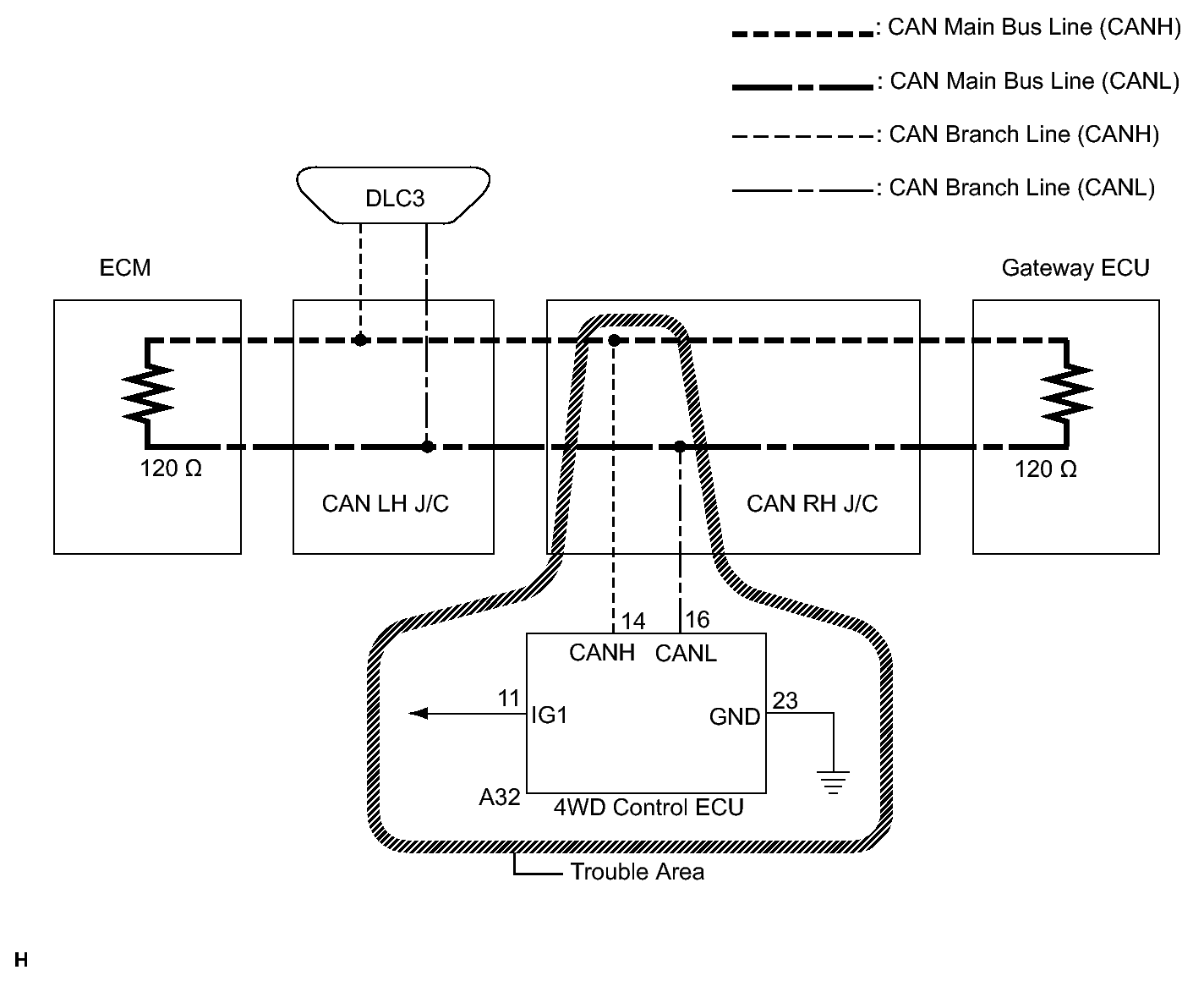

Fig 1: 4WD Control ECU Communication Stop Mode Wiring Diagram

GTY142925

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
