Components [06/2012 - ]: Illustration

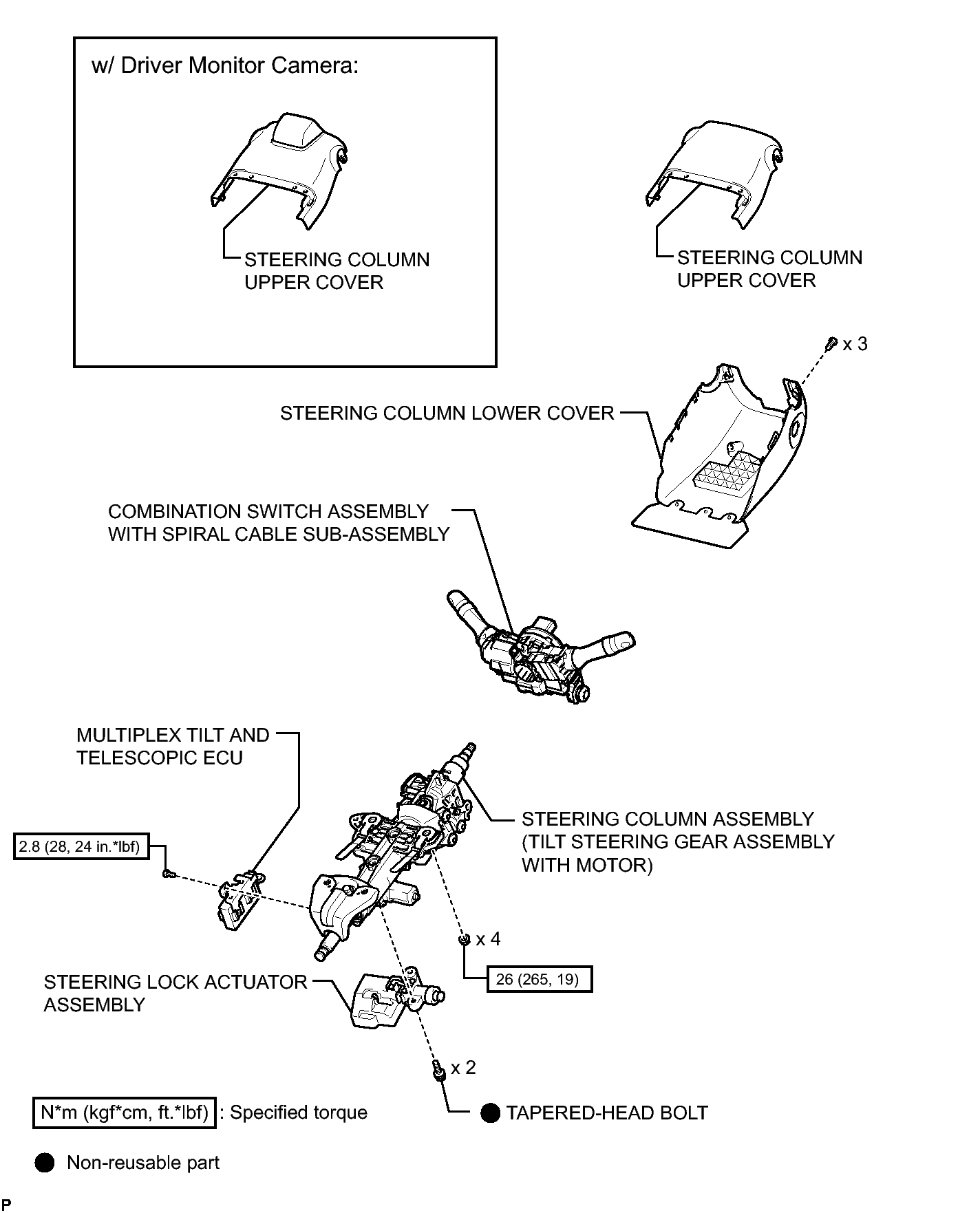

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY273226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

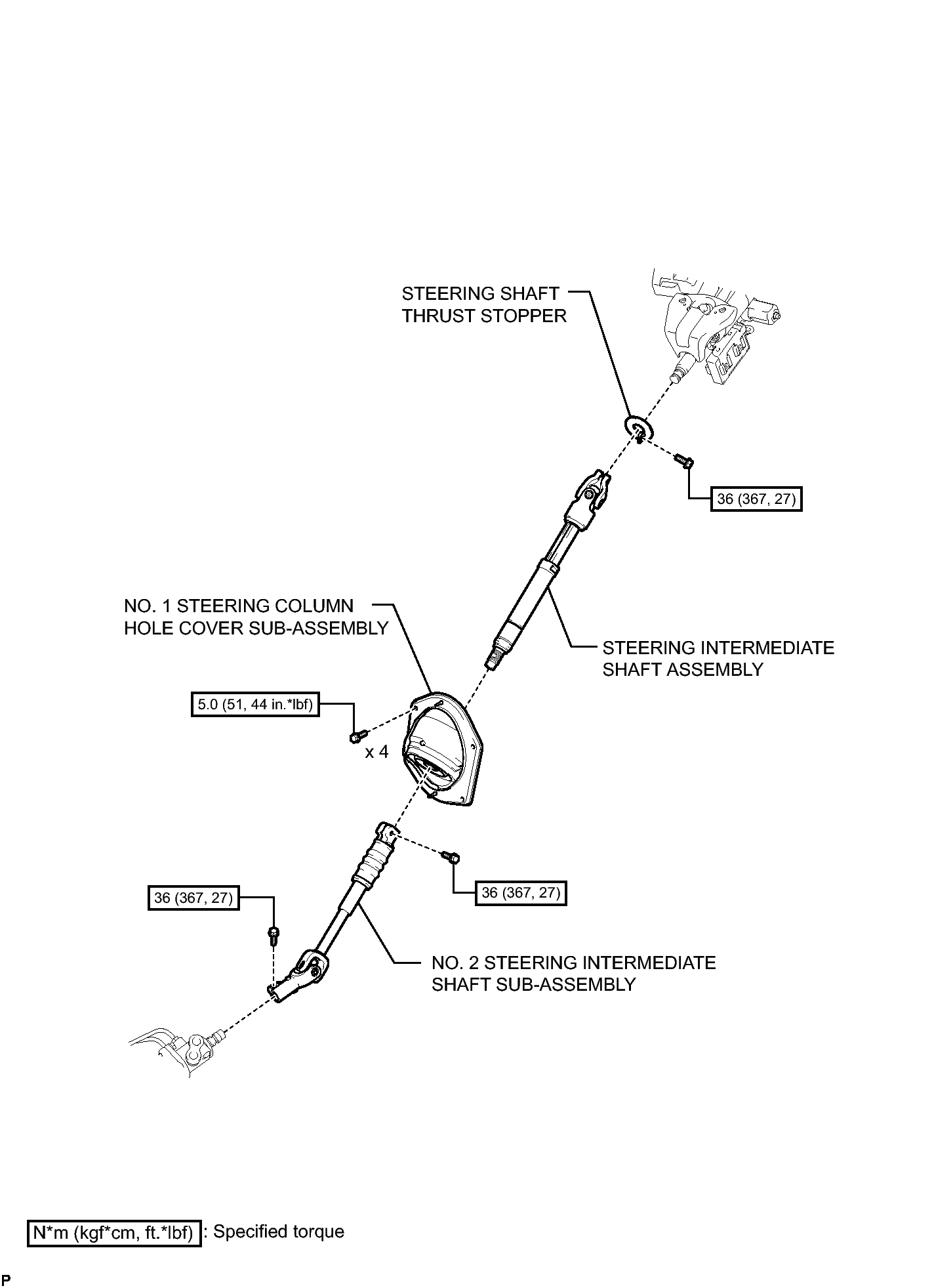

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY255500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
