Mirror Heater does not Operate with Rear Defogger Switch: Procedure
- CHECK CAN COMMUNICATION SYSTEM
- Check if a CAN communication DTC is output. Refer to DIAGNOSIS SYSTEM [06/2012 - ]
.RESULT
Result Proceed to DTC is not output A DTC is output B
B → See step 12
A: Go to next step
- Check if a CAN communication DTC is output. Refer to DIAGNOSIS SYSTEM [06/2012 - ]
.
- CHECK WINDOW DEFOGGER SYSTEM
- Check window defogger system operation. Refer to SYSTEM DESCRIPTION [06/2012 - ]
.
OK
Window defogger system is normal.
NG → See step 6
OK: Go to next step
- Check window defogger system operation. Refer to SYSTEM DESCRIPTION [06/2012 - ]
.
- PERFORM ACTIVE TEST USING TECHSTREAM (MIRROR HEATER)
- Select the Active Test, use the Techstream to generate a control command, and then check the mirror heater function. Refer to DATA LIST / ACTIVE TEST [06/2012 - ] .MIRROR L / MIRROR R
Tester Display Test Part Control Range Diagnostic Note Mirror Heater Mirror heater operation ON / OFF - OK
Mirror heater operates normally.
RESULTResult Proceed to Mirror heater operation of both mirrors is normal A Mirror heater operation of LH side mirror is not normal B Mirror heater operation of RH side mirror is not normal C
B → See step 4
C → See step 5
A → See step 7
- Select the Active Test, use the Techstream to generate a control command, and then check the mirror heater function. Refer to DATA LIST / ACTIVE TEST [06/2012 - ] .
- INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
- Remove the outer rear view mirror assembly LH. Refer to REMOVAL [06/2012 - ]
.

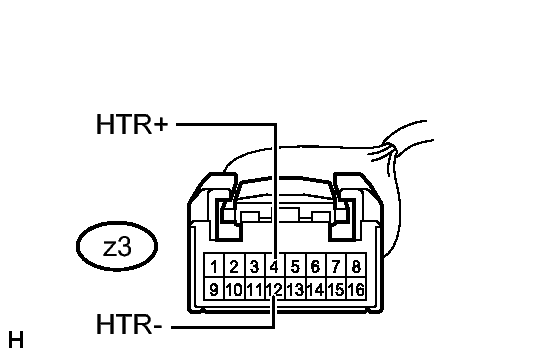

- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Condition Specified Condition z3-4 (HTR+) - z3-12 (HTR-) 25°C (77°F) 2.4 to 4.4 Ω
NG → See step 10
OK → See step 11
- Remove the outer rear view mirror assembly LH. Refer to REMOVAL [06/2012 - ]
.
- INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
- Remove the outer rear view mirror assembly RH. Refer to REMOVAL [06/2012 - ]
.

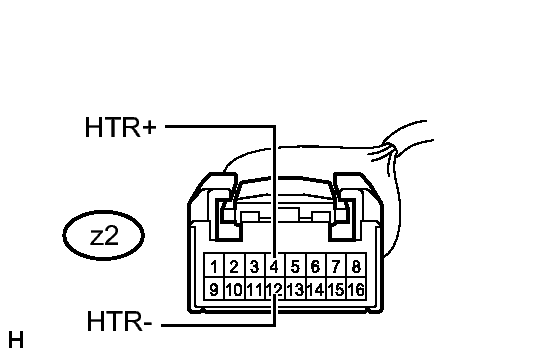

- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Condition Specified Condition z2-4 (HTR+) - z2-12 (HTR-) 25°C (77°F) 2.4 to 4.4 Ω
NG → See step 8
OK → See step 9
- Remove the outer rear view mirror assembly RH. Refer to REMOVAL [06/2012 - ]
.
- GO TO WINDOW DEFOGGER SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2012 - ]
- REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to REMOVAL [06/2012 - ]
- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY RH. Refer to REMOVAL [06/2012 - ]
- REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY RH. Refer to REMOVAL [06/2012 - ]
- REPLACE OUTER REAR VIEW MIRROR ASSEMBLY LH. Refer to REMOVAL [06/2012 - ]
- REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY LH. Refer to REMOVAL [06/2012 - ]
- GO TO CAN COMMUNICATION SYSTEM. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [06/2012 - ]
