DTC P0401: Exhaust Gas Recirculation Flow Insufficient Detected: Wiring Diagram

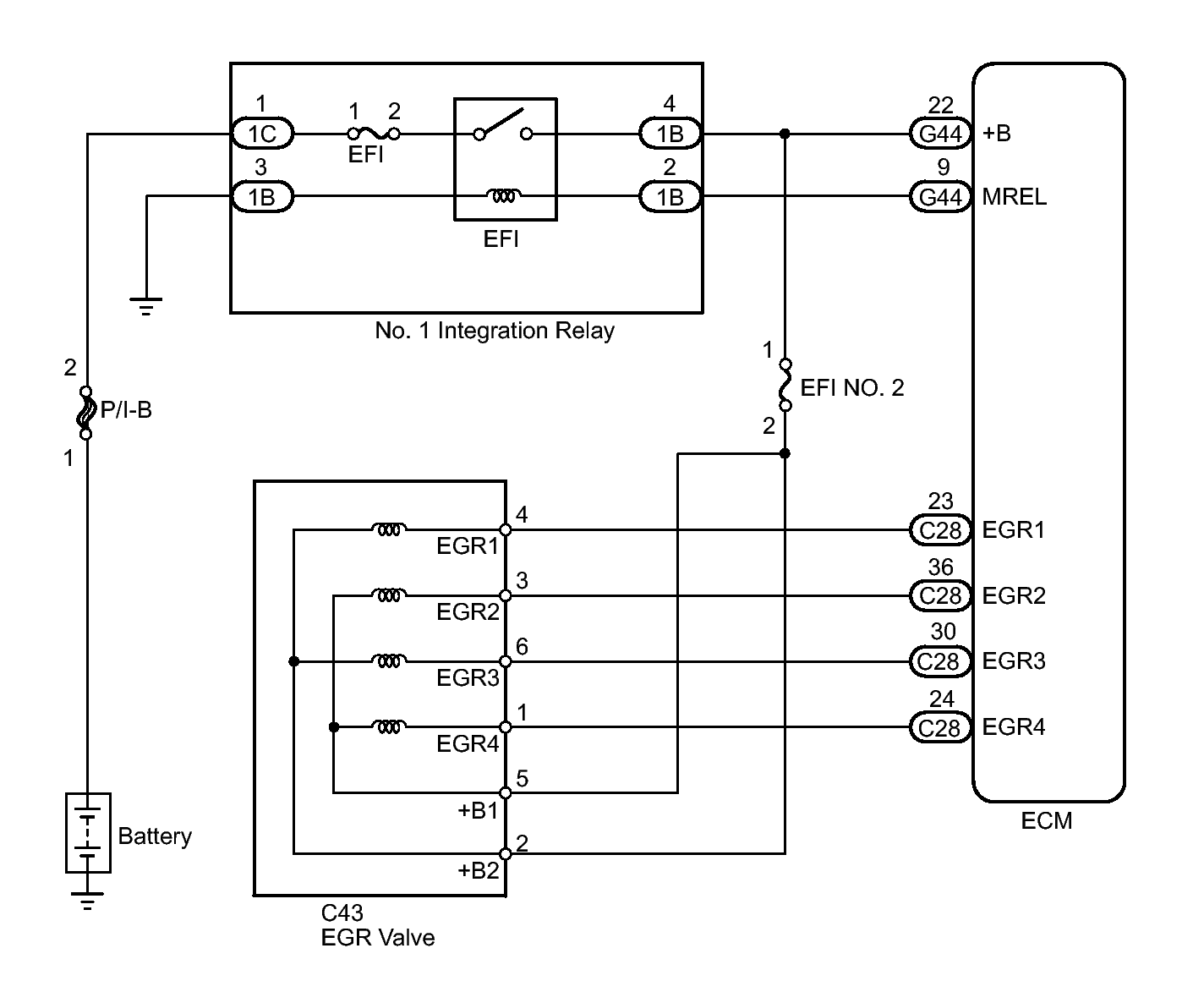

Fig 1: EGR Valve Circuit Wiring Diagram

GTY357685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
