Display does not Dim when Light Control Switch is Turned ON: Procedure

CHECK IMAGE QUALITY SETTING

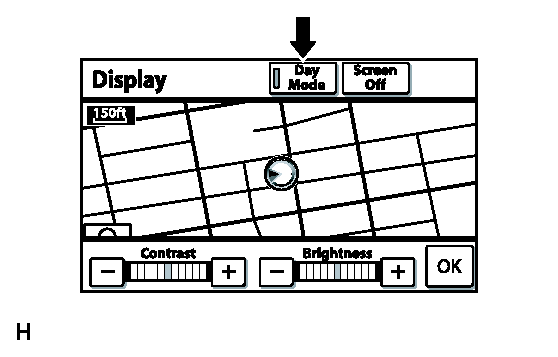

Enter the display adjustment screen by pressing the "DISP" switch.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Turn the light control switch to the TAIL position.
Check if "Day Mode" on the display adjustment screen is off.
OK

"Day Mode" is off.

NG → TURN "Day Mode" SETTING OFF

OK: Go to next step

CHECK VEHICLE SIGNAL

Enter the "Display Check" mode and select "Vehicle Signal Check". Refer to OPERATION CHECK [06/2012 - ] .

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check that the display changes between ON and OFF according to the light control switch operation.

Light Control Switch Condition	Display
TAIL or HEAD	ON
OFF	OFF

HINT:

The display is updated once per second. As a result, it is normal for the display to lag behind the actual switch operation.

NG → See step 3

OK → See step 4

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE [06/2012 - ]
REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY. Refer to REMOVAL [06/2012 - ]
