DTC U0132: Lost Communication with Ride Level Control Module: Procedure

1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and branch wire.
   WARNING:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

   NOTE:

   • w/ Navigation System:

     After the engine switch is turned off, the display and navigation module display records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

     Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal

     Condition	Waiting Time
     Vehicle enrolled in safety connect system	6 minutes
     Vehicle not enrolled in safety connect system	1 minute

   • When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [06/2012 - ] .

NEXT: Go to next step

1. Disconnect the A40 suspension control ECU connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Switch Condition	Specified Condition
   A40-7 (CANH) - A40-8 (CANL)	Engine switch off	54 to 69 Ω

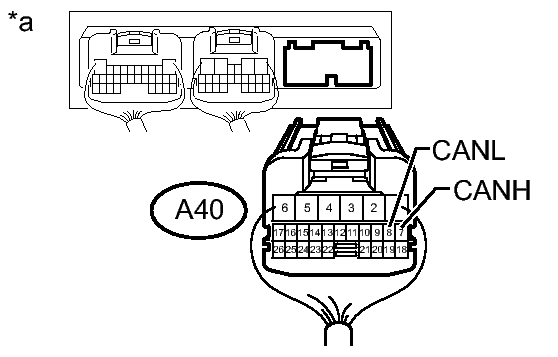

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Suspension Control ECU)

NG → REPAIR OR REPLACE SUSPENSION CONTROL ECU CAN BRANCH WIRE OR CONNECTOR (CANH, CANL)

OK: Go to next step

1. Connect the cable to the negative (-) battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [06/2012 - ] .

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   A40-5 (GND) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.
   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   A40-1 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   A40-3 (B) - Body ground	Always	11 to 14 V

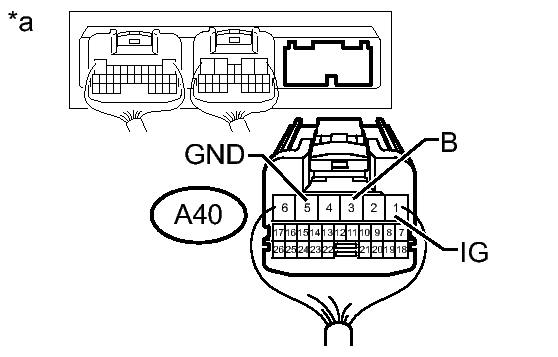

   TEXT IN ILLUSTRATION



   *a	Rear view of wire harness connector (to Suspension Control ECU)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
