Illumination and Taillight: Notes

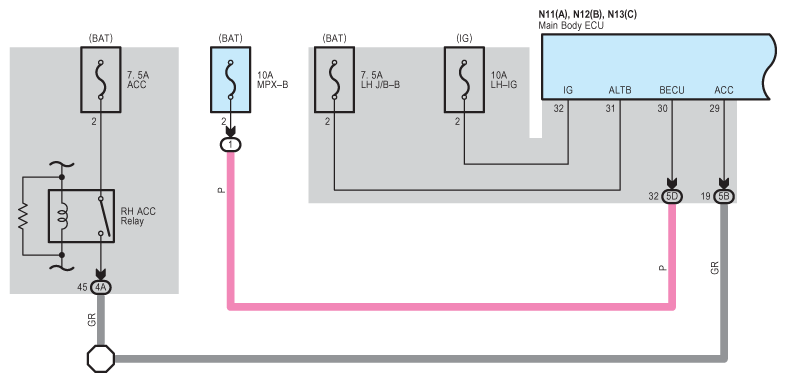

Fig 1: Illumination And Taillight Wiring Diagram (1 Of 20)

G09117824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

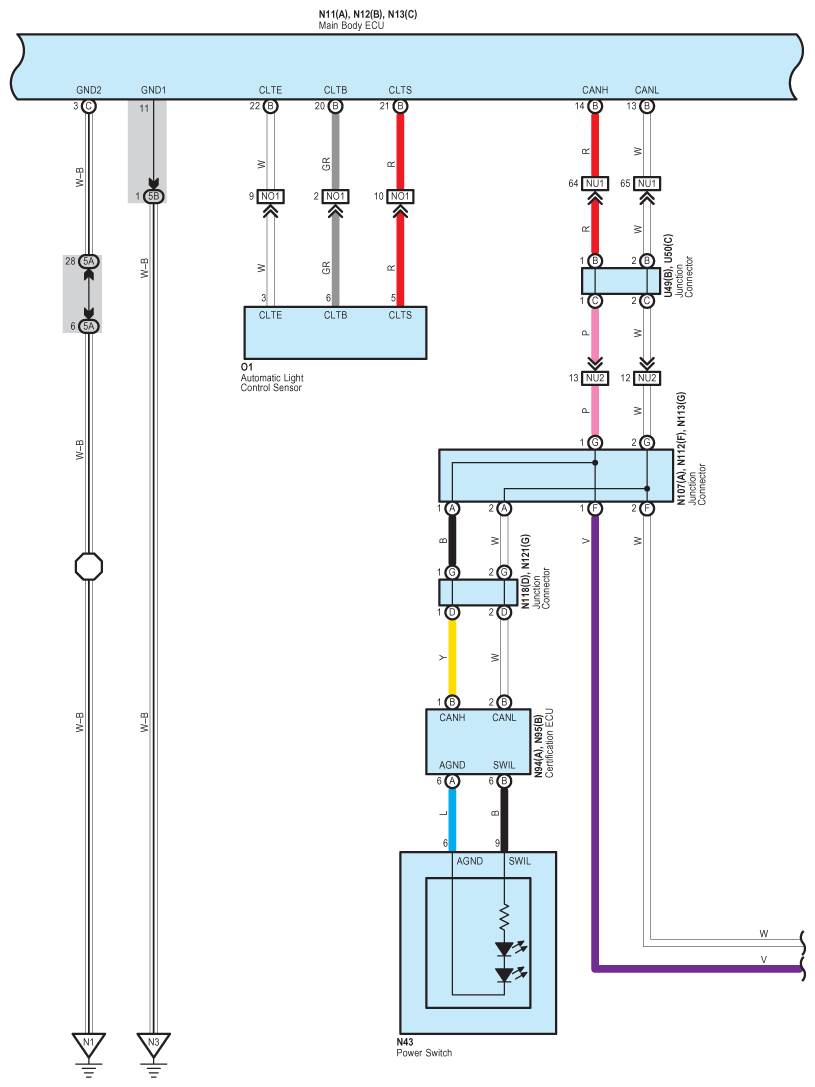

Fig 2: Illumination And Taillight Wiring Diagram (2 Of 20)

G09117825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

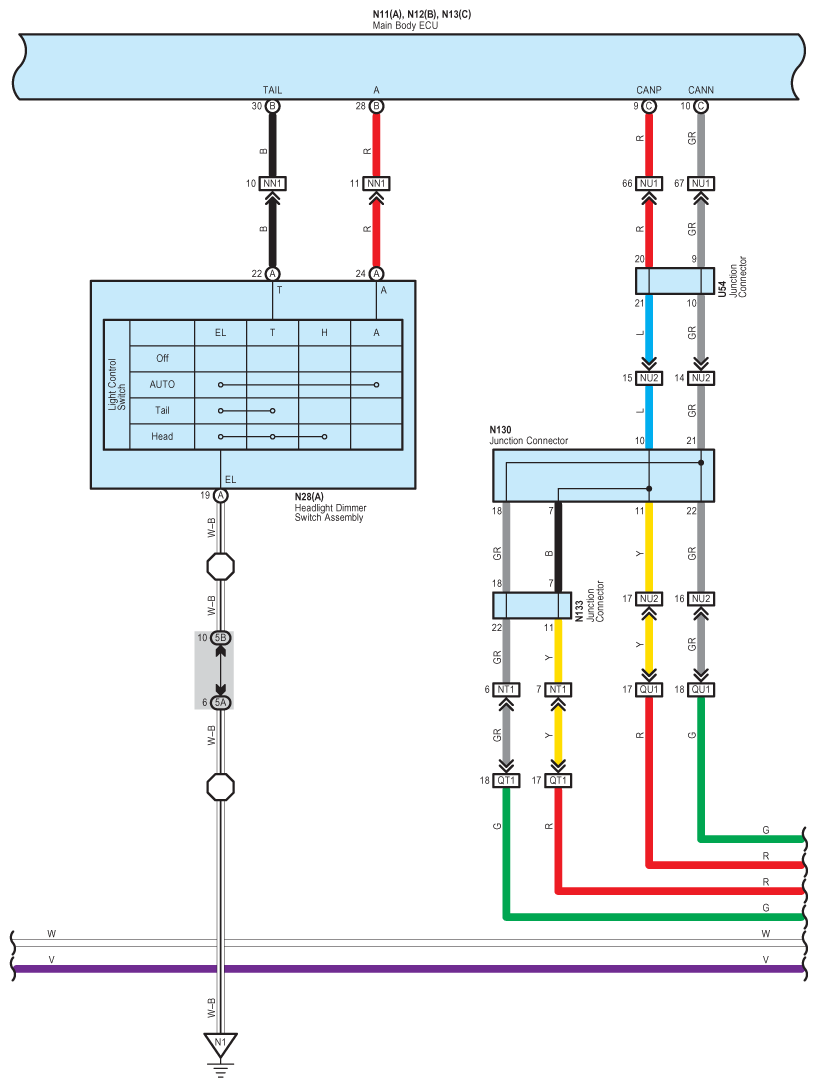

Fig 3: Illumination And Taillight Wiring Diagram (3 Of 20)

G09117826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

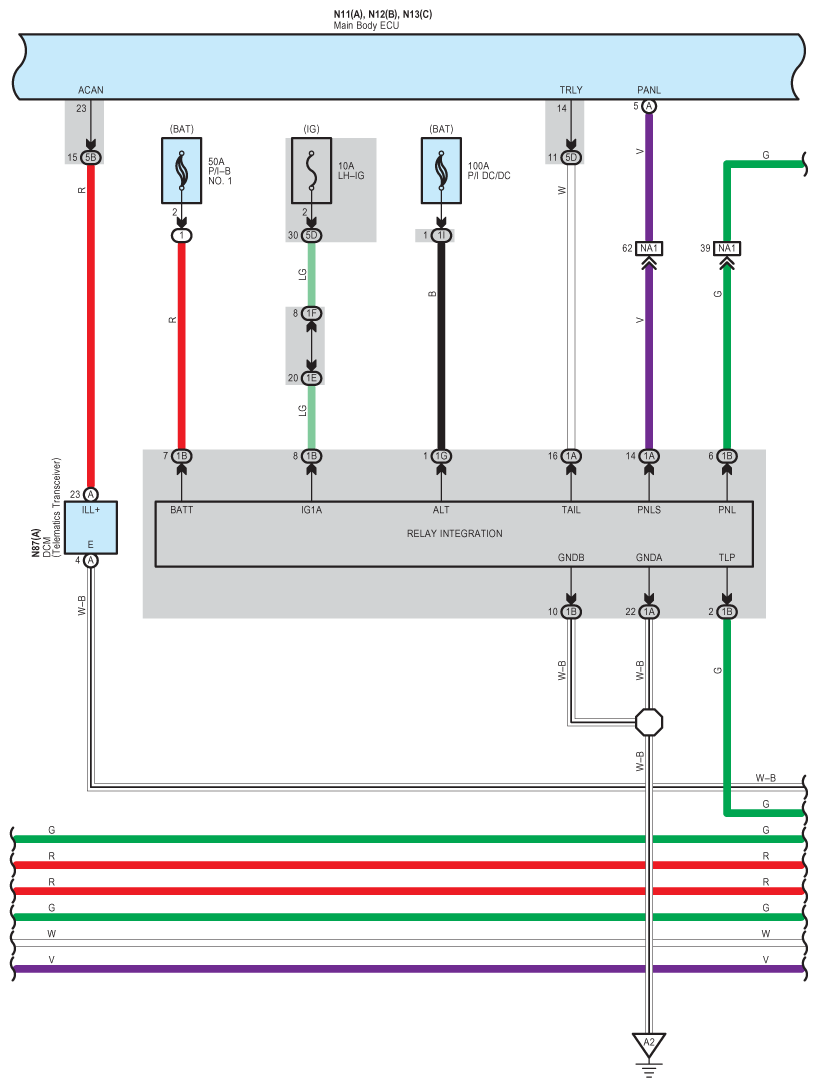

Fig 4: Illumination And Taillight Wiring Diagram (4 Of 20)

G09117827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

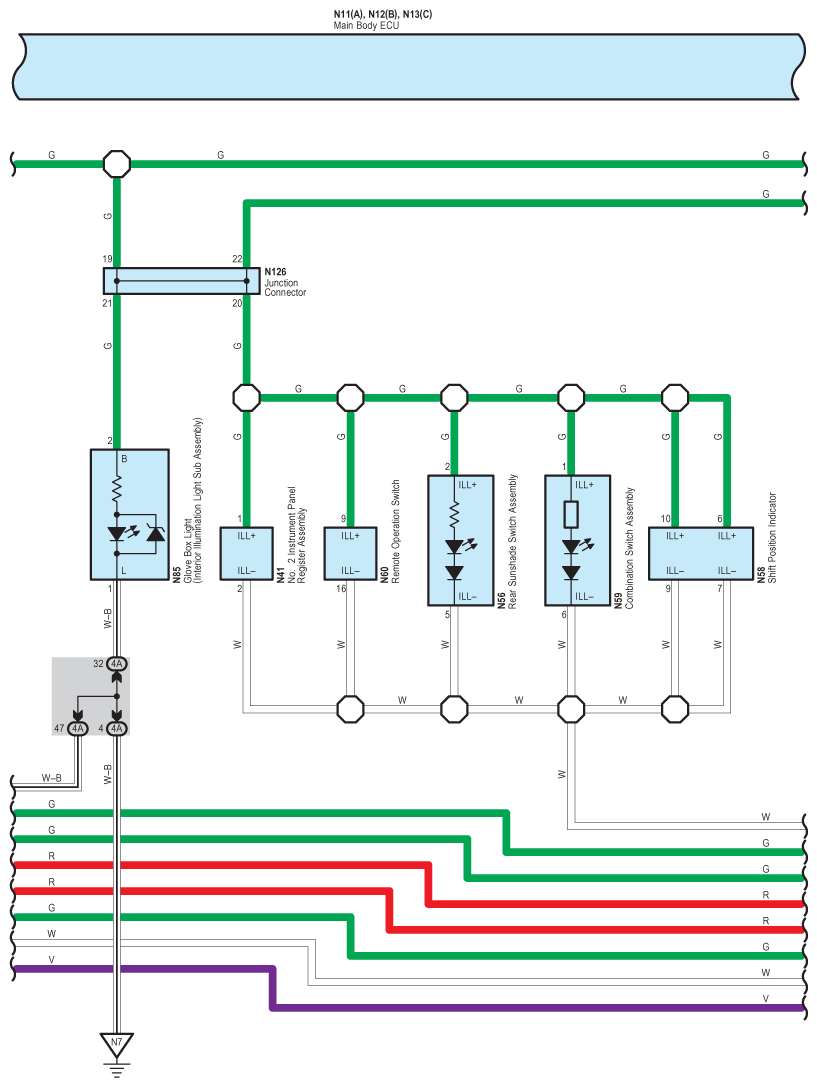

Fig 5: Illumination And Taillight Wiring Diagram (5 Of 20)

G09117828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

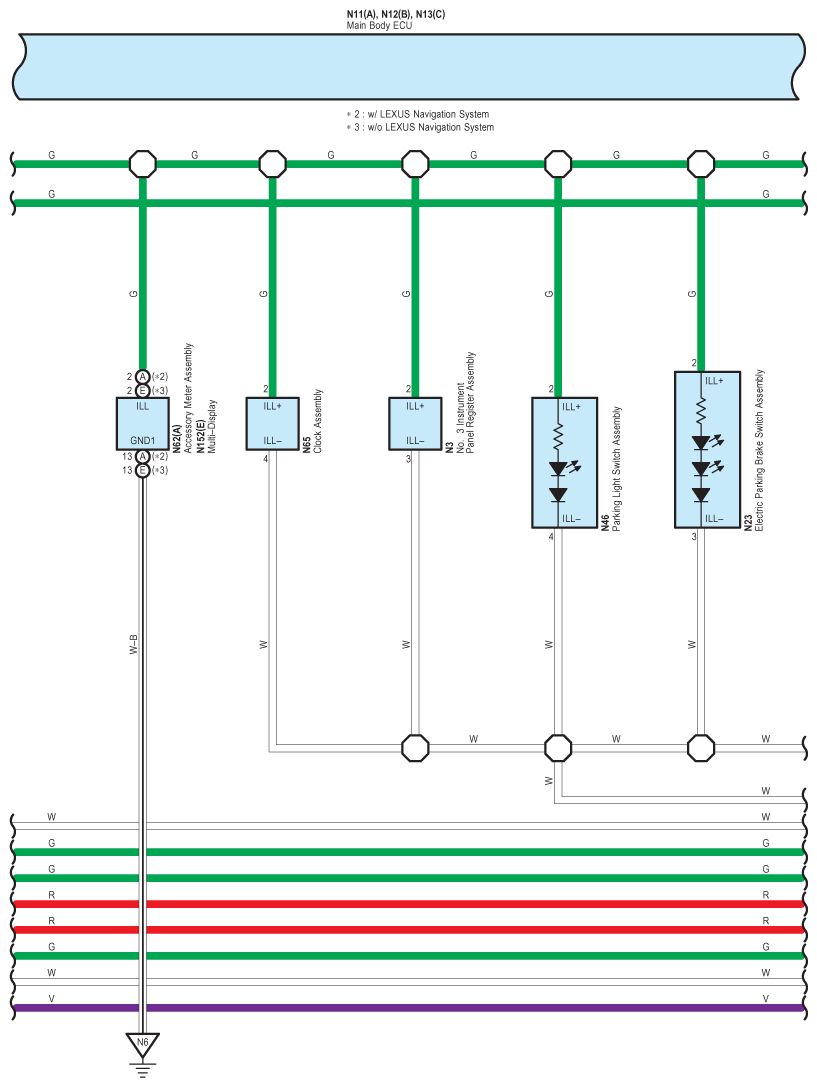

Fig 6: Illumination And Taillight Wiring Diagram (6 Of 20)

G09117829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

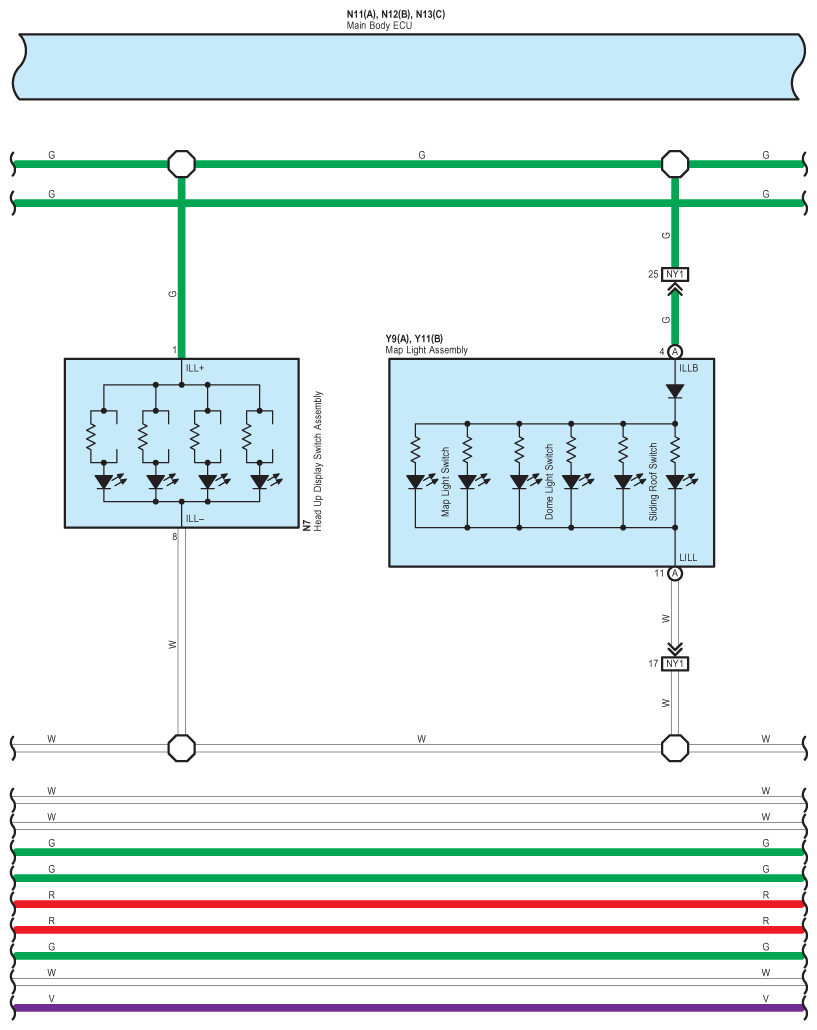

Fig 7: Illumination And Taillight Wiring Diagram (7 Of 20)

G09117830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

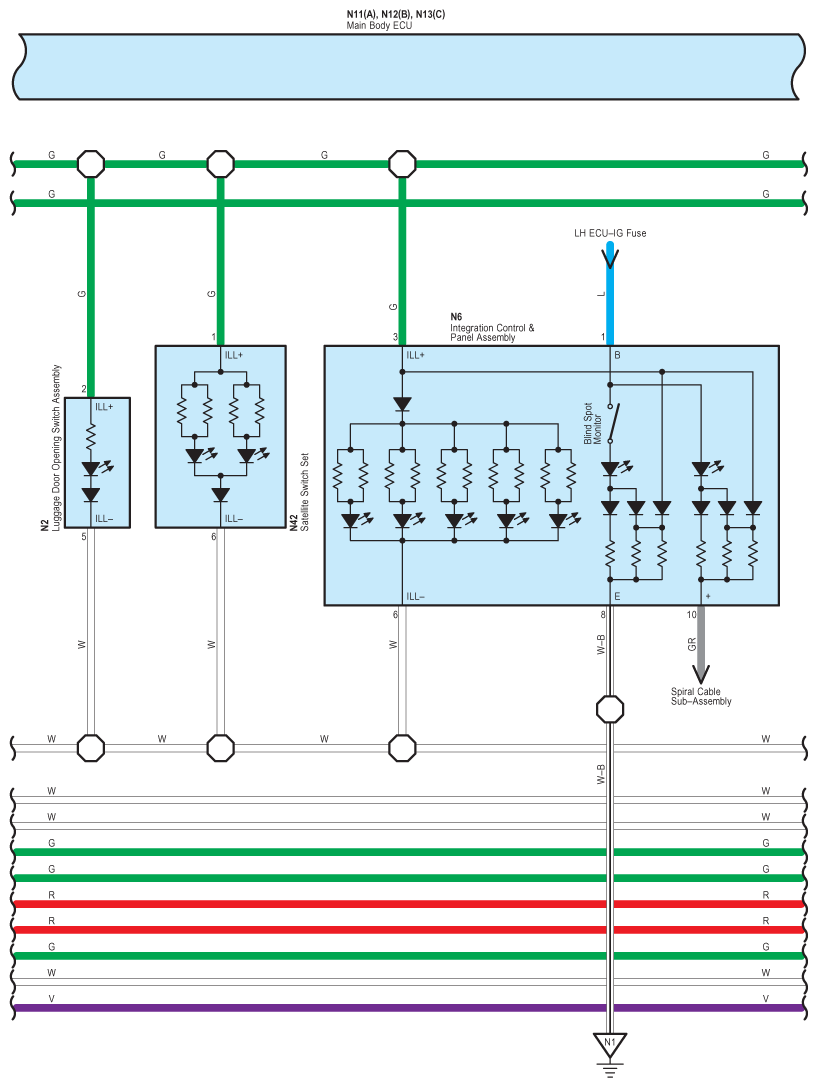

Fig 8: Illumination And Taillight Wiring Diagram (8 Of 20)

G09117831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

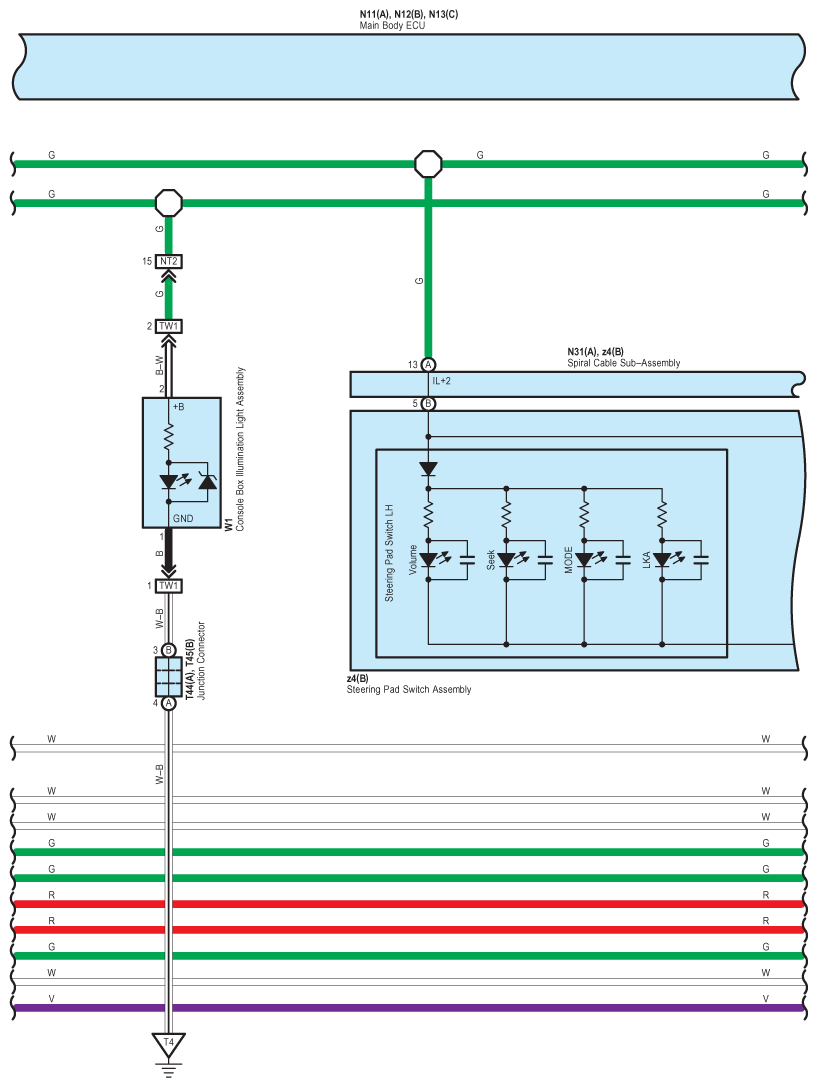

Fig 9: Illumination And Taillight Wiring Diagram (9 Of 20)

G09117832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

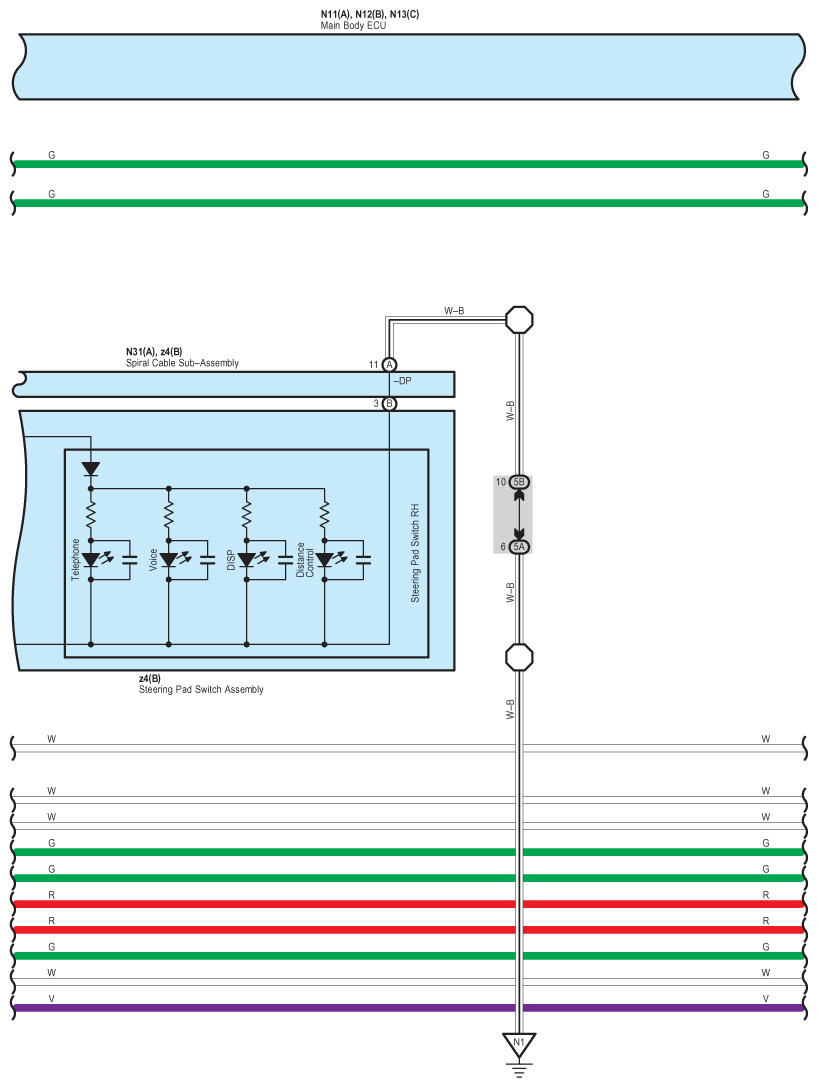

Fig 10: Illumination And Taillight Wiring Diagram (10 Of 20)

G09117833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

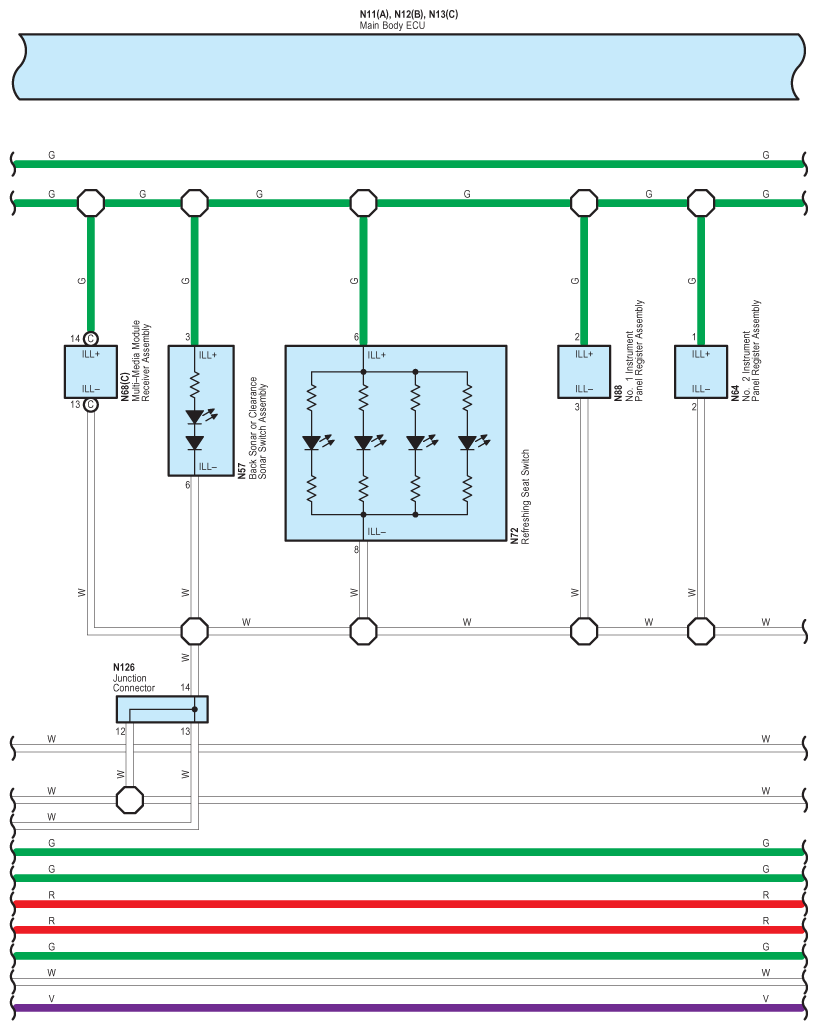

Fig 11: Illumination And Taillight Wiring Diagram (11 Of 20)

G09117834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

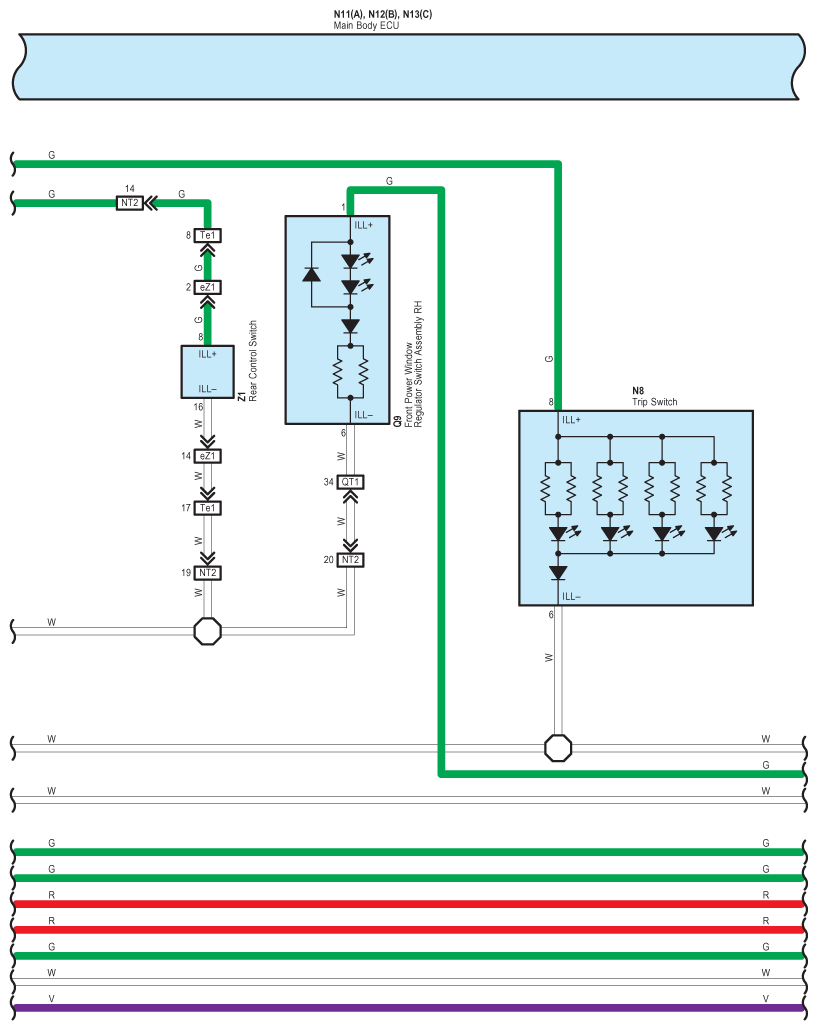

Fig 12: Illumination And Taillight Wiring Diagram (12 Of 20)

G09117835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

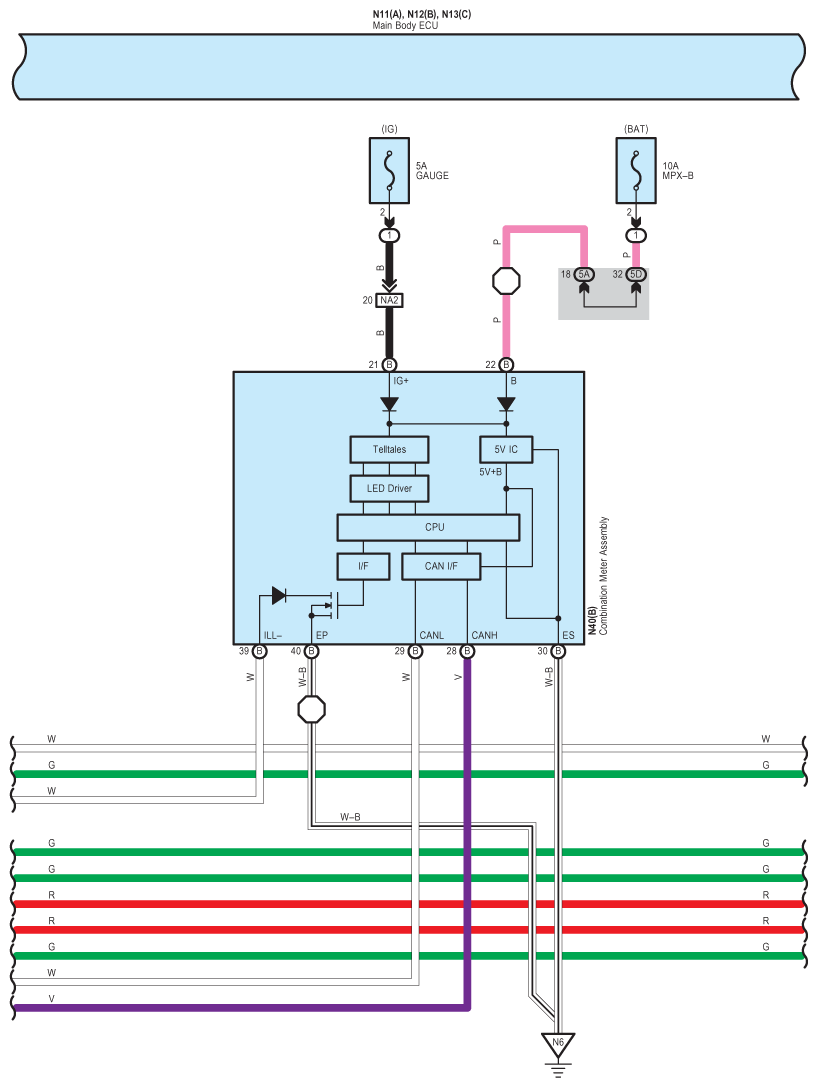

Fig 13: Illumination And Taillight Wiring Diagram (13 Of 20)

G09117836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

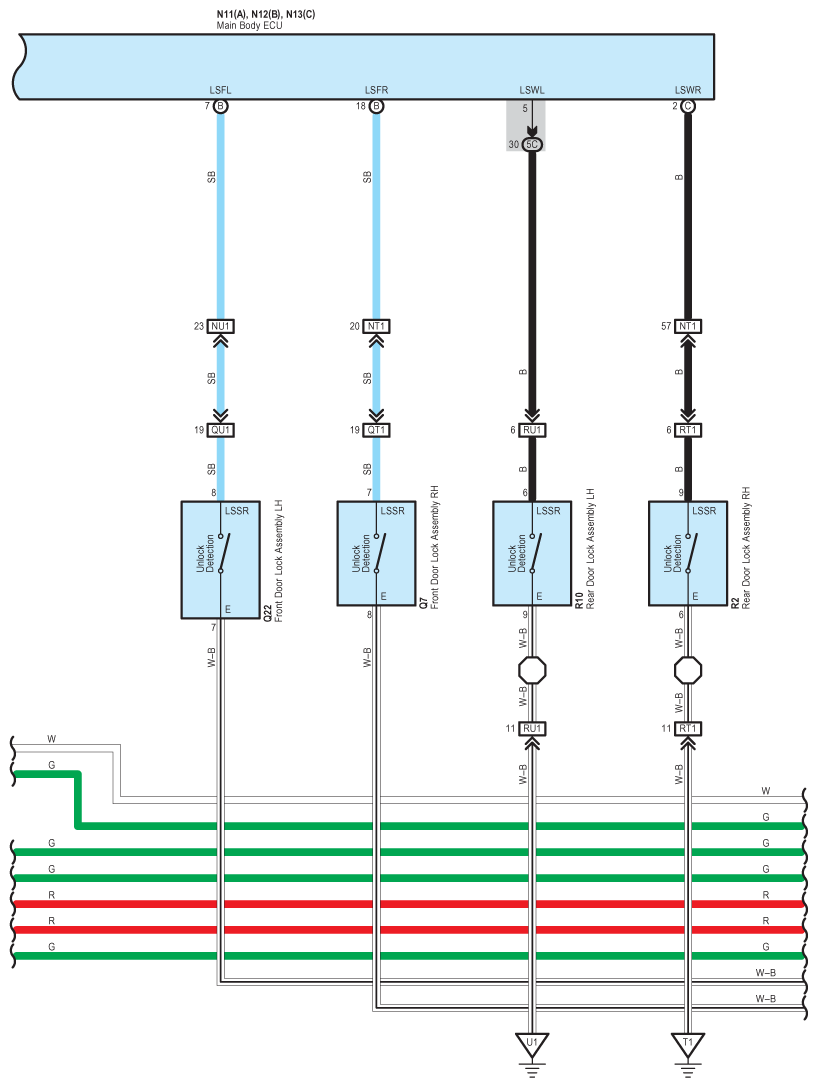

Fig 14: Illumination And Taillight Wiring Diagram (14 Of 20)

G09117837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

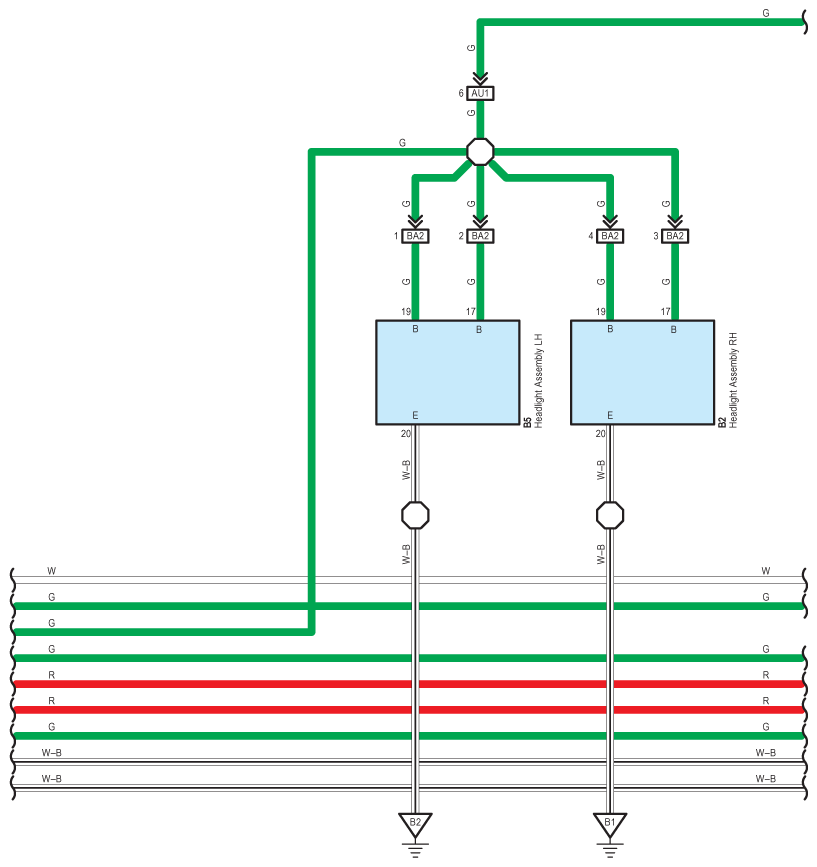

Fig 15: Illumination And Taillight Wiring Diagram (15 Of 20)

G09117838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

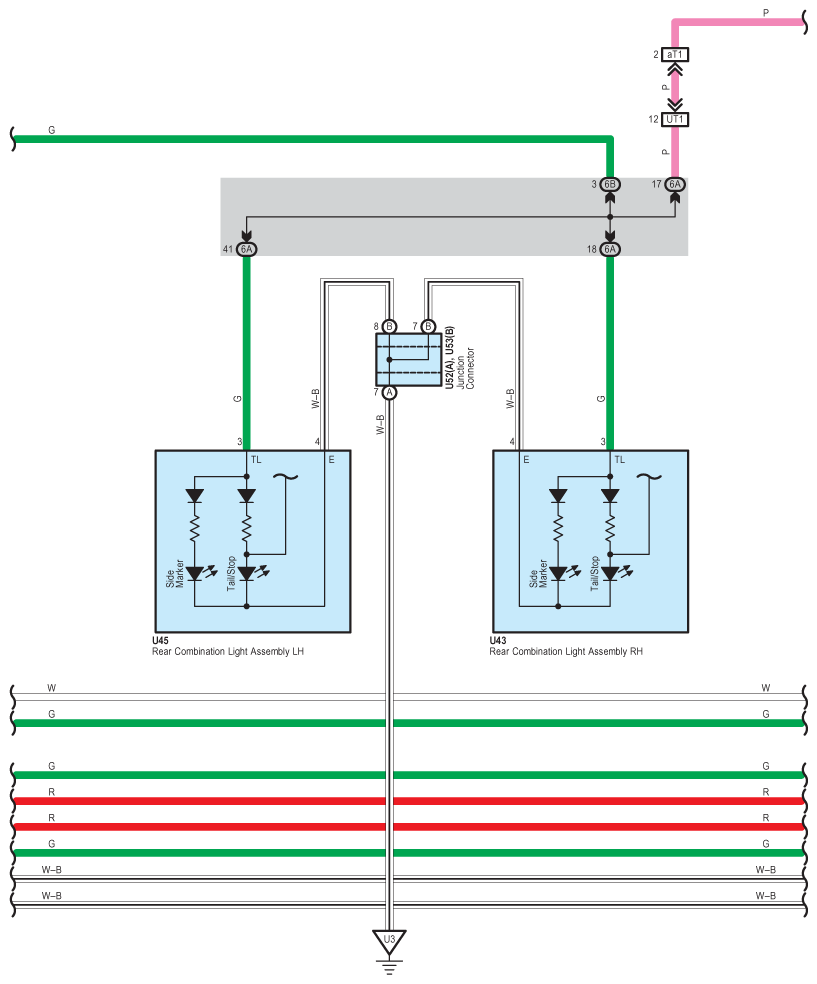

Fig 16: Illumination And Taillight Wiring Diagram (16 Of 20)

G09117839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

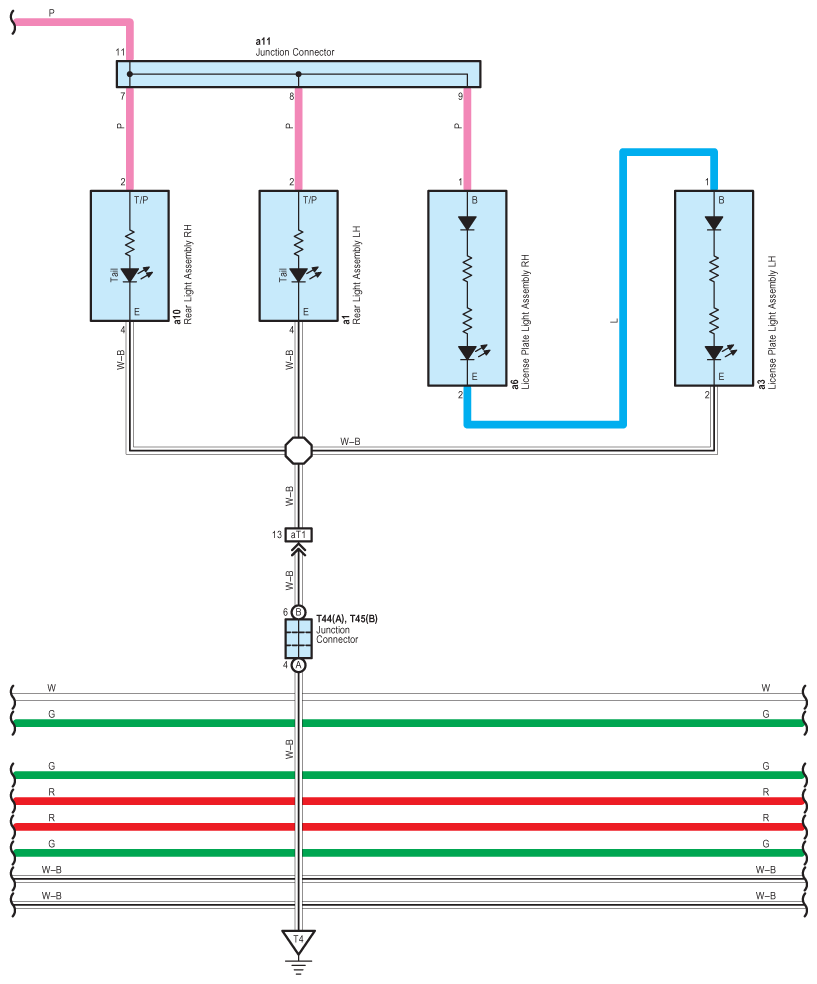

Fig 17: Illumination And Taillight Wiring Diagram (17 Of 20)

G09117840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

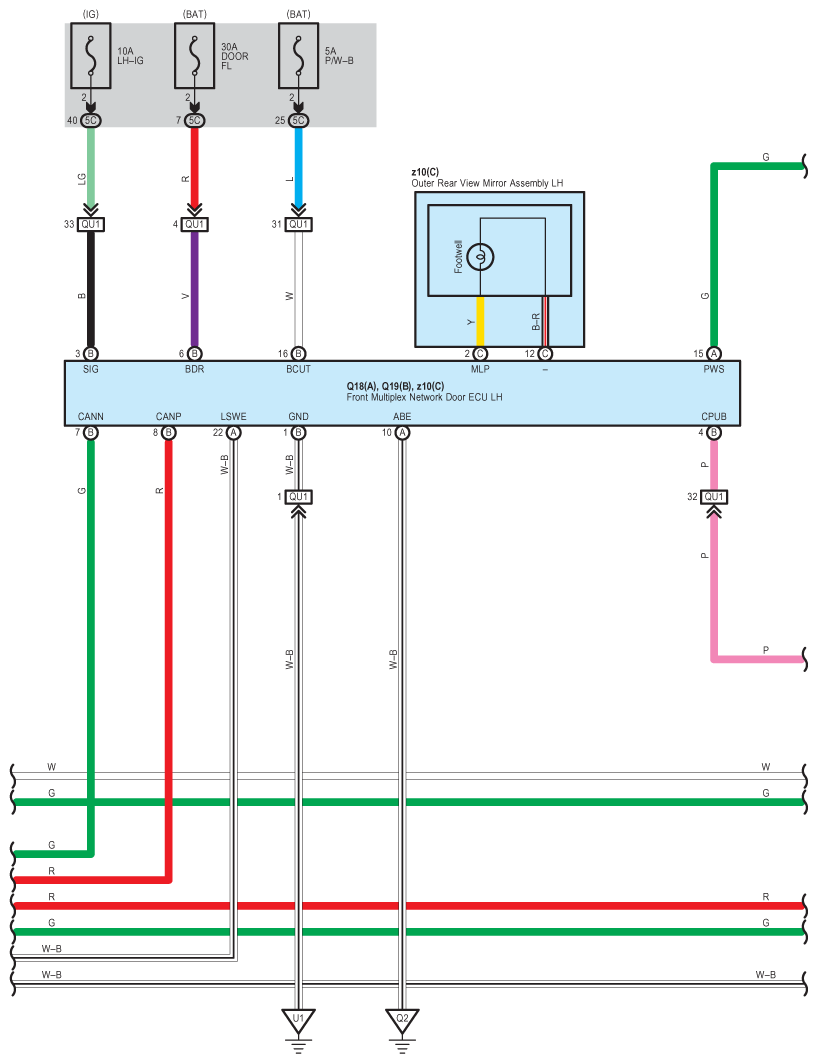

Fig 18: Illumination And Taillight Wiring Diagram (18 Of 20)

G09117841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

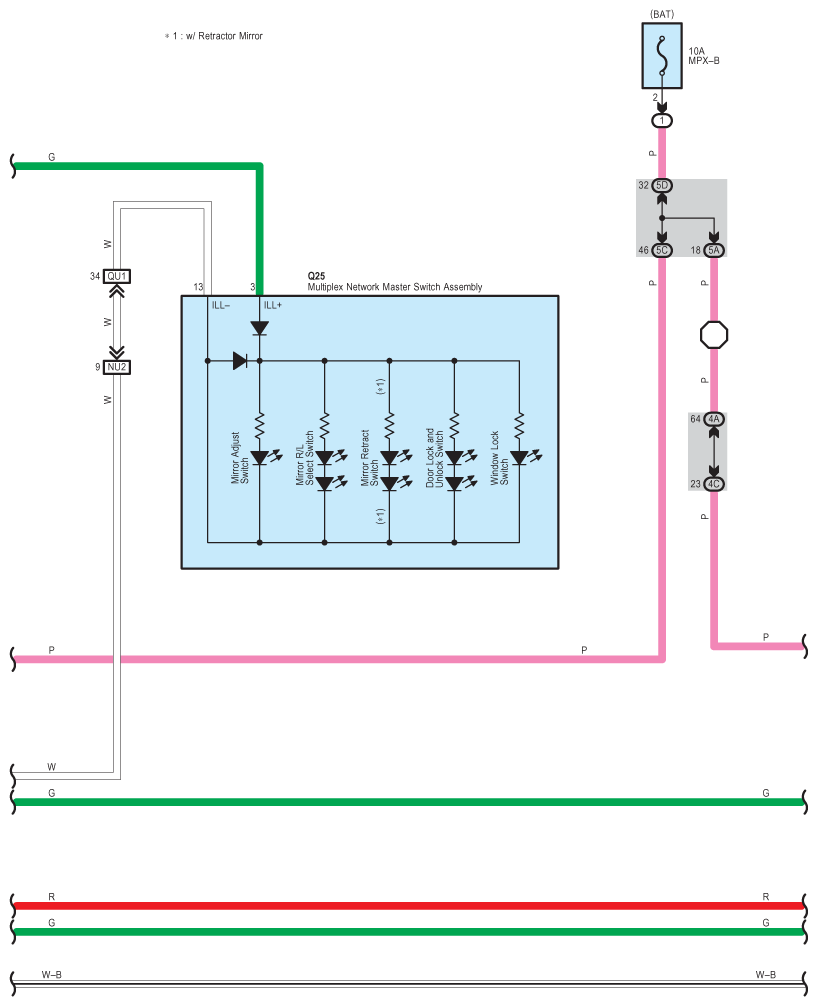

Fig 19: Illumination And Taillight Wiring Diagram (19 Of 20)

G09117842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

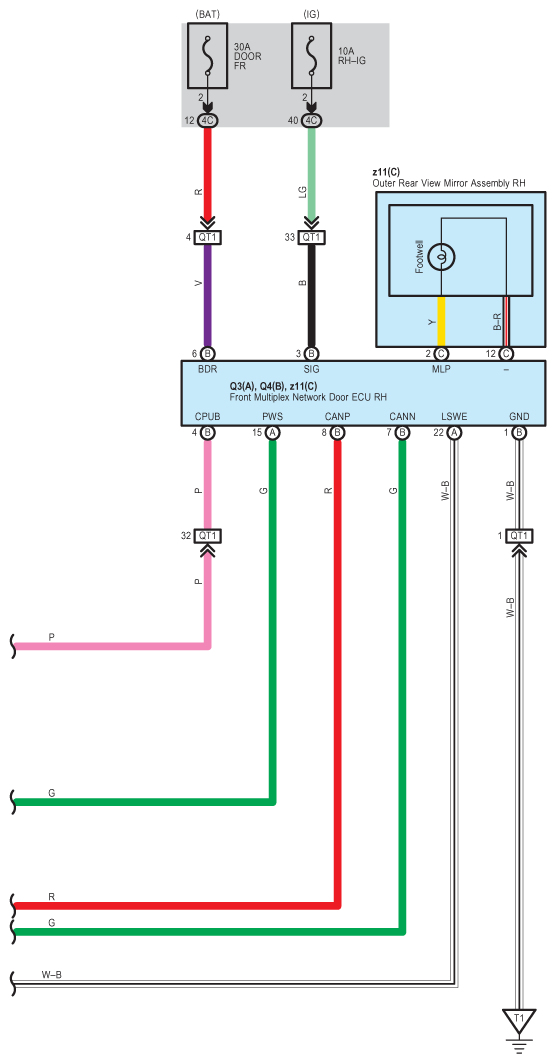

Fig 20: Illumination And Taillight Wiring Diagram (20 Of 20)

G09117843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
