Unable to Unlock Steering Wheel (Hybrid Control System cannot Start): Wiring Diagram

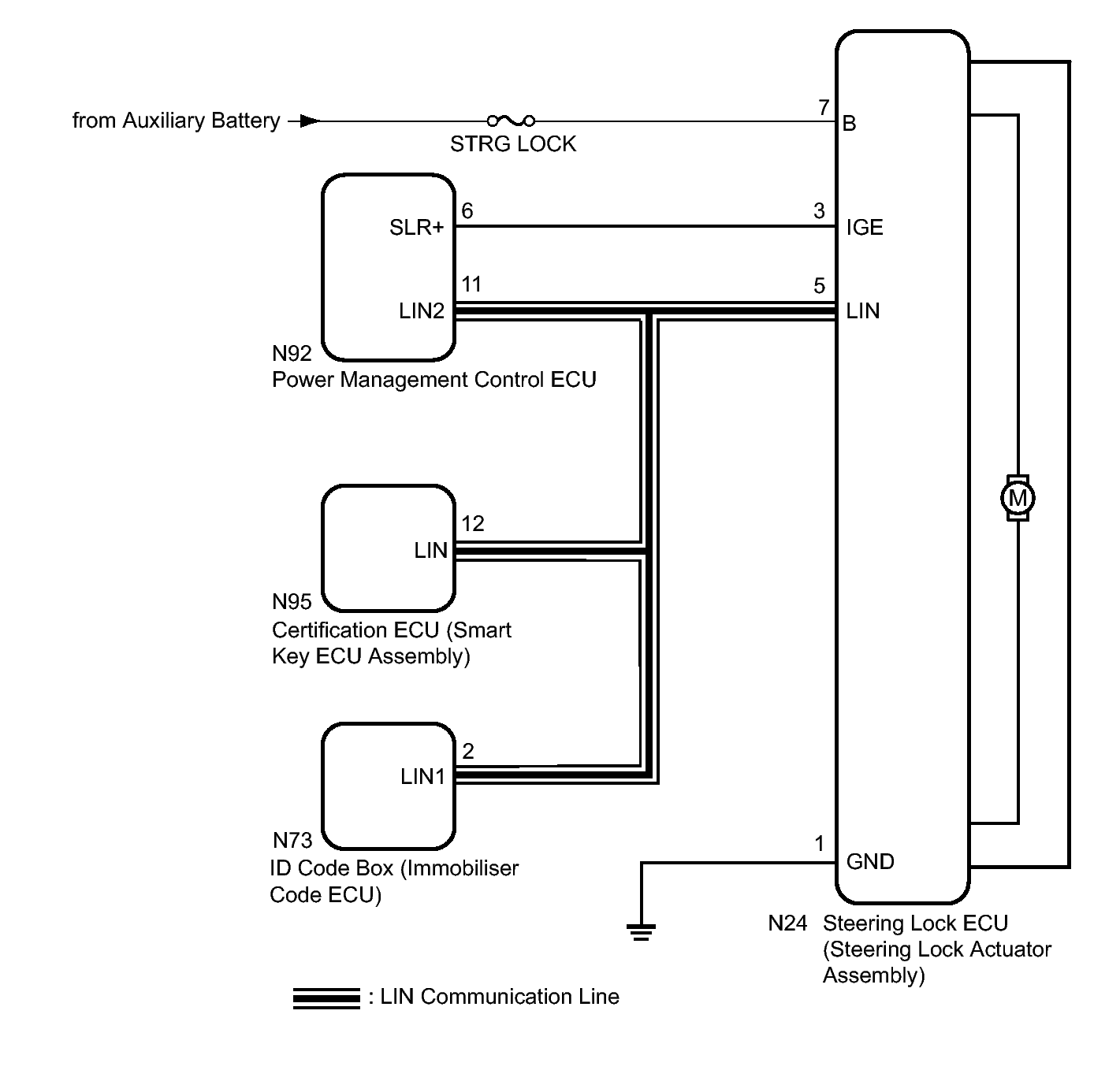

Fig 1: Steering Wheel Wiring Diagram

GTY408896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
