Home >> Lexus >> 2013 >> GS 450h >> Repair and Diagnosis (Single Page) >> Steering >> Steering Column >> Steering Column (Service Information) >> Steering Column Assembly >> Components [03/2012 - ] >> Illustration

Components [03/2012 - ]: Illustration

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY397950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

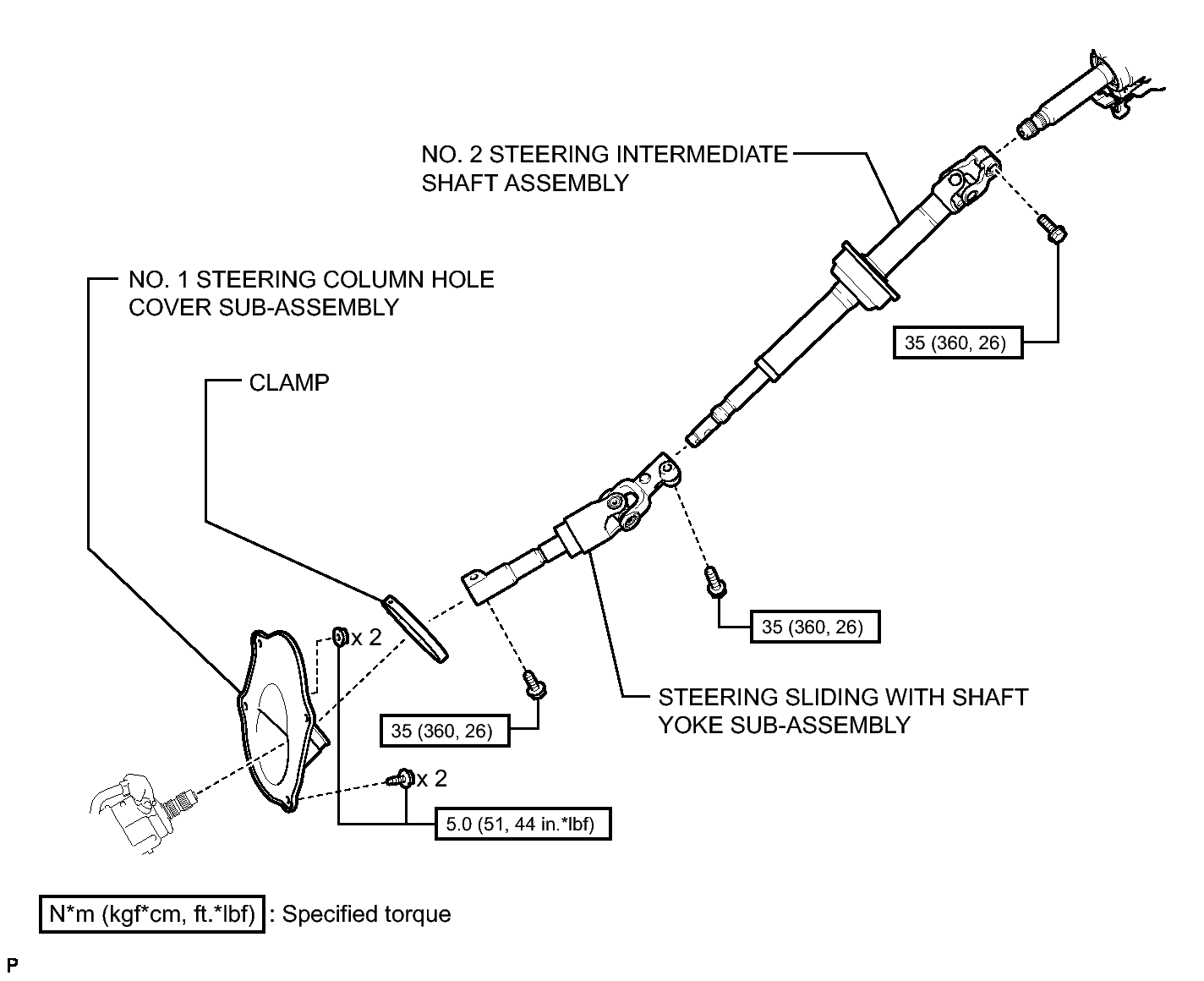

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY397263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
