Fusible Link Block Assembly Quarter Panel LH: Notes

For additional information, refer to Figure.

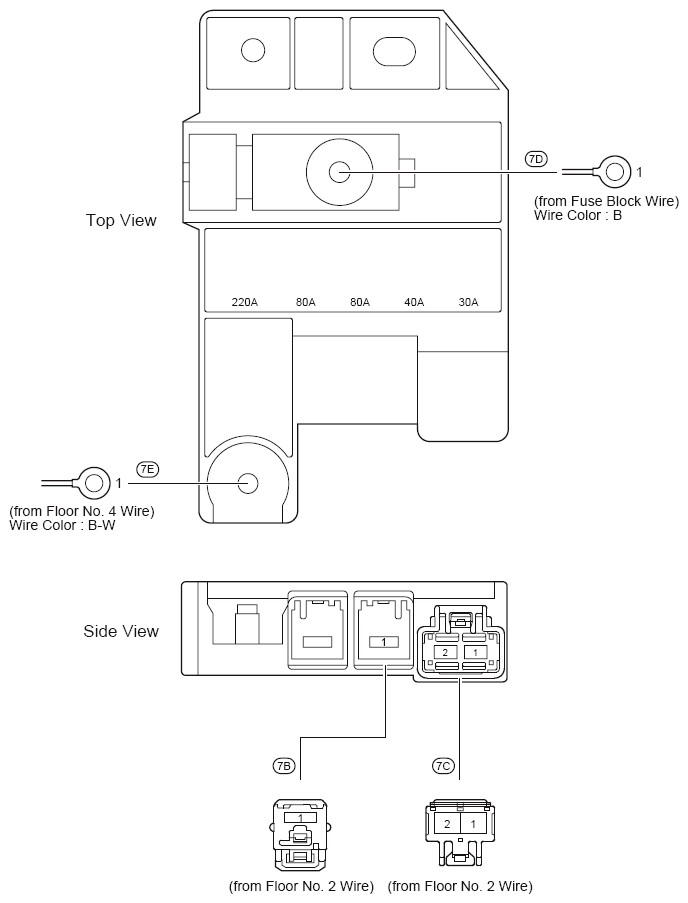

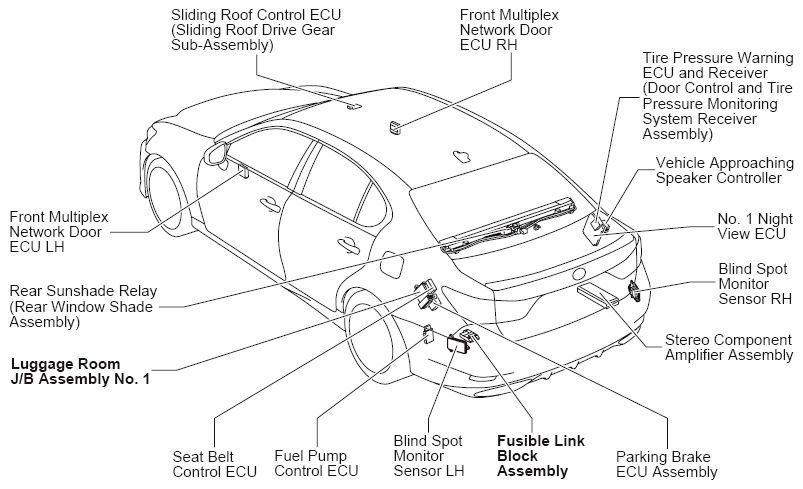

Fig 1: Fusible Link Block Assembly Fuse Identification
G09117611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fusible Link Block Assembly Fuse Identification Legend

Fuse System
30A EPB Electric Parking Brake
80A EPS EPS
