Room Oscillator does not Recognize Key: Wiring Diagram

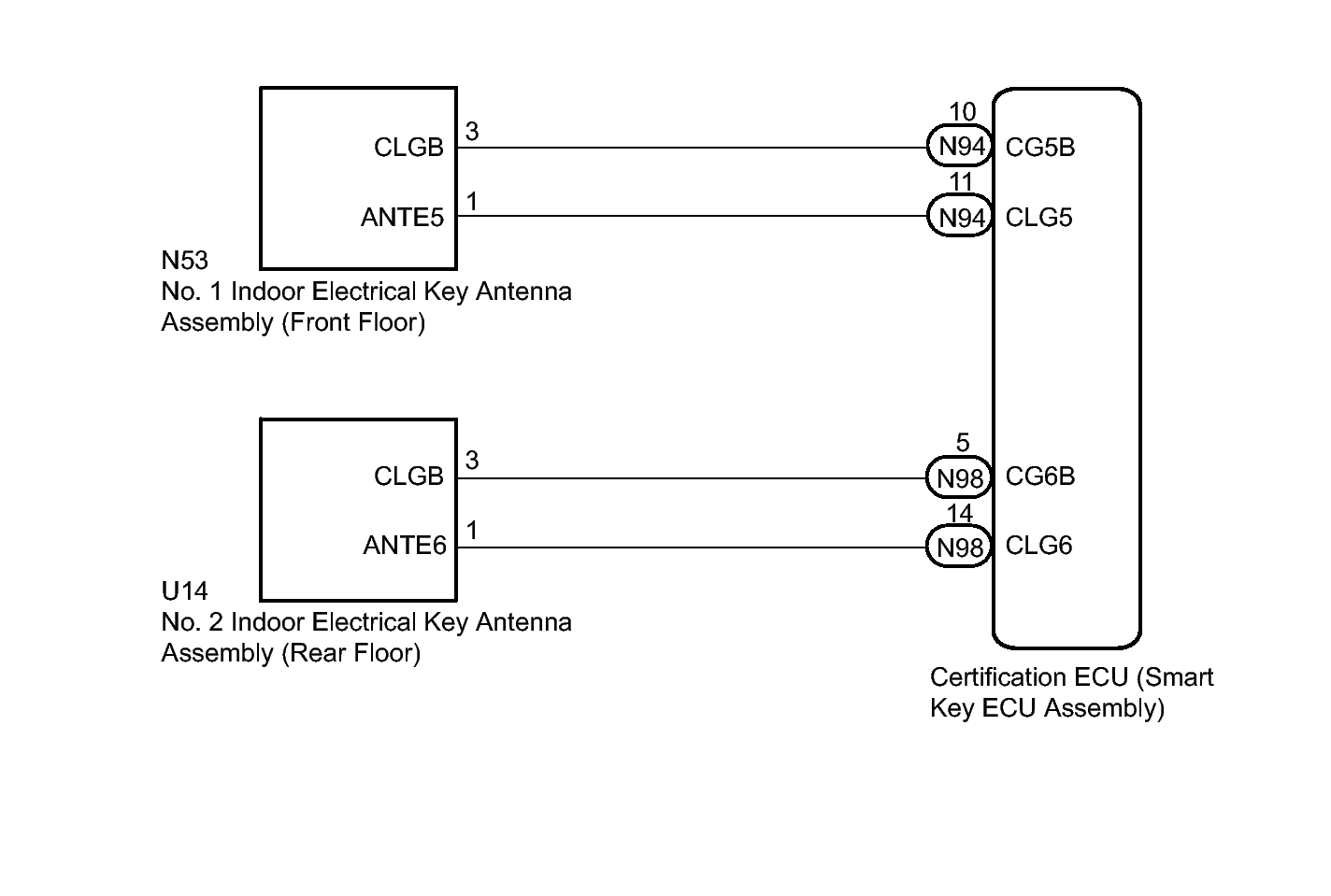

Fig 1: Room Oscillator Wiring Diagram

GTY408986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
