DTC U0122: Lost Communication with Vehicle Stability Control Module; DTC U0129: Lost Communication with Brake System Control Module: Wiring Diagram

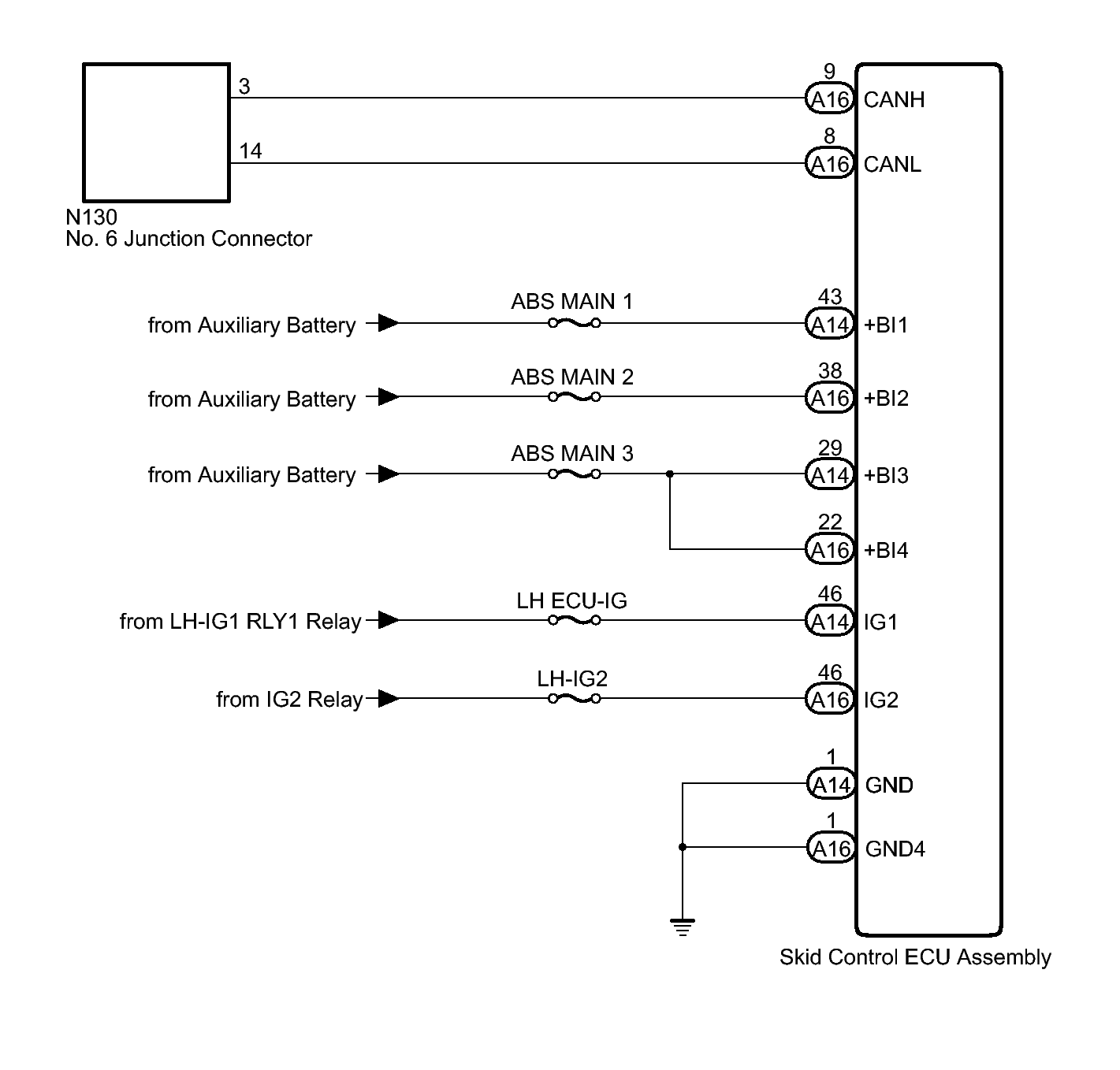

Fig 1: Skid Control ECU Assembly Wiring Diagram
GTY399639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
