New Key cannot be Registered: Wiring Diagram

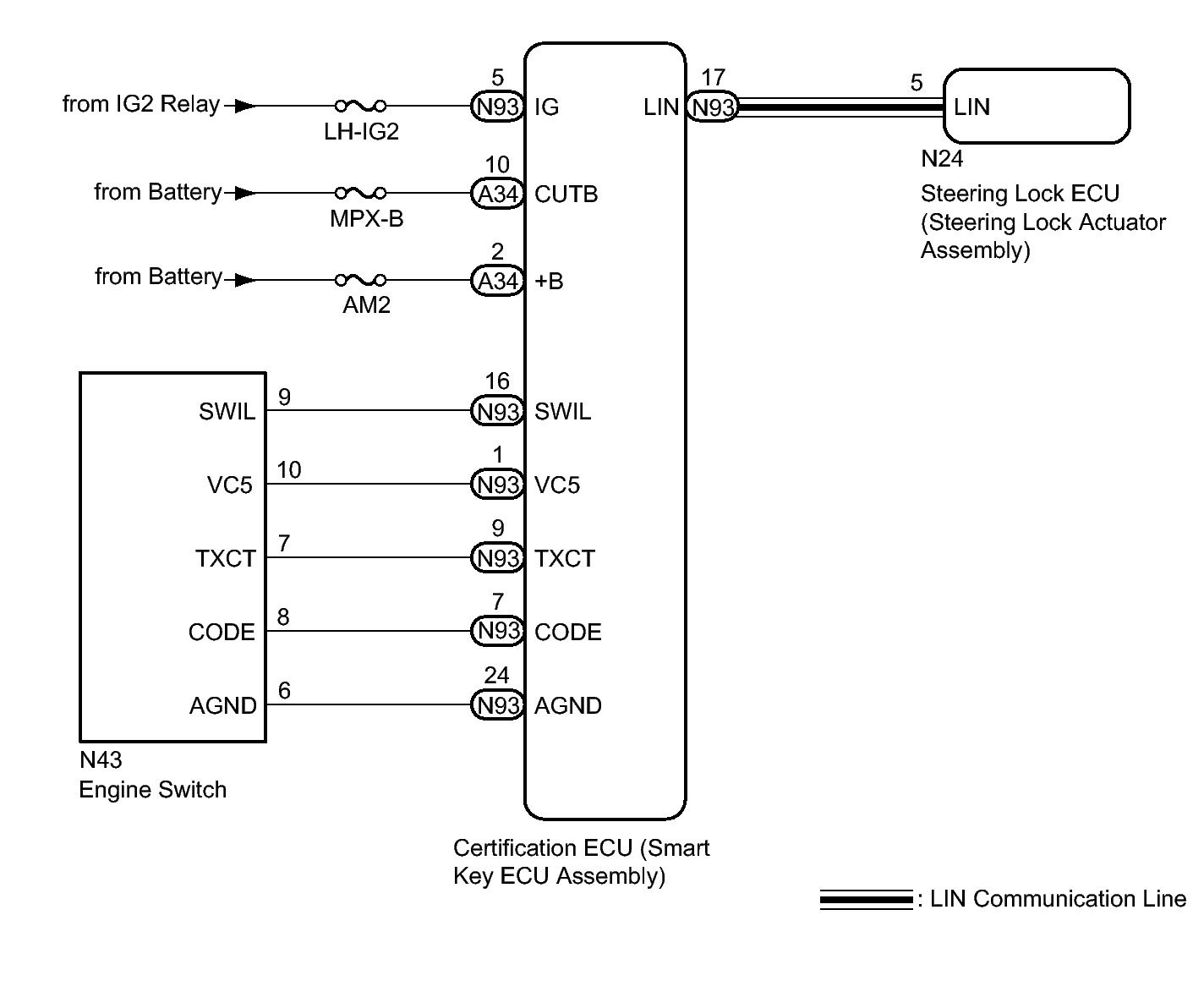

Fig 1: Certification ECU (Smart Key ECU Assembly) Wiring Diagram

GTY397802

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
