All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

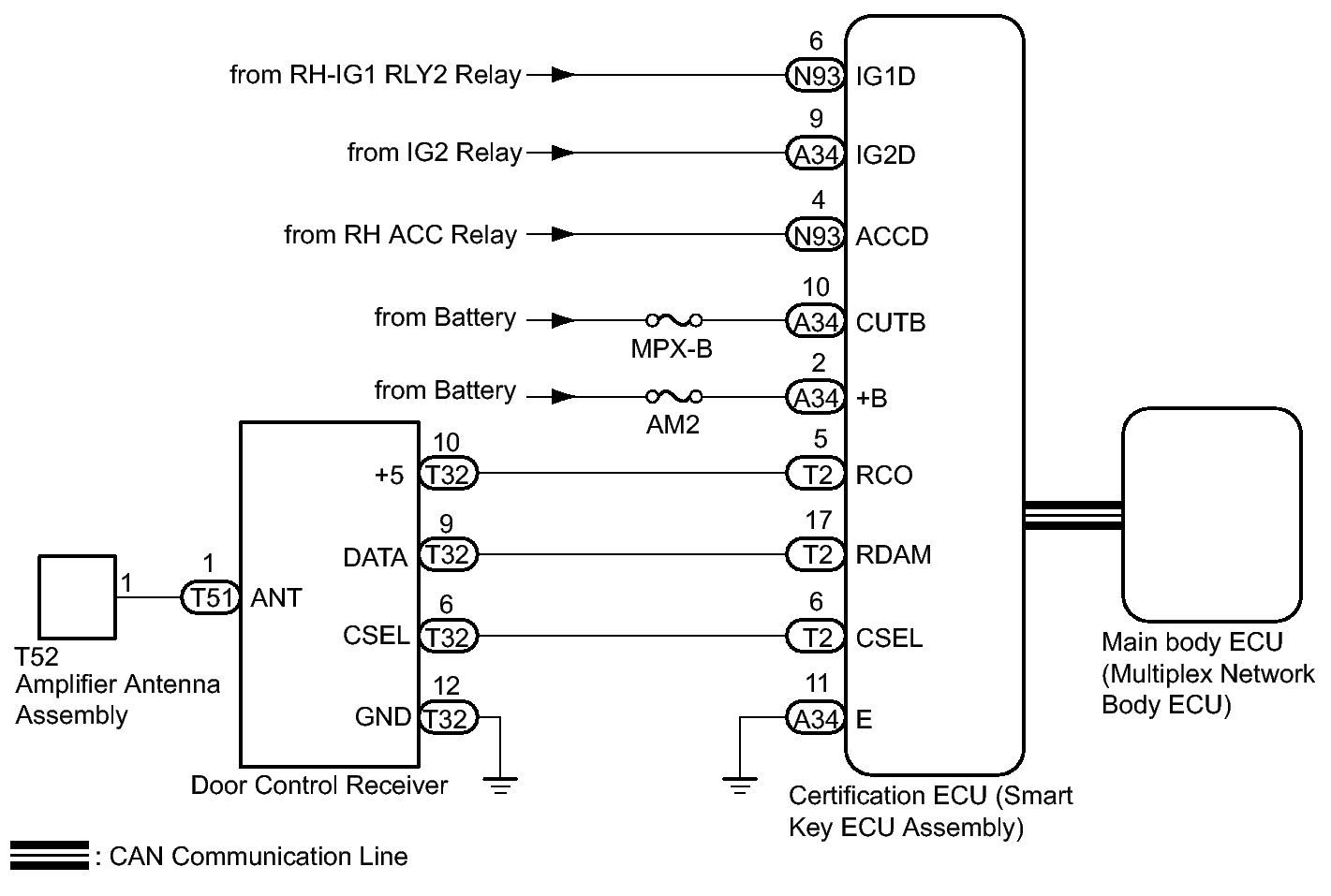

Fig 1: All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate Wiring Diagram
GTY408855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
