Components [06/2012 - ]: Illustration

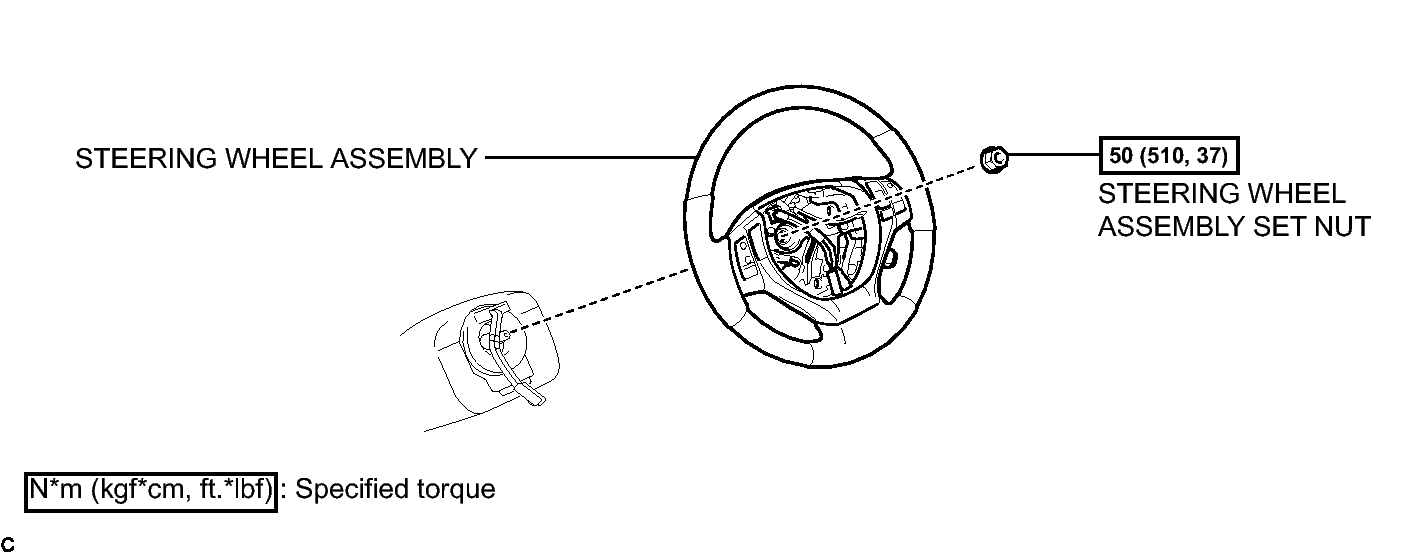

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 9)
GTY405325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (2 Of 9)
GTY412427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (3 Of 9)
GTY412332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

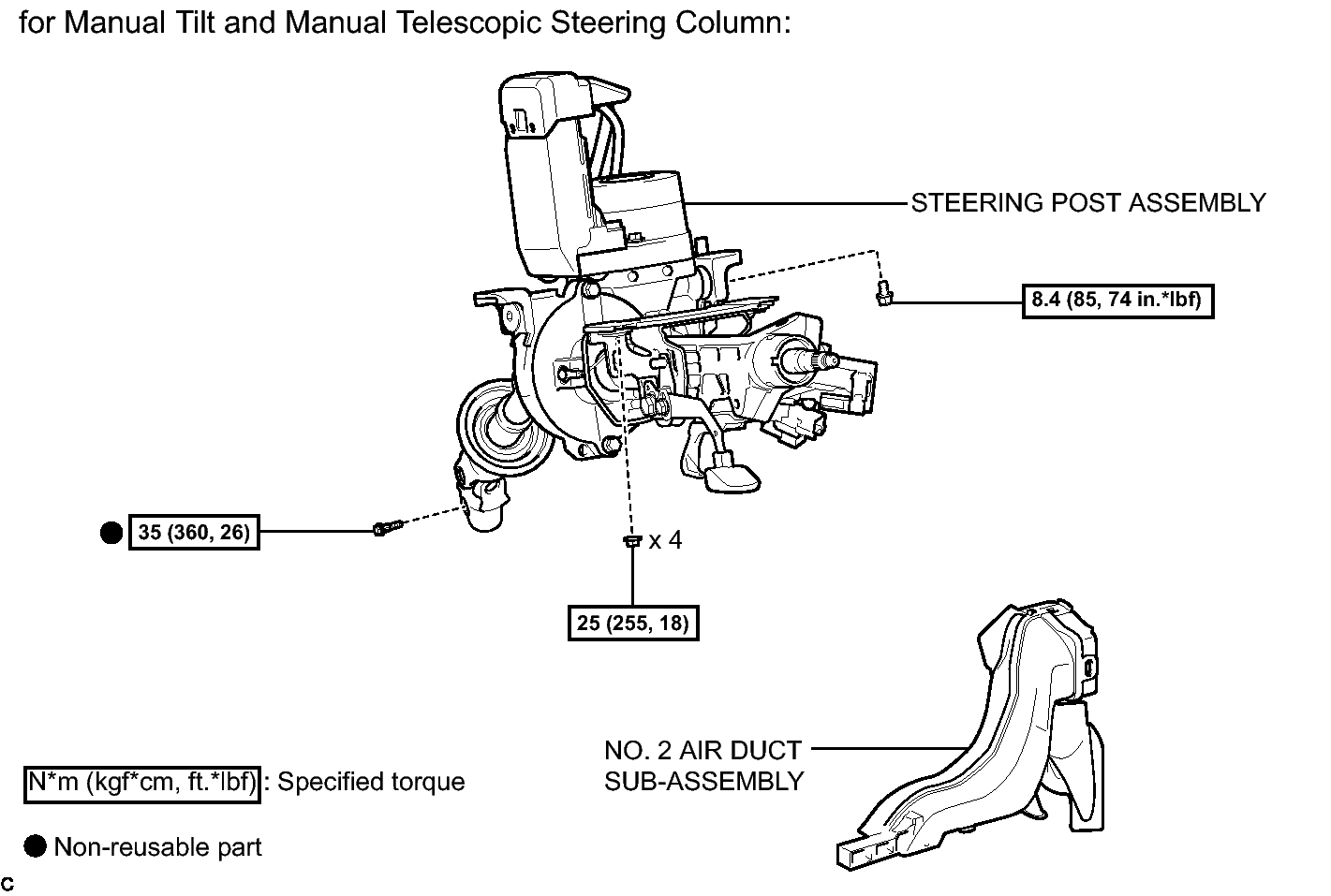

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (4 Of 9)
GTY400826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (5 Of 9)
GTY395832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

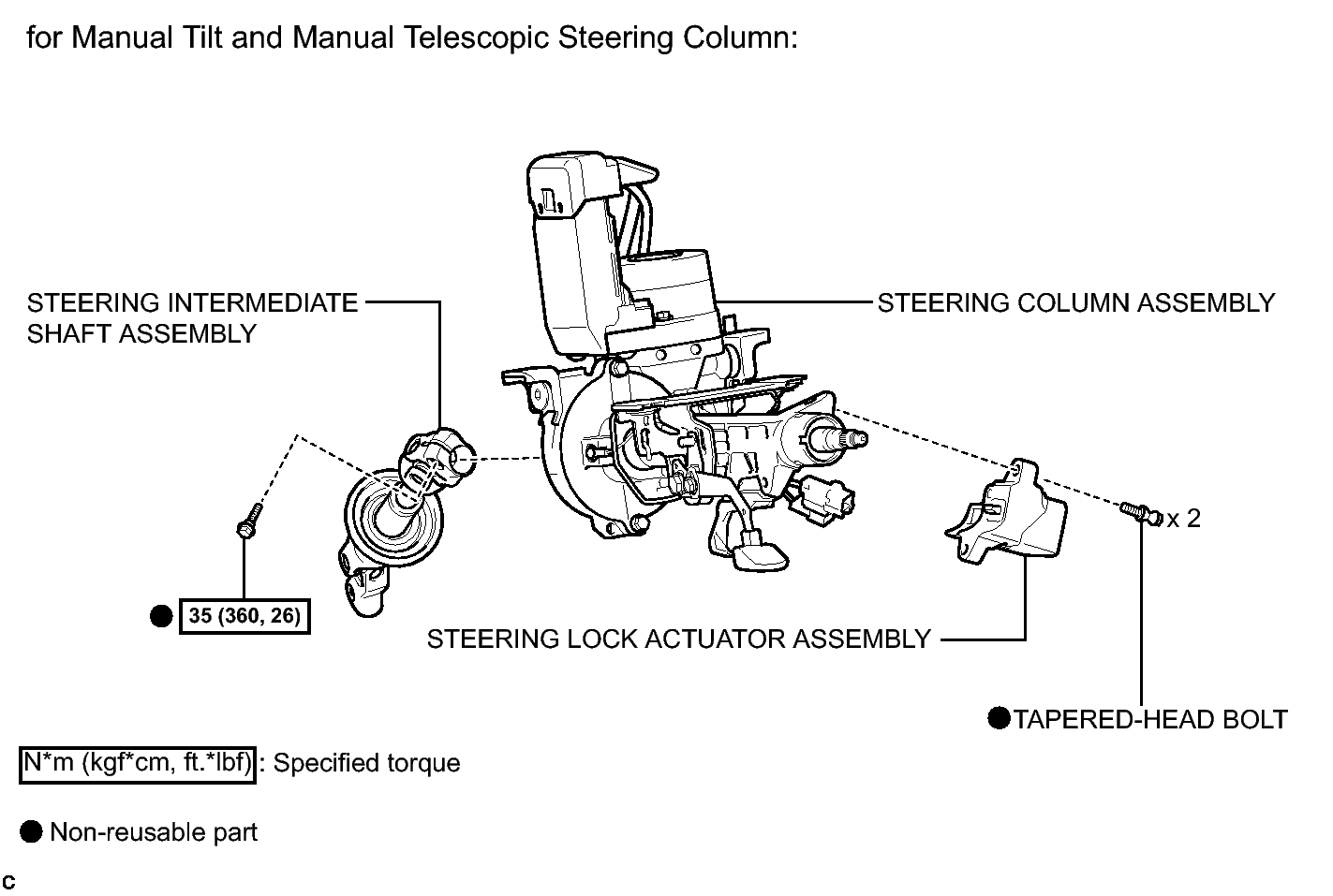

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (6 Of 9)
GTY407154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

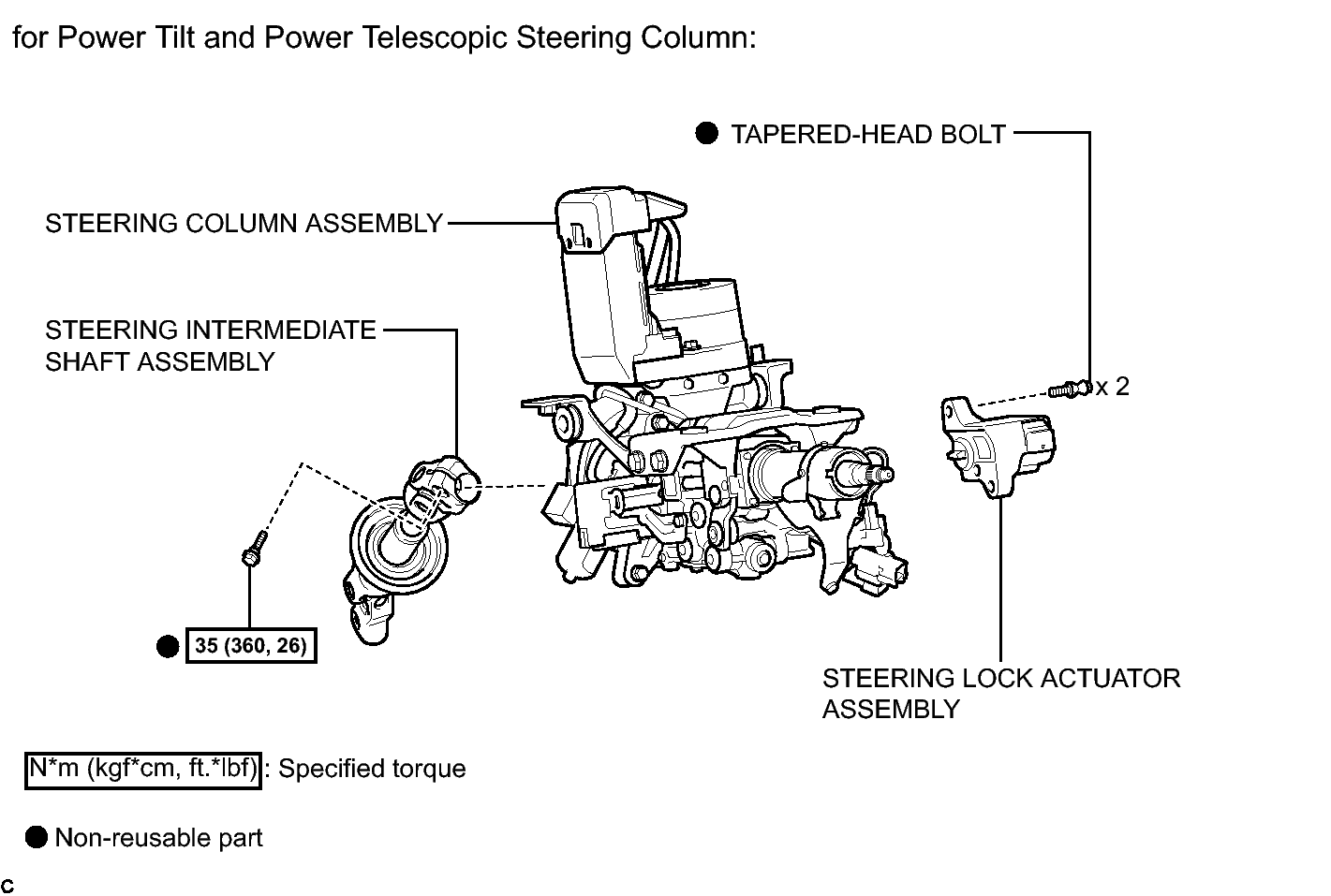

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (7 Of 9)
GTY419720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

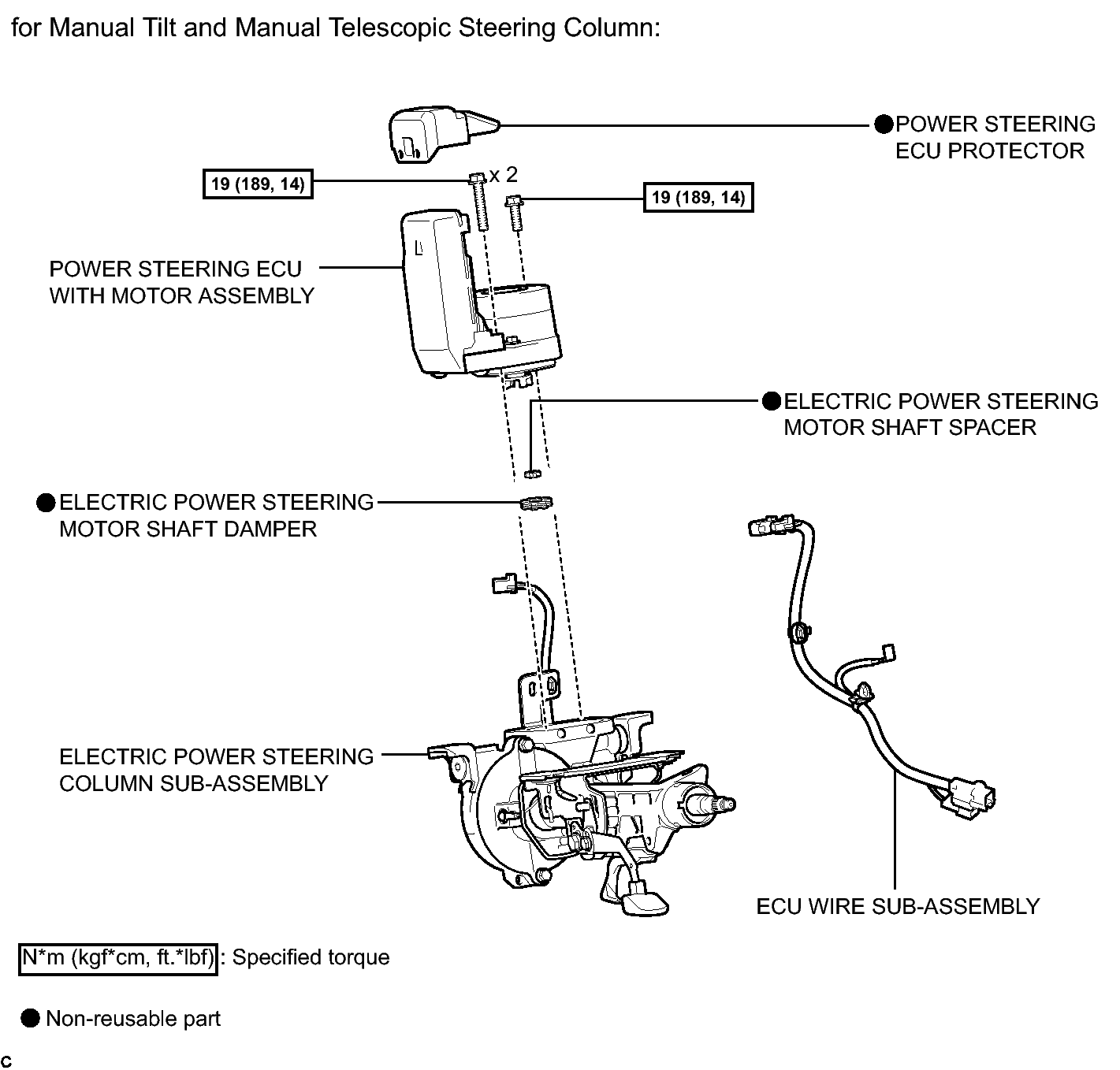

Fig 1: Identifying Steering Column Assembly (For Manual Tilt / Column) Replacement Components With Torque Specifications (8 Of 9)
GTY398663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

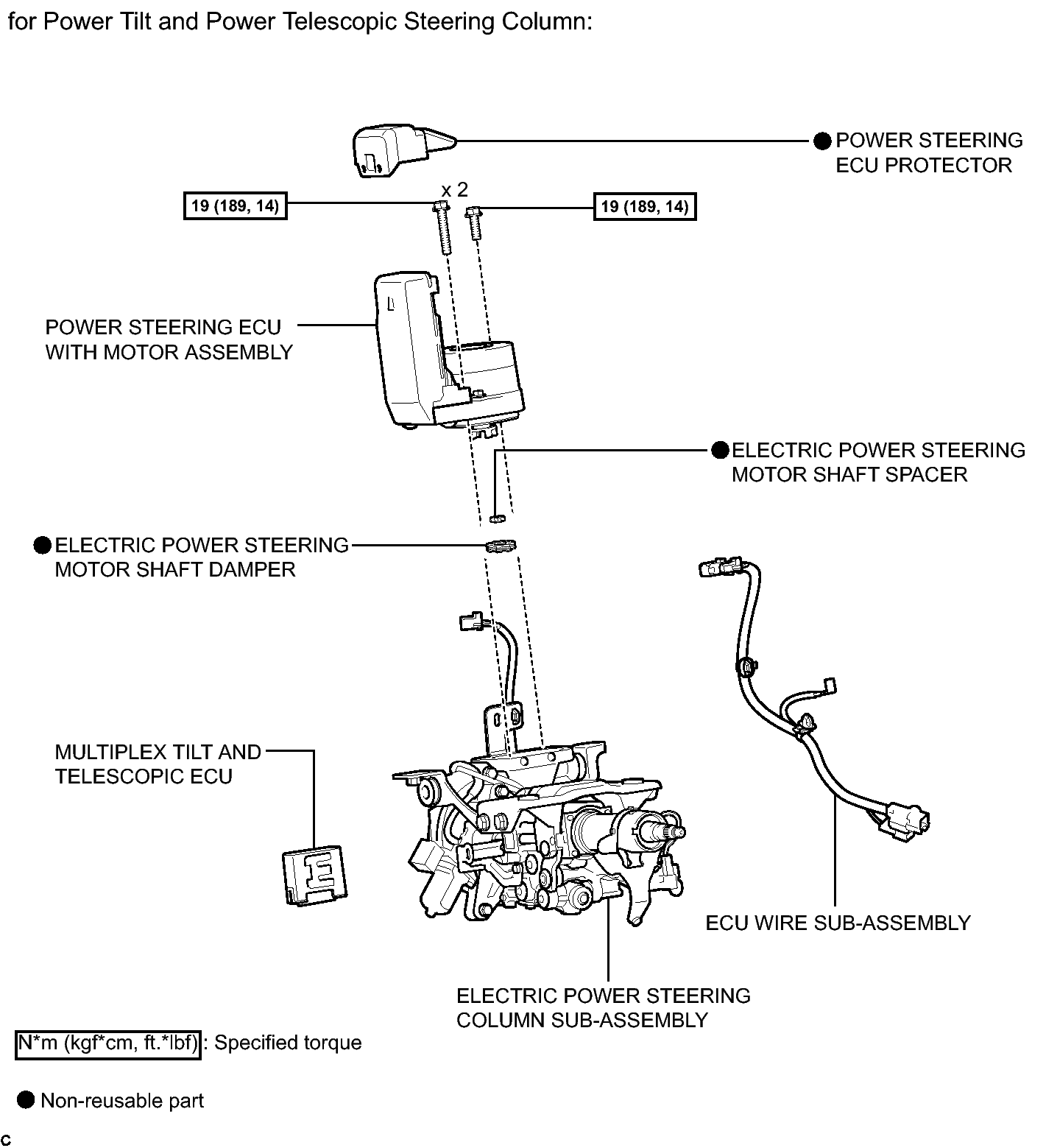

Fig 1: Identifying Steering Column Assembly (For Power Tilt / Column) Replacement Components With Torque Specifications (9 Of 9)
GTY419946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
