DTC B2782: Power Source Control ECU Malfunction: Wiring Diagram

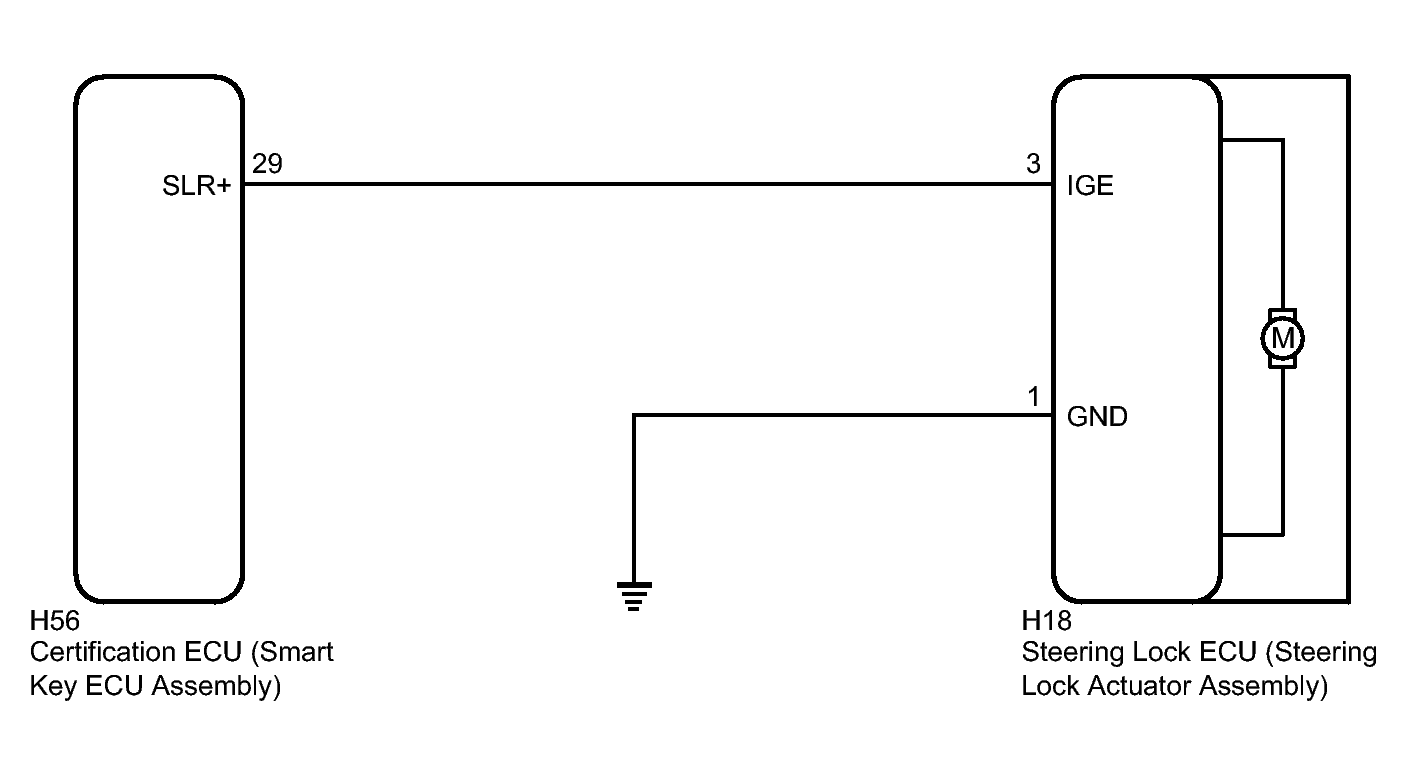

Fig 1: Certification ECU (Smart Key ECU Assembly) Wiring Diagram

GTY398075

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
