DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction: Wiring Diagram

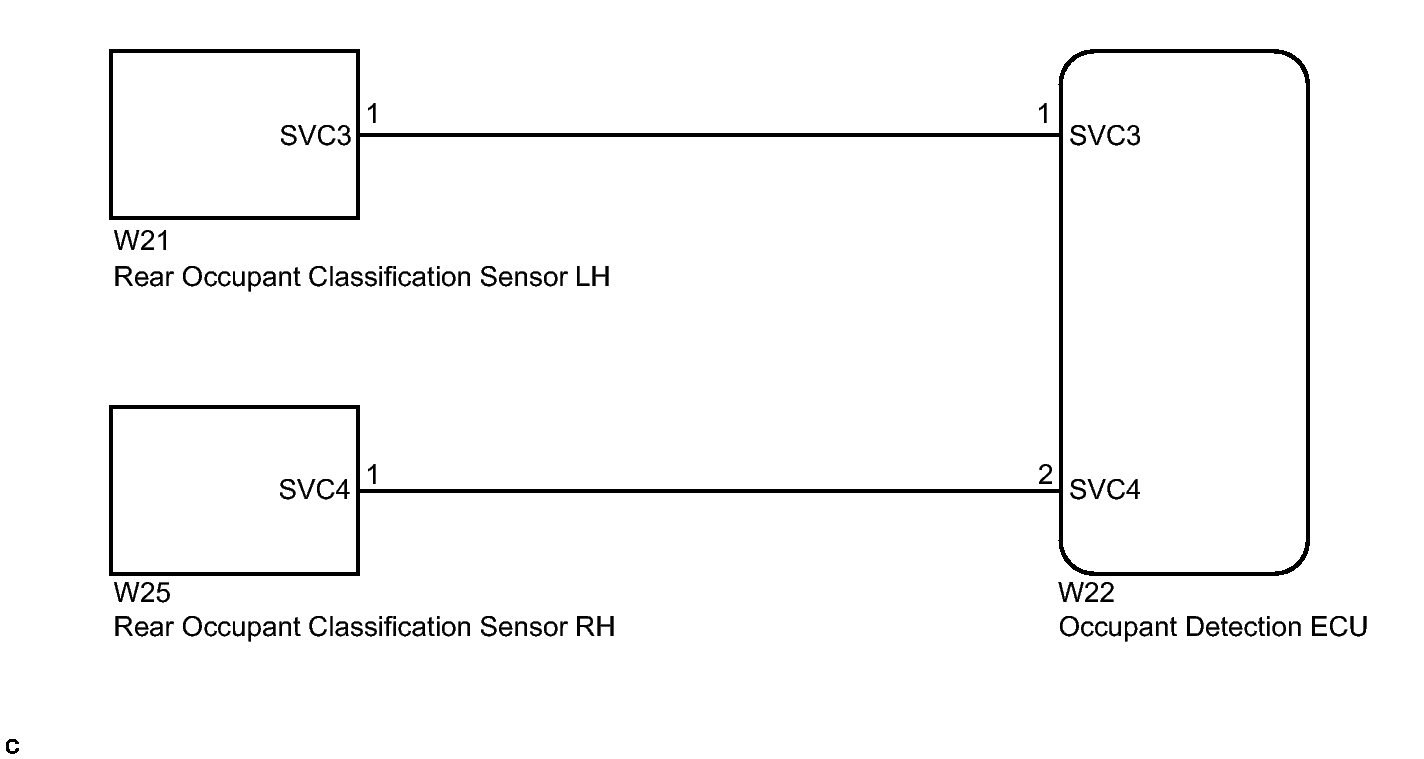

Fig 1: Occupant Classification Sensor Power Supply Circuit Wiring Diagram
GTY419070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
