Installation [06/2012 - ]

1. Install the front engine mounting insulator assembly with the 3 nuts.

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

2. Install the hole plug.
3. Connect the duty vacuum switching valve connector and 2 clamps.

1. Install the transverse engine mounting bracket with the 4 bolts.

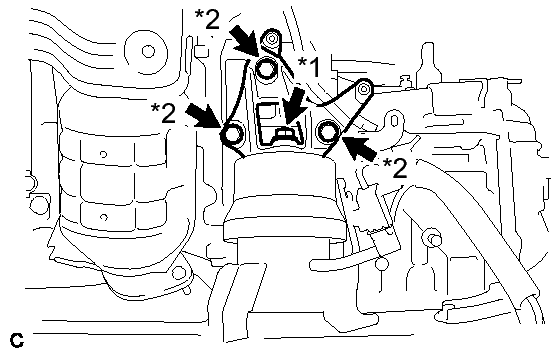

   Fig 1: Identifying Transverse Engine Mounting Bracket Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1	Bolt A
   *2	Bolt B

   Bolt A

   Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

   Bolt B

   Torque: 64 N*m (652 kgf*cm, 47 ft.*lbf)

2. Install the transmission oil cooler with the 2 bolts.

   Torque: 14 N*m (138 kgf*cm, 10 ft.*lbf)

Refer to INSTALLATION [06/2012 - ] .
